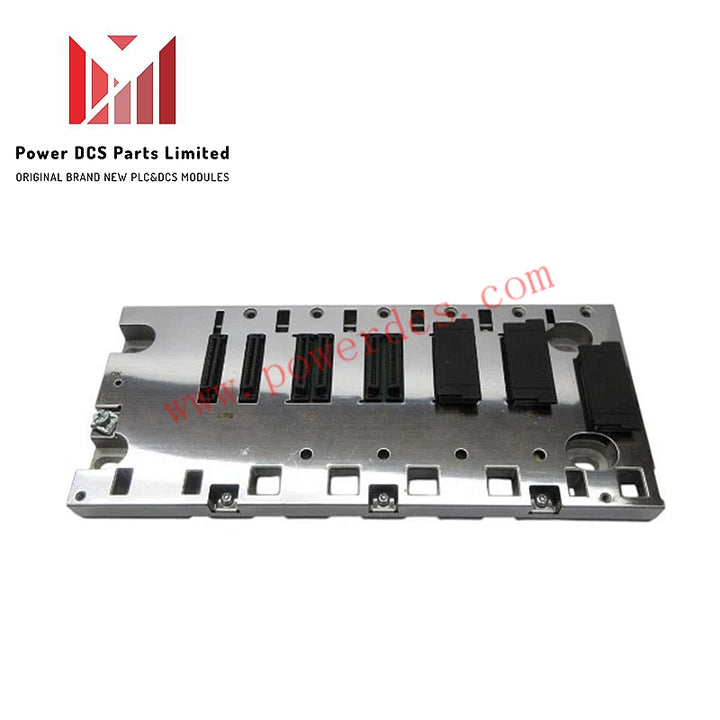

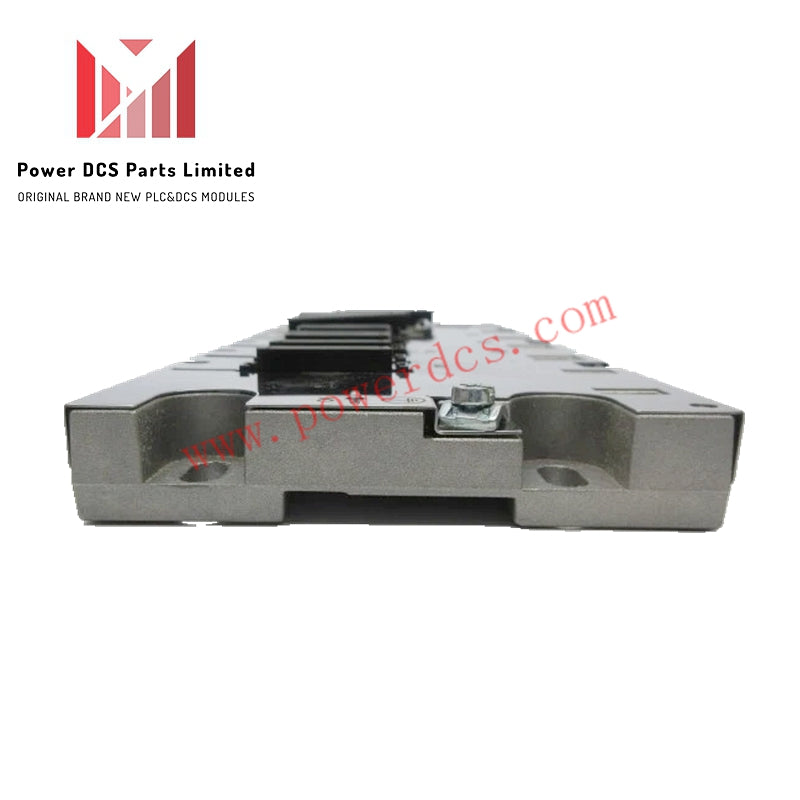

BMEXBP0400 | Schneider Ethernet Baseplate

Description

The BMEXBP0400 is a 4-slot Ethernet baseplate for the Modicon X80 series, designed to house various modules including I/O modules, processors, and special application modules. This component ensures efficient communication within the Modicon X80 system and offers flexible installation options.

Compatibility

• Product Compatibility :

• I/O Modules

• BMX Processor

• Special Application Modules

• BMXCPS Power Supply

• BME Processor

Electrical Specifications

• Power Consumption :

• 162 mW at 3.3 V DC

• 2.8W at 24V DC

• Current Consumption :

• 49 mA at 3.3 V DC

• 118 mA at 24 V DC

Physical Specifications

• Weight : 0.705 kg

• Dimensions : Compatible with 4-slot module configuration

• Mounting Options :

• 4 screws (diameter: 4.32–6.35 mm) for panel mounting

• 4 M6 screws for board mounting

• Clips for installation on 35 mm DIN rail

Environmental Specifications

• IP Protection Rating : IP20

• Operating Temperature : 0–60°C

• Relative Humidity : 5–95% without condensation

Reliability

• MTBF (Mean Time Between Failures) : 1,588,025 hours
