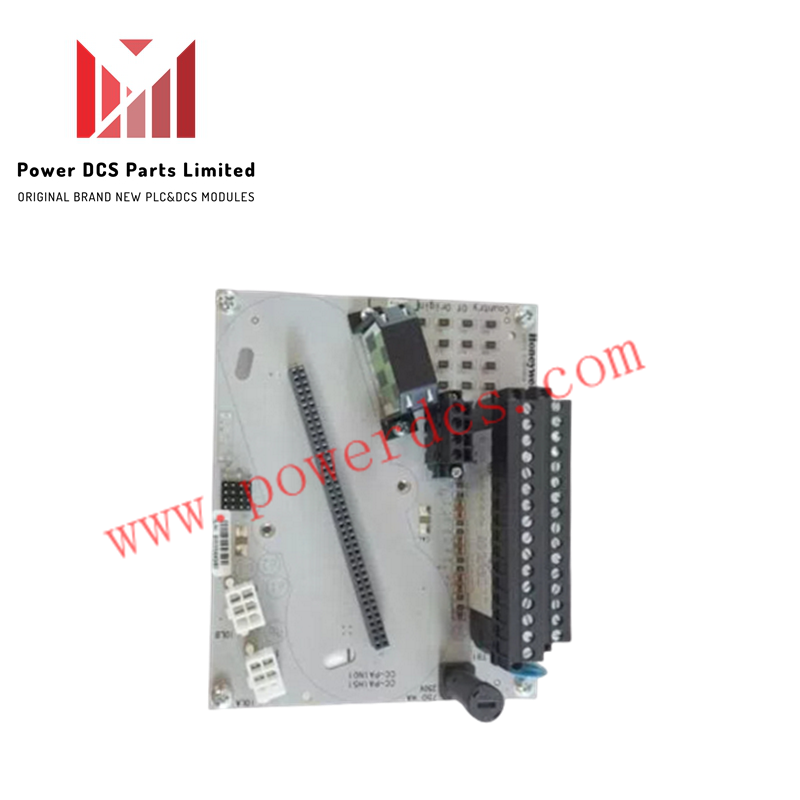

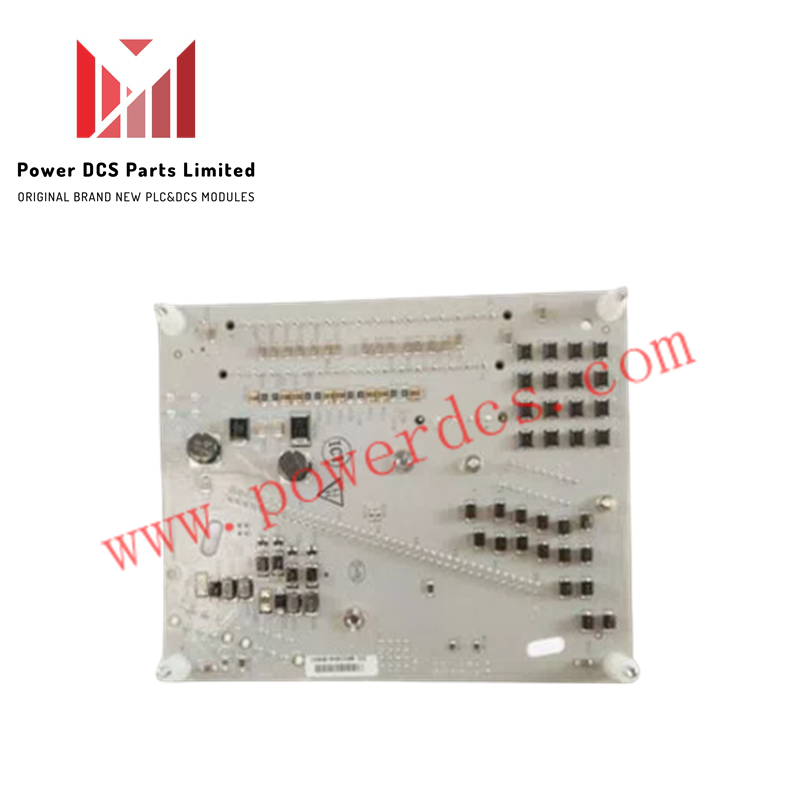

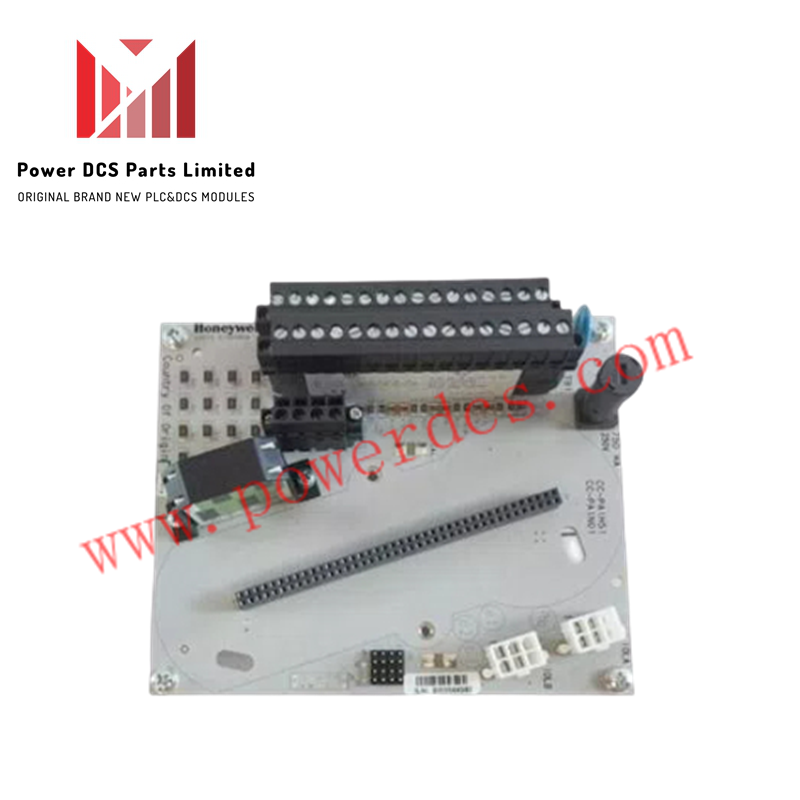

DC-TAIX51 | Honeywell | Analog Input Baseboard Module

The DC-TAIX51 is an analog input baseboard module manufactured by Honeywell for industrial automation and distributed control infrastructure. Designed to support process measurement loops, it provides physical mounting and terminal connectivity for analog input signal cards within control system chassis. This compact baseboard unit ensures secure signal routing and structural integration across system backplane configurations.

Physical Design and Installation

Engineered for cabinet backplane installation, the module features a compact form factor measuring 2.2 × 12.4 × 12.6 cm and a lightweight profile of 0.1 kg. The robust housing and terminal layout facilitate secure connection handling for multi-channel analog instrumentation loops while maintaining organized wiring paths inside industrial control enclosures.

Frequently Asked Questions

Q: What function does the Honeywell DC-TAIX51 module perform in a control system?

A: It serves as an analog input baseboard module, providing physical mounting and terminal routing for process measurement loops.

Q: What are the physical dimensions of the DC-TAIX51 baseboard?

A: The module measures 2.2 × 12.4 × 12.6 cm and has a net weight of 0.1 kg.
