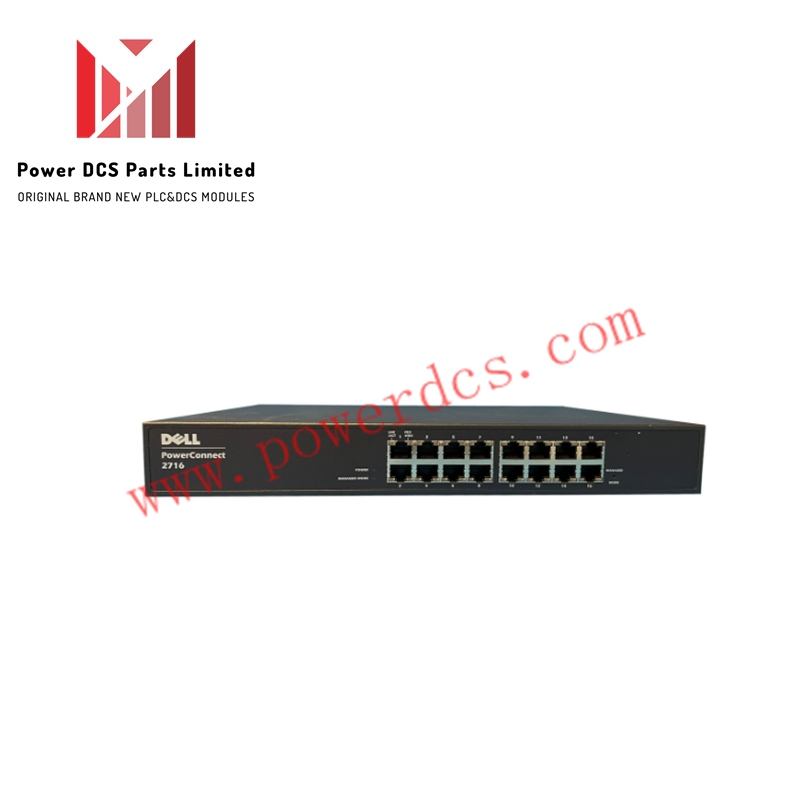

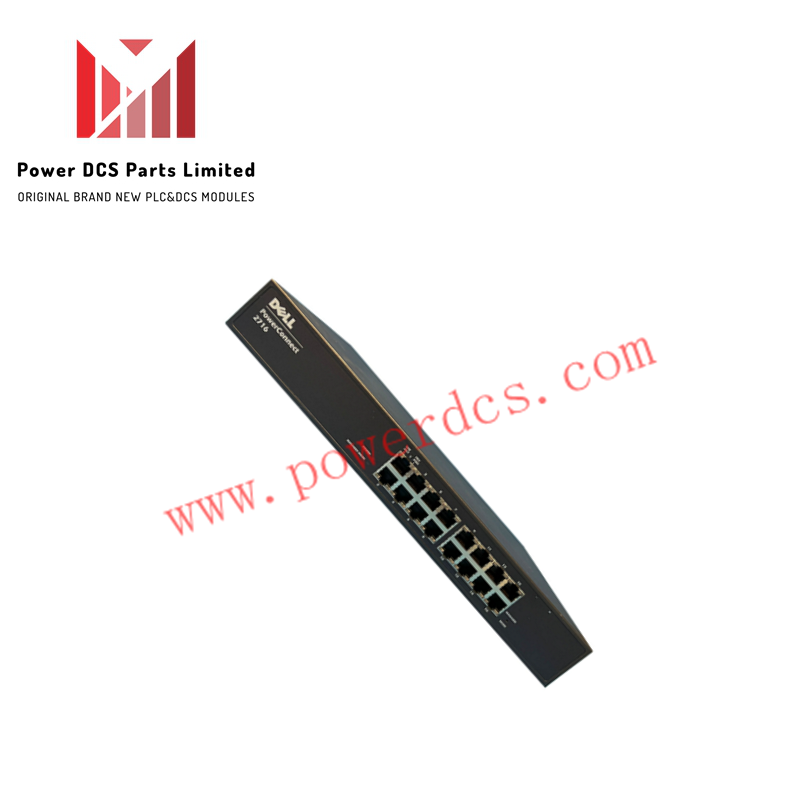

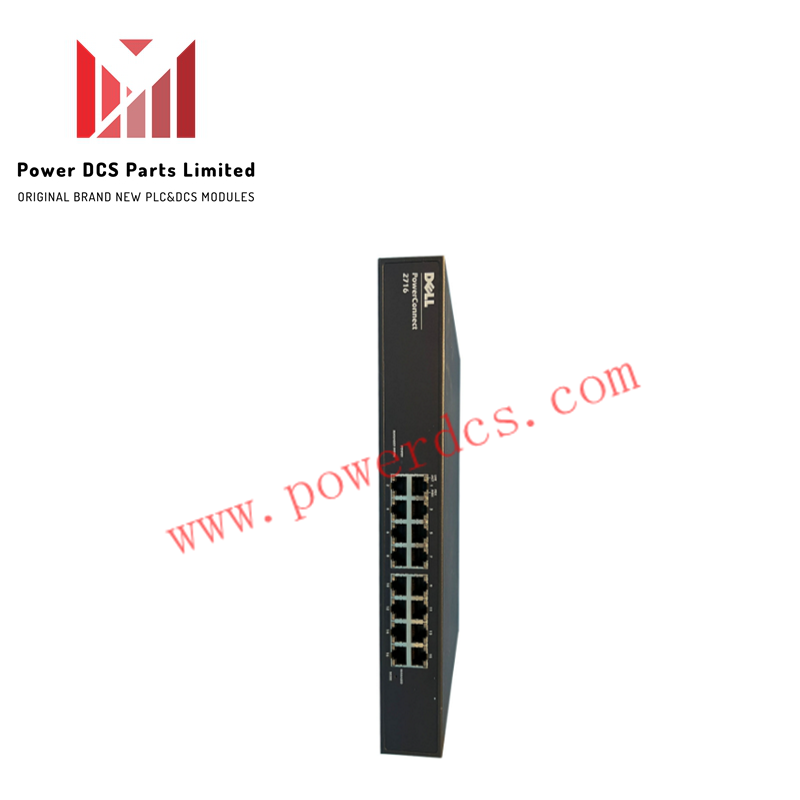

DELL POWERCONNECT 2716 16 Port Gigabit Switch

Description

The DELL PowerConnect 2716 is a 16-port unmanaged Gigabit Ethernet switch designed for small to medium-sized networks. It delivers high-speed connectivity with plug-and-play simplicity and energy-efficient performance.

Specifications

• Model Number: PowerConnect 2716

• Manufacturer: Dell Inc.

• Switch Type: Unmanaged Layer 2 Gigabit Ethernet switch

• Ports: 16 × 10/100/1000 Mbps RJ-45 ports

• Switching Capacity: 32 Gbps

• MAC Address Table: 8,000 entries

• Forwarding Rate: 23.8 Mpps

• Buffer Memory: 256 KB

• Power Supply: Internal, auto-ranging 100–240V AC

• Mounting Options: Desktop or 1U rack-mountable

• Dimensions: 440 mm × 170 mm × 44 mm

• Weight: Approx. 2.5 kg

• Operating Temperature: 0°C to 45°C

• Certifications: FCC Class A, CE, VCCI, UL

Features

• Plug-and-Play Setup: No configuration required for immediate deployment

• Auto-MDI/MDIX Support: Eliminates the need for crossover cables

• Energy Efficient: Reduces power consumption during low traffic periods

• Full-Duplex Operation: Maximizes throughput on each port

• Fanless Design: Silent operation ideal for office environments

• IEEE 802.3x Flow Control: Ensures reliable data transmission

• LED Indicators: Provide real-time port status and activity monitoring

• Flexible Deployment: Suitable for desktop or rack-mounted installations
