Discrete Output Module IC693MDL930 | GE Fanuc

Description

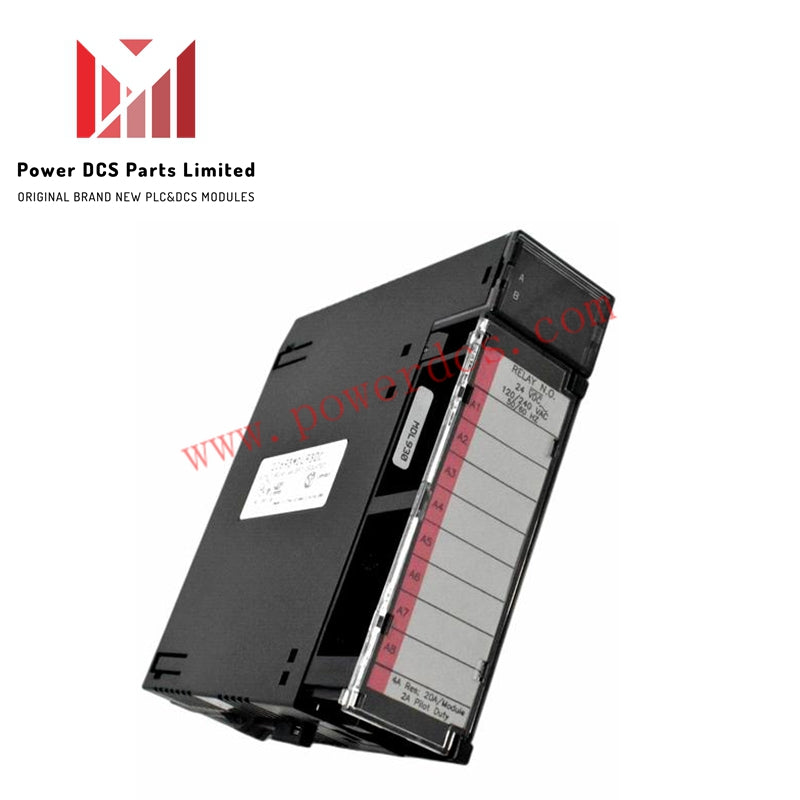

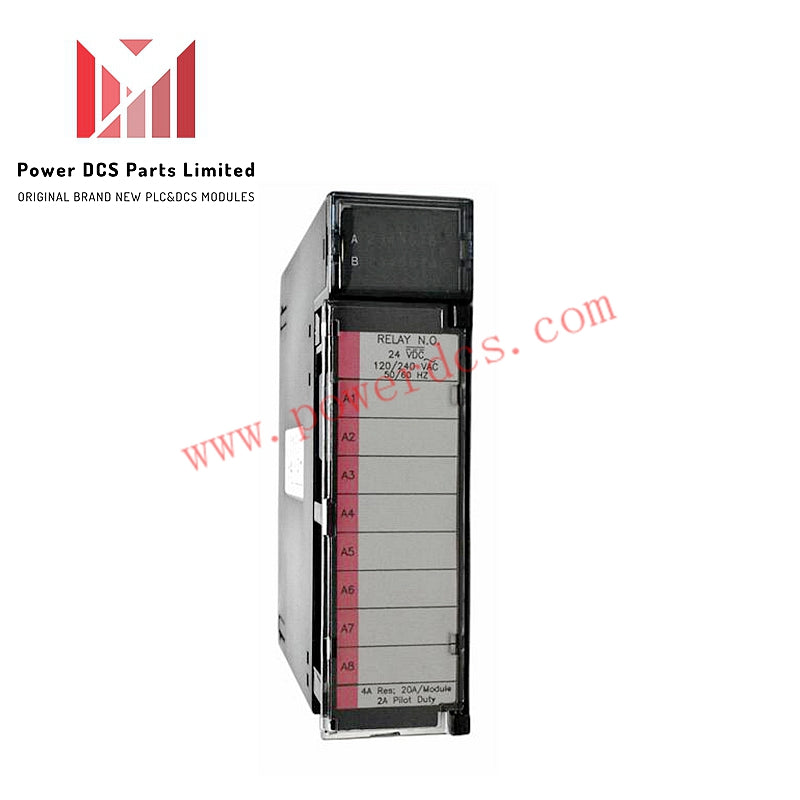

The IC693MDL930 is a discrete output module from GE Fanuc's Series 90-30. This relay output module provides eight isolated channels with a switching capacity of up to 4 Amps per output, designed to handle a variety of industrial control applications.

Specifications

• Manufacturer: GE Fanuc

• Series: Series 90-30

• Part Number: IC693MDL930

• Product Type: Digital I/O

• Relay Outputs: 8

• Output Voltage Range: 5 to 30 V DC, 5 to 250 V AC (50/60 Hz)

• Nominal Output Voltage: 24 V DC; 120 VAC / 240 VAC

• Maximum Load per Output: 4 A (resistive), 2 A (pilot duty)

• Maximum Output Current: 4 A (per point, resistive load); 2 A (pilot duty); 20 A (per module for UL installations)

• Maximum Inrush Current: 5 A

• Response Time: 15 ms

• Switching Frequency: 20 cycles per minute

• Operating Temperature Range: 0°C to 50°C

• Current Draw: 6 mA (from 5 V bus); 70 mA (from 24 V relay bus)

• Isolation: 1500 V between field side and logic side; 500 V between groups

• Contact Form: Form A (Normally Open)

• LED Indicators: Yes

• Fuses: No

• Minimum Load: 10 mA

• Operating Voltage: 5 to 30 V DC or 5 to 250 V AC

• Module Width: Single slot
