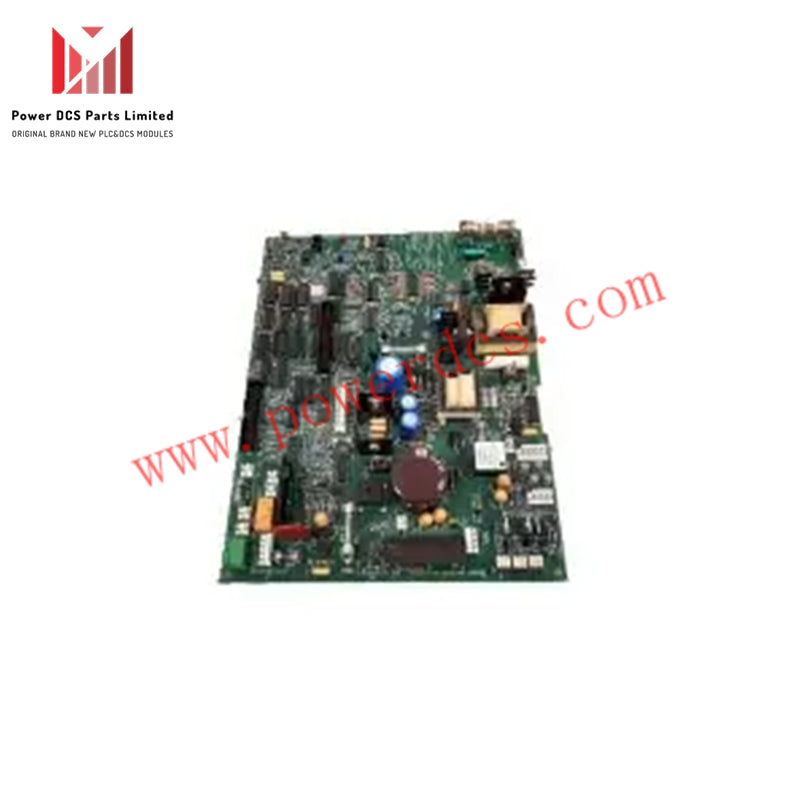

DS200IMCPG1CCA GE General Electric Printed Circuit Board

DS200IMCPG1C Technical Specifications

• Manufacturer: General Electric

• Series: Mark V DS200

• Part Number: DS200IMCPG1CCA

• Product Type: AC2000I Power Supply Interface Card

• Assembly Type: Normal Assembly

• Revision Quantity: 1 Revision

• Factory-Drilled Installation Holes: 4

• Shipping Weight: 1 lb

About the DS200IMCPG1CCA

The DS200IMCPG1C is a Power Supply Interface Board manufactured by General Electric, part of the Mark V Turbine Control System Series. It is designed for automated drive assemblies in gas, steam, and wind turbines.

This series is among the final GE Mark Series products to utilize the patented Speedtronic control system technology.

The DS200IMCPG1C is a revised version of the DS200IMCPG1 parent board, distinguished by its C-rated functional product revision, which brings enhanced functionality and reliability.

Hardware Features and Specifications

• Connects via cable to the DS200SDCC Drive Control Board at the 1PL connector

• Equipped with 8 fuses for overvoltage protection of components

• Features normal Mark V Series assembly and is domestically manufactured by GE

• Identified by the IMCP functional acronym and normal PCB protective coating style

• Classified within group one of the Mark V Series with a C-rated primary functional revision

• Internally supported by standard Mark V Series hardware components including diodes, resistors, and capacitors for voltage regulation and signal conditioning

• Coated with a thin, comprehensive conformal-style protective coating on the PCB for durability and reliability
