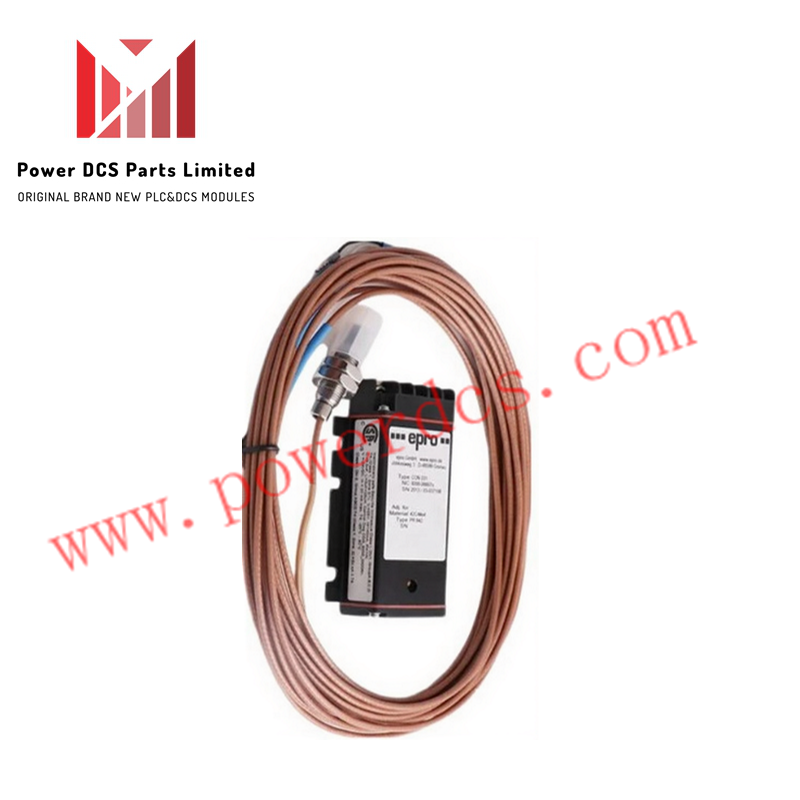

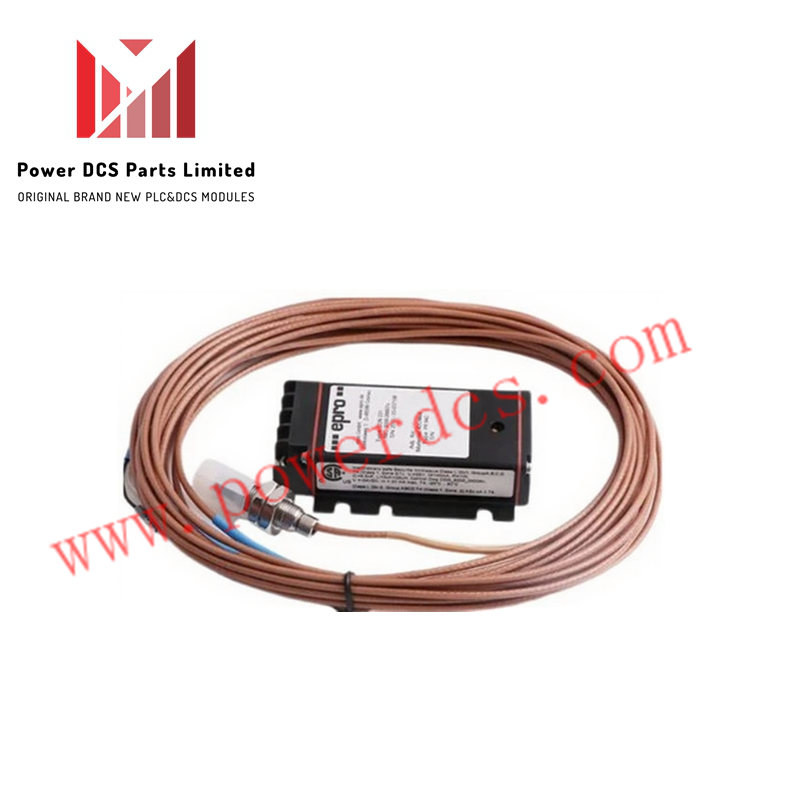

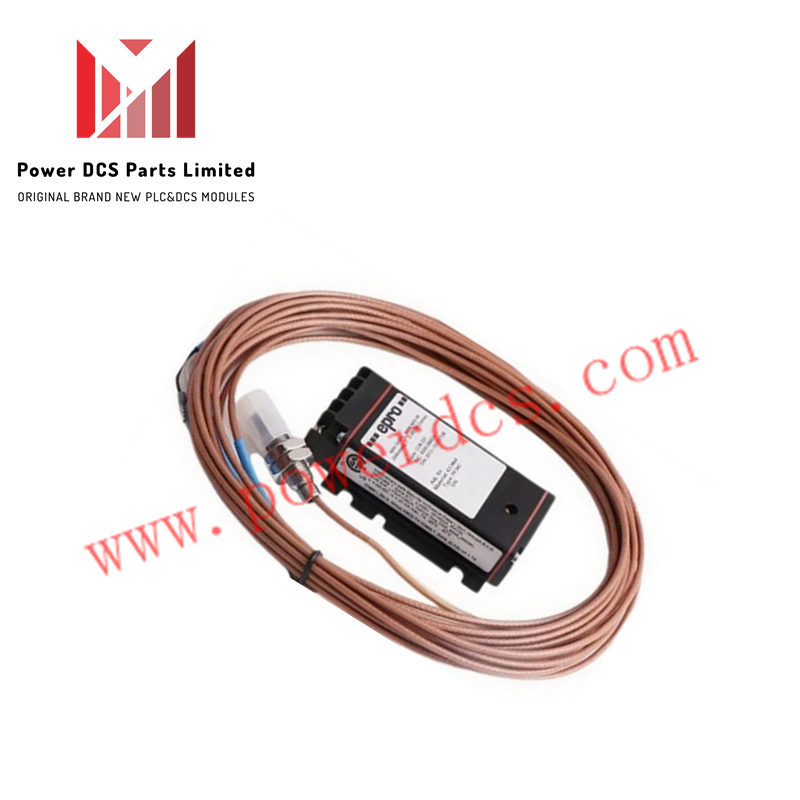

EMERSON CON021+PR6423/10R-010-CN Eddy Current Sensor

Description

The EMERSON CON021+PR6423/10R-010-CN is a high-performance eddy current sensor system used for dynamic displacement and vibration measurement in critical rotating equipment such as turbines, compressors, and pumps.

Specifications

• Manufacturer: Emerson

• Country of Origin: Germany

• Model: CON021+PR6423/10R-010-CN

• Type: Eddy current sensor system

• Sensor Diameter: 8 mm

• Linear Measurement Range: 2 mm (80 mils)

• Initial Air Gap: 0.5 mm (20 mils)

• Scale Factor: 8 V/mm (203.2 mV/mil) ±5%

• Target Material: Ferromagnetic steel (e.g., 42CrMo4)

• Minimum Shaft Diameter: 25 mm

• Protection Class: IP66

• Operating Temperature: Sensor: -35°C to +180°C; Cable: up to +150°C

• Deviation from Linearity: ±0.025 mm (±1 mil)

Features

• Non-Contact Measurement: Ideal for radial and axial shaft displacement without physical contact

• High Accuracy: Delivers precise readings with minimal deviation across wide temperature ranges

• Robust Design: Engineered for harsh industrial environments with high thermal and mechanical stress

• Modular Configuration: Combines PR6423 sensor with CON021 converter for flexible installation

• Wide Compatibility: Suitable for various turbomachinery including steam, gas, and hydro turbines

• Fast Response: Supports real-time monitoring for predictive maintenance

• Reliable Performance: Proven technology for continuous operation in critical applications
