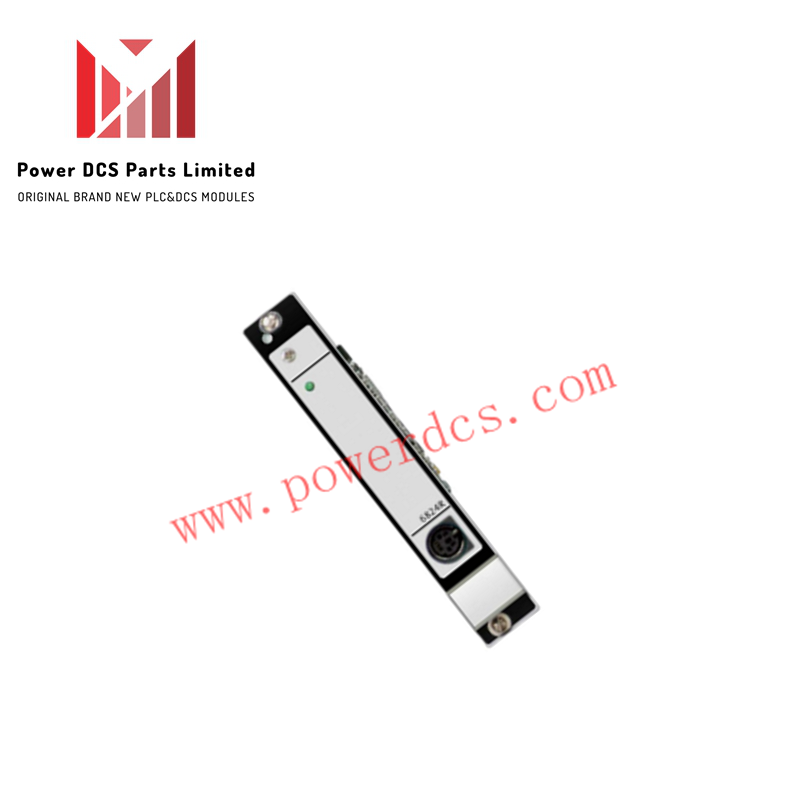

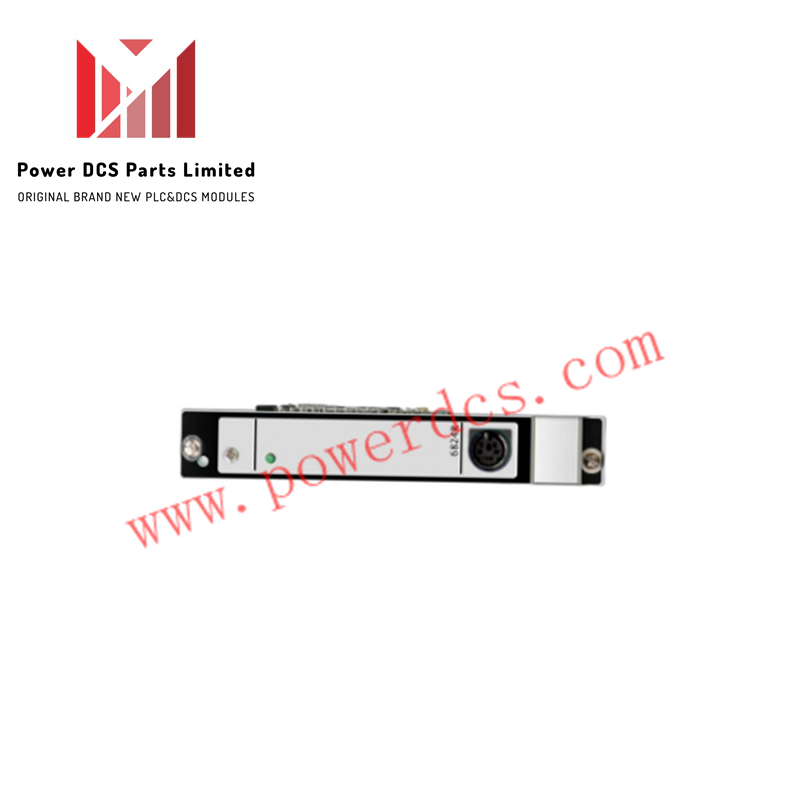

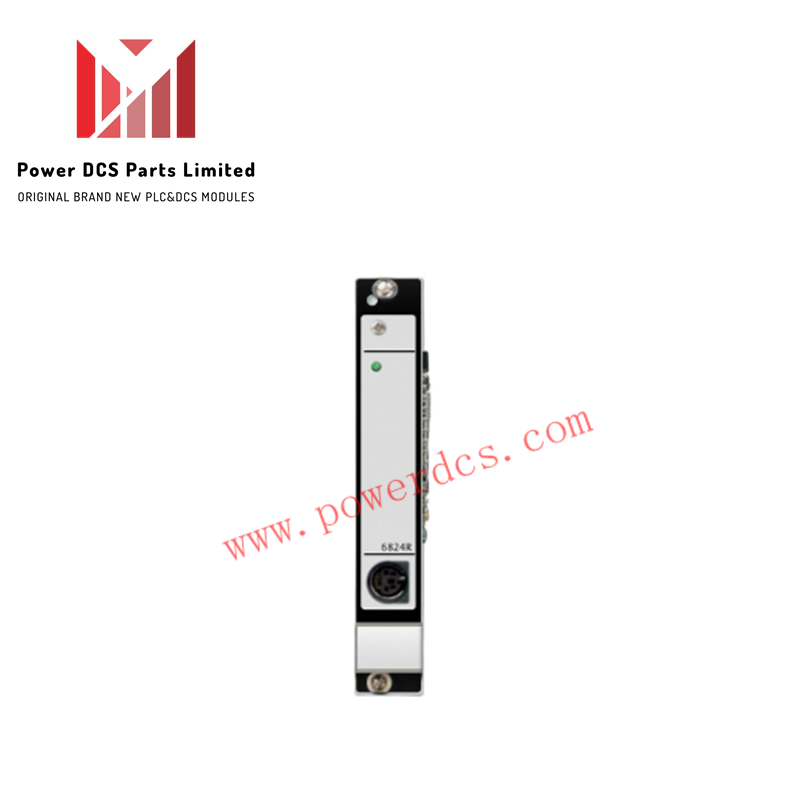

Emerson EPRO A6125 Case Seismic Vibration Monitor

Description

The A6125 Monitor is built for high-reliability vibration monitoring in industrial plants. It integrates with CSI 6500 systems to support API 670-compliant machinery protection for critical rotating equipment.

Specifications

• Model Number: A6125

• Dimensions: 16 cm × 16 cm × 12 cm

• Weight: 0.8 kg

• Input Voltage: 13–32 VDC

• Operating Temperature: 0°C to 65°C

• Storage Temperature: –40°C to 70°C

• Relative Humidity: 5% to 95%, non-condensing

• Vibration Resistance: IEC 68-2 Part 6 compliant

  • 0.15 mm (10–55 Hz)

  • 19.6 mm/s (55–150 Hz)

Features

• Dual-Channel Monitoring: Supports simultaneous vibration input from two accelerometers

• API 670 Compliance: Meets global standards for machinery protection systems

• Hot-Swappable Design: Enables module replacement without interrupting system operation

• Buffered Outputs: Includes both 0/4–20 mA and 0–10 V signal outputs

• Continuous Monitoring: Ensures uninterrupted diagnostics for rotating assets

• Sensor Compatibility: Works with temperature sensors and vibration cables

• Versatile Applications: Suitable for turbines, compressors, and hydraulic machinery
