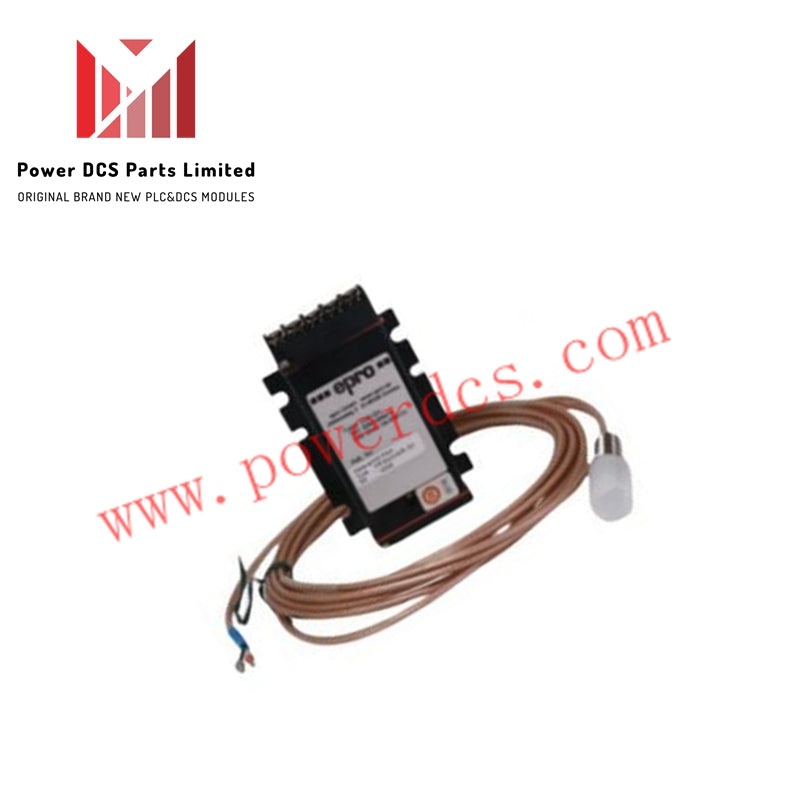

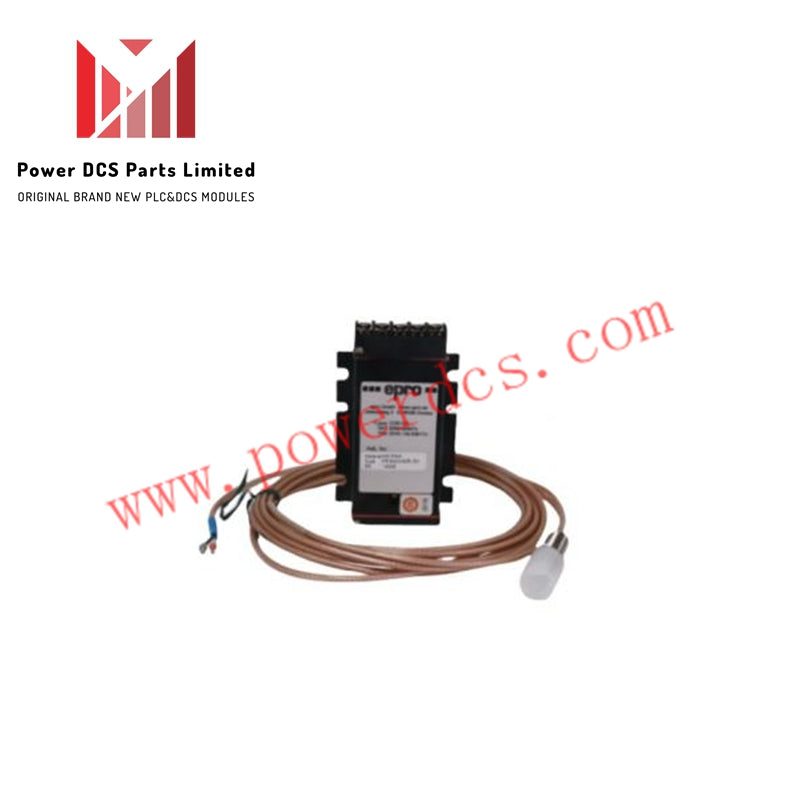

EMERSON EPRO CON031+PR6423/000-101 Eddy Current Sensor

Description

The EMERSON EPRO CON031+PR6423/000-101 is a precision vibration sensor system manufactured in Germany. It combines the PR6423 probe with the CON031 converter for accurate shaft vibration and position measurements in industrial equipment.

Specifications

• Manufacturer: Emerson

• Country of Origin: Germany

• Model: CON031+PR6423/000-101

• Type: Eddy current sensor system

• Sensor Diameter: 8 mm

• Measurement Range: 2 mm (80 mils)

• Initial Gap Setting: 0.5 mm (20 mils)

• Scale Factor: 8 V/mm (203.2 mV/mil) ±5%

• Target Material: Ferromagnetic steel (e.g., 42CrMo4)

• Minimum Shaft Diameter: 25 mm

• Protection Class: IP66

• Operating Temperature: Sensor: -35°C to +180°C; Cable: up to +150°C

• Linearity Deviation: ±0.025 mm (±1 mil)

Features

• Non-Contact Monitoring: Measures shaft vibration and displacement without physical contact

• High Accuracy: Delivers precise readings with minimal deviation across wide operating conditions

• Modular Design: Combines probe and converter for flexible installation and maintenance

• Industrial Durability: Withstands high temperature, vibration, and harsh environments

• Real-Time Diagnostics: Enables early fault detection and predictive maintenance

• Wide Compatibility: Suitable for turbines, compressors, and other rotating equipment

• Reliable Performance:
