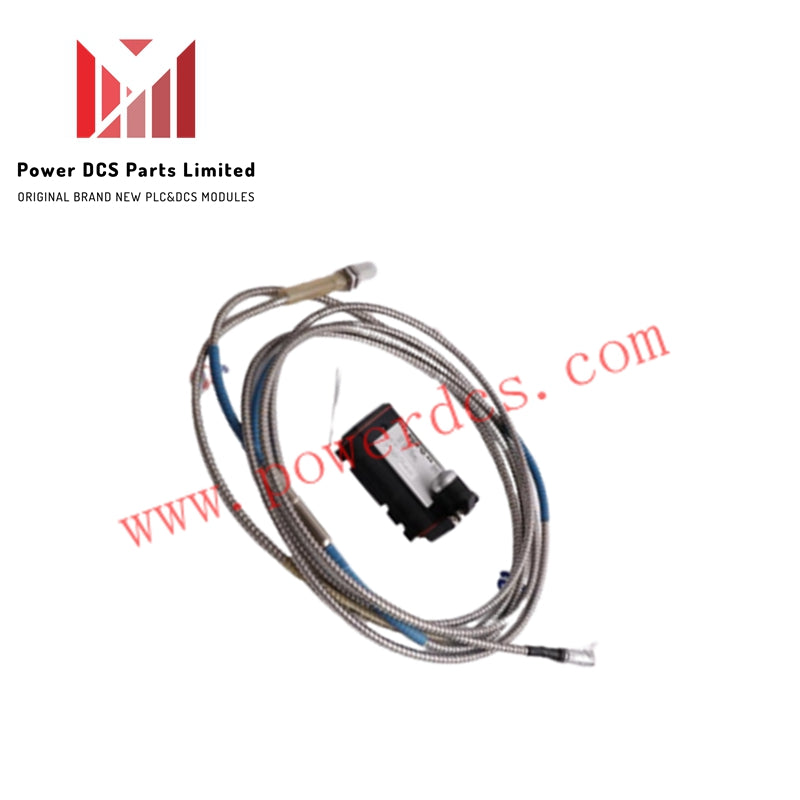

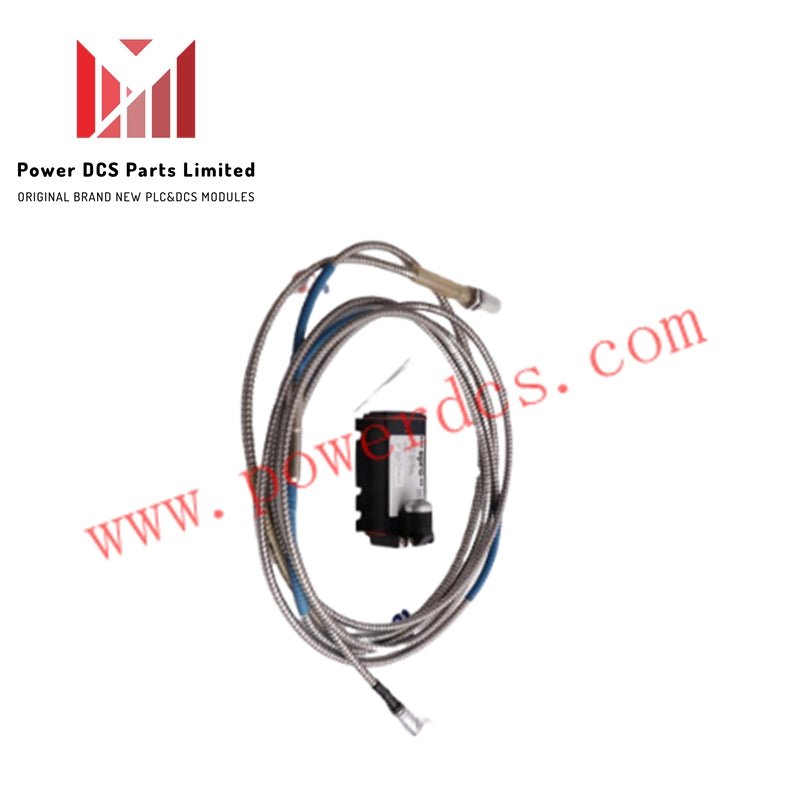

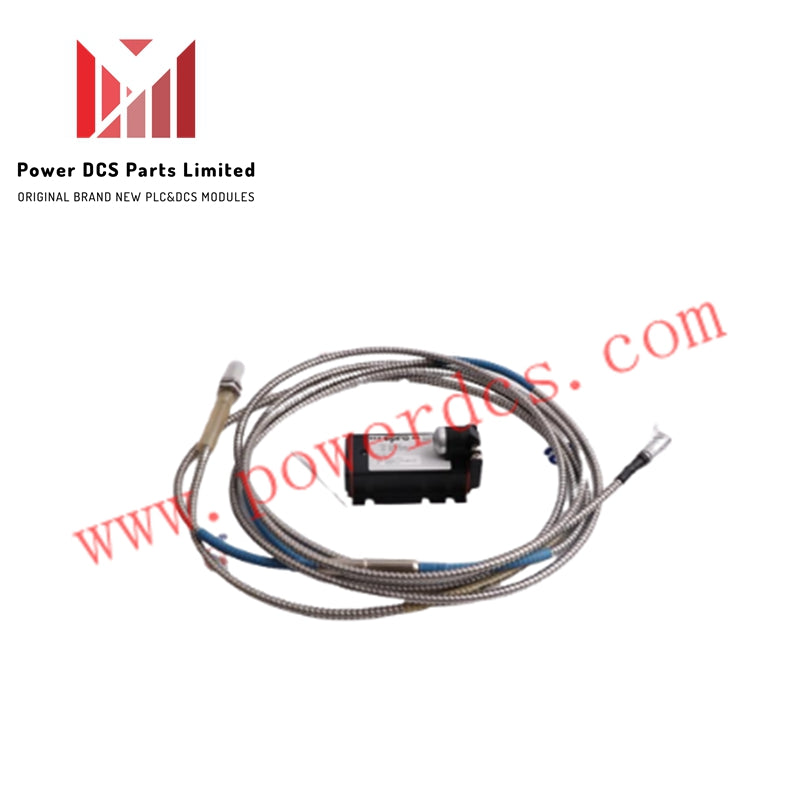

Emerson EPRO EPRO CON021+PR6423/010-000-CN Vibration Monitoring System

Description

The Emerson EPRO CON021+PR6423/010-000-CN is a high-sensitivity vibration monitoring system designed for critical turbomachinery applications. It provides precise displacement and vibration measurements to support predictive maintenance and equipment protection.

Specifications

• Manufacturer: Emerson

• Model Number: CON021+PR6423/010-000-CN

• Product Type: Vibration Monitoring System

• Sensor Type: Eddy current displacement sensor

• Measurement Range: Up to 2 mm (peak-to-peak)

• Frequency Range: 10 Hz – 1000 Hz or 4 Hz – 1000 Hz (depending on configuration)

• Initial Air Gap: 0.5 mm

• Scale Factor: 8 V/mm (±5%)

• Output Signal: Voltage proportional to vibration velocity

• Operating Temperature: Up to 200°C

• Protection Level: IP55 / IP65

• Dimensions: Approx. 100 × 200 × 300 mm

• Weight: 3 kg

• Country of Origin: China

Features

• High Sensitivity: Accurately detects radial and axial shaft vibration, position, and speed

• Wide Frequency Range: Suitable for various rotating machinery including turbines, compressors, and pumps

• Robust Design: Withstands harsh industrial environments with high temperature and contamination resistance

• Modular Configuration: Compatible with MMS 6000 and MMS 3000 monitoring systems

• Explosion Protection: Supports installation in hazardous areas (Zone 1)

• Easy Integration: Provides reliable signal output for control and diagnostic systems
