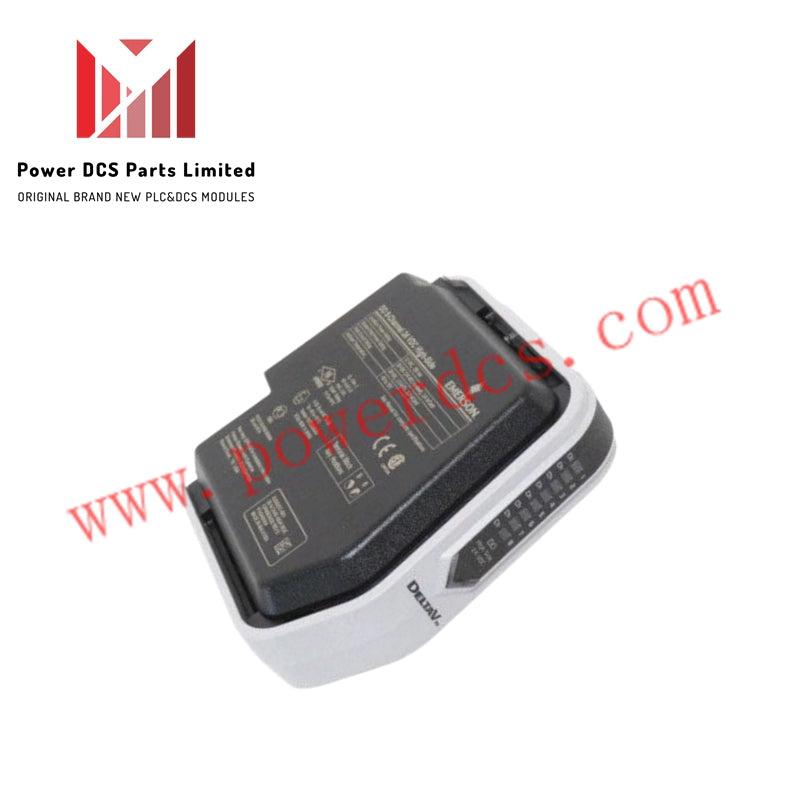

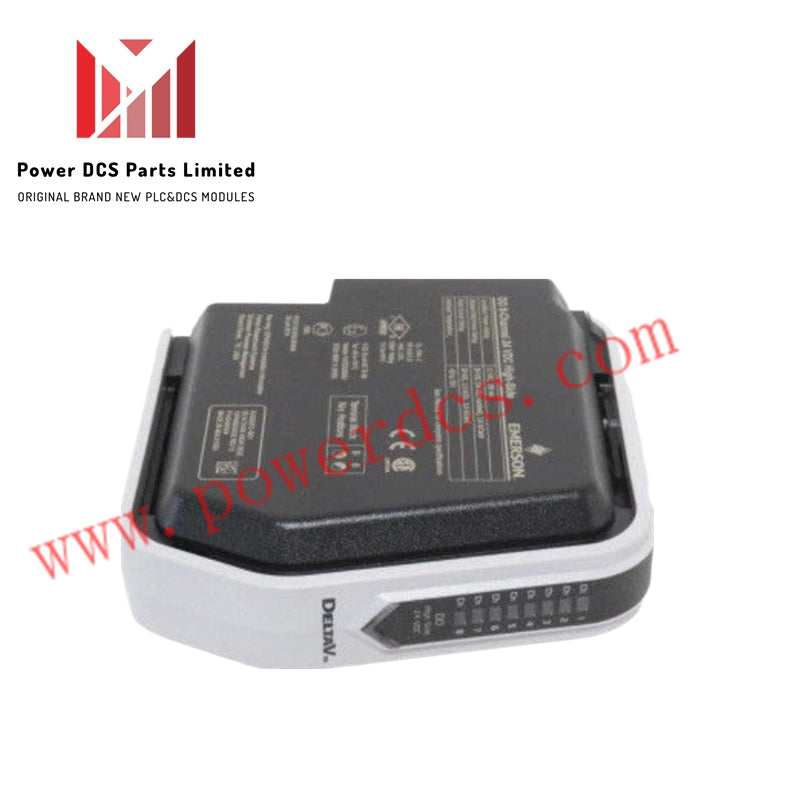

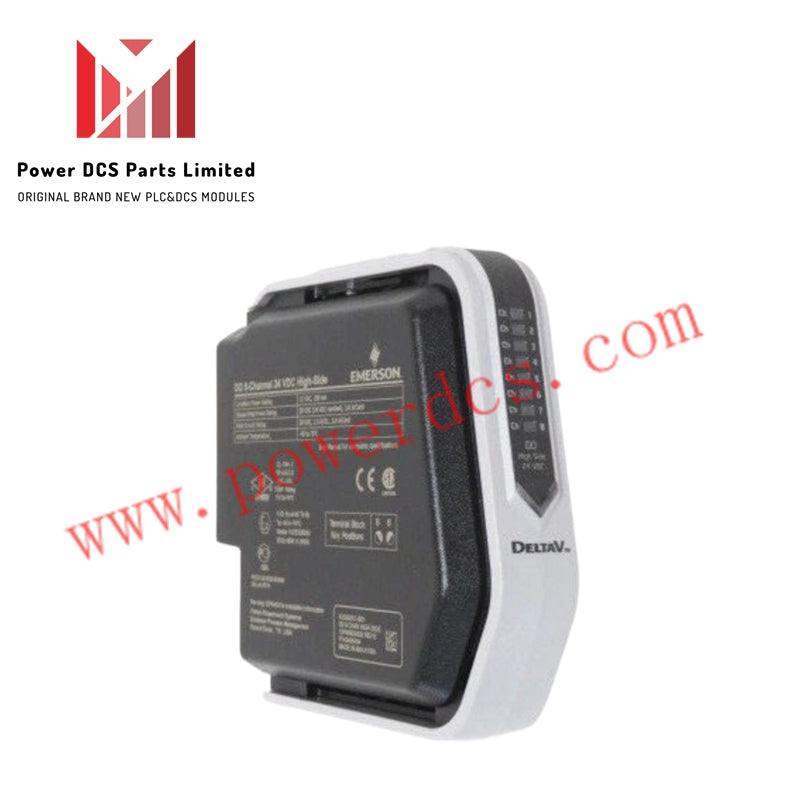

EMERSON KJ3202X1-BK1 24 VDC High-Side Digital Output Card

Description

The EMERSON KJ3202X1-BK1 is a rugged digital output module designed for DeltaV S-series systems. It delivers high-side switching for field devices in hazardous and demanding industrial environments.

Specifications

• Manufacturer: Emerson

• Country of Origin: USA

• Model: KJ3202X1-BK1

• Type: 8-channel high-side digital output card

• Output Voltage: 24 VDC

• Output Current: 1 A per channel, 3 A total per card

• Local Bus Power: 12 VDC at 150 mA

• Bussed Field Power: 30 VDC at 3 A

• Operating Temperature: -40°C to +70°C

• Shock Resistance: 10 g, ½ sinewave for 11 ms

• Vibration Resistance: 1 mm peak-to-peak (2–13.2 Hz), 0.7 g (13.2–150 Hz)

• Environmental Rating: ISA-S71.04 Class G3 airborne contaminants

Features

• High-Side Switching: Controls solenoids, relays, and indicators with reliable output isolation

• Compact Design: Fits seamlessly into DeltaV S-series architecture

• Hot-Swappable: Enables module replacement without system shutdown

• Industrial Durability: Withstands harsh conditions including vibration and temperature extremes

• Diagnostic Feedback: Provides per-channel fault and status indication

• Hazardous Area Compliance: Certified for use in explosive atmospheres

• Efficient Wiring: Compatible with keyed terminal blocks for secure connections
