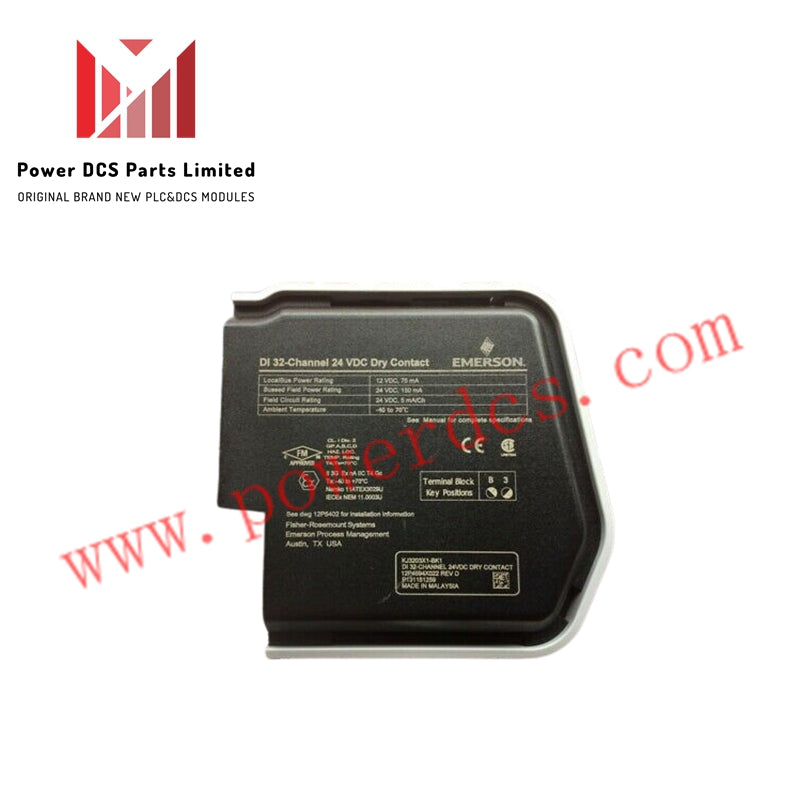

EMERSON KJ3203X1-BK1 Discrete Input Card

Description

The EMERSON KJ3203X1-BK1 is a high-density discrete input module for DeltaV S-series systems, optimized for capturing dry contact signals from field devices in demanding industrial environments.

Specifications

• Manufacturer: Emerson

• Country of Origin: USA

• Model: KJ3203X1-BK1

• Type: Discrete input card

• Input Channels: 32 independent channels

• Input Voltage: 24 VDC dry contact

• Local Bus Power: 12 VDC at 75 mA

• Bussed Field Power: 24 VDC at 150 mA

• Input Current: 5 mA per channel

• Operating Temperature: -40°C to +70°C

• Shock Resistance: 10 g, ½ sinewave for 11 ms

• Vibration Resistance: 1 mm peak-to-peak (2–13.2 Hz), 0.7 g (13.2–150 Hz)

• Environmental Rating: ISA-S71.04 Class G3 airborne contaminants

Features

• High Channel Density: 32 inputs for efficient cabinet space utilization

• Dry Contact Detection: Ideal for switches, pushbuttons, and relay contacts

• Fast Response: Input scan time under 1 ms for real-time monitoring

• Hot-Swappable: Enables module replacement without system shutdown

• Robust Design: Withstands industrial vibration and temperature extremes

• DeltaV Integration: Seamless operation within Emerson’s DeltaV S-series architecture

• Status Indication: Provides per-channel diagnostics for quick fault identification
