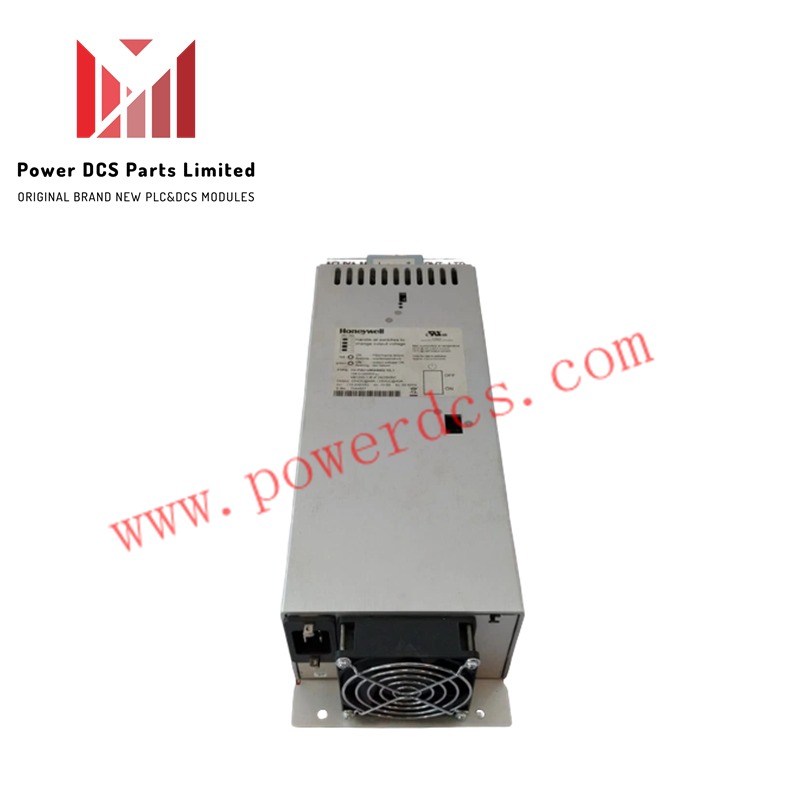

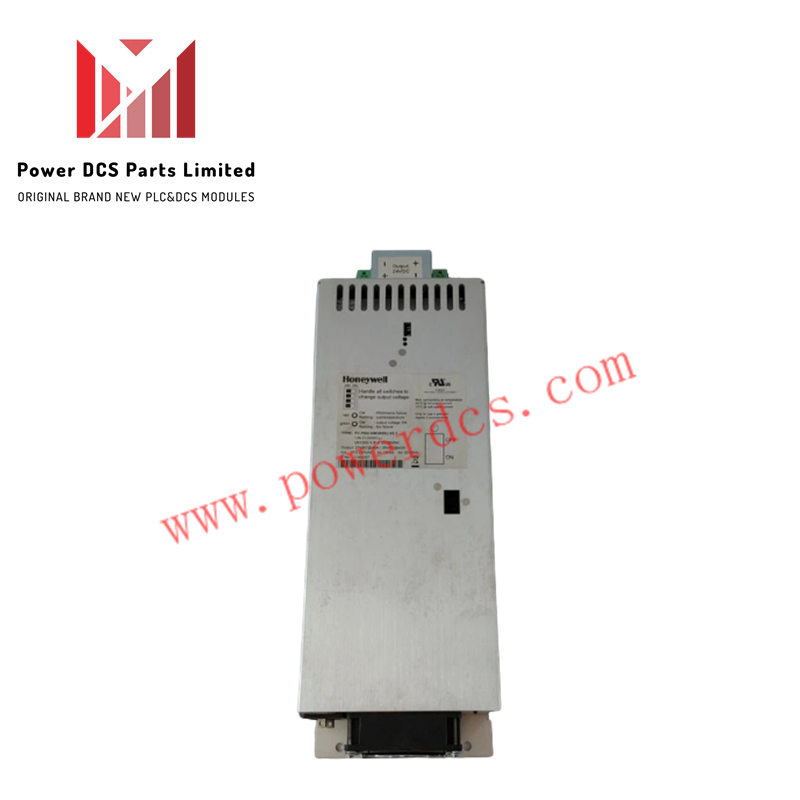

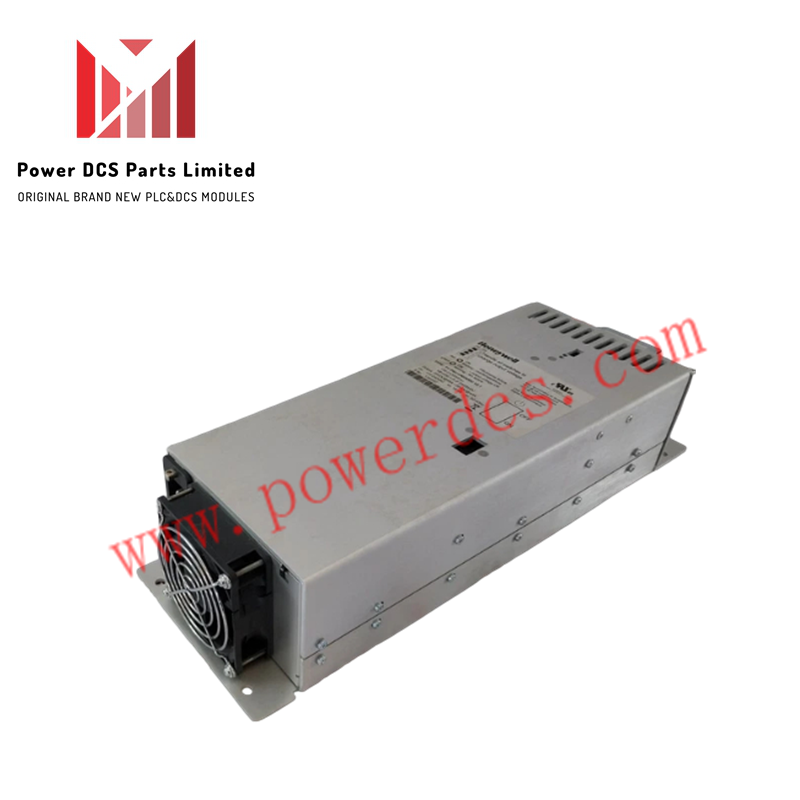

FC-PSU-UNI2450U V2.1 Honeywell Power Supply Module

Configured for high-capacity 24 VDC power generation in Safety Manager systems, the Honeywell FC-PSU-UNI2450U V2.1 (FC-PSU-UNI2450U Power Supply Module) provides direct physical/electrical execution.

Hardware Specifications

4-20 mA HART Loop Protocol & Channel-to-Channel Isolation

Engineered for process control and DCS safety architecture, the module converts 115/230 VAC mains power into a regulated 24 VDC output bus delivering up to 50 A at >= 88% efficiency. Integrated channel-to-channel isolation across its 8 safety-related output channels prevents electrical noise and ground loops from disturbing sensitive 4-20 mA HART analog loops and digital I/O lines. Onboard hardware-based fault detection monitors internal rails, triggering DBM flashing indicators and system flags while executing a default 4320-minute (72-hour) second fault timer to guarantee uninterrupted safe state logic operations.

Frequently Asked Questions

Q: How does the hardware-based fault detection mechanism signal power delivery anomalies?

A: Upon detecting a rail deviation or hardware fault, the module activates local DBM flashing indicators and generates system-level flag alerts across its Serial port and Ethernet interfaces to signal maintenance diagnostics.

Q: What is the function of the default 4320-minute second fault timer?

A: The 4320-minute (72-hour) second fault timer sets the configurable fault tolerance window between an initial supply anomaly and a secondary critical system response, permitting online maintenance without tripping the safety system.

Field Installation Guidelines

• Isolate all 115/230 VAC mains power sources prior to landing or removing AC input supply wires on the terminal block.
• Secure heavy-gauge copper conductors to the 24 VDC output bus terminals to handle up to 50 A continuous current without excessive thermal dissipation.
• Connect the protective earth (PE) terminal directly to the enclosure main grounding bar to maintain safe isolation and shield against industrial electromagnetic noise.
• Ensure minimum vertical air clearance around the module housing inside the cabinet to promote convective cooling and maintain maximum 88% conversion efficiency.
• Connect Serial or Ethernet diagnostic cables to designated system monitoring ports, keeping data lines segregated from AC mains supply lines.
