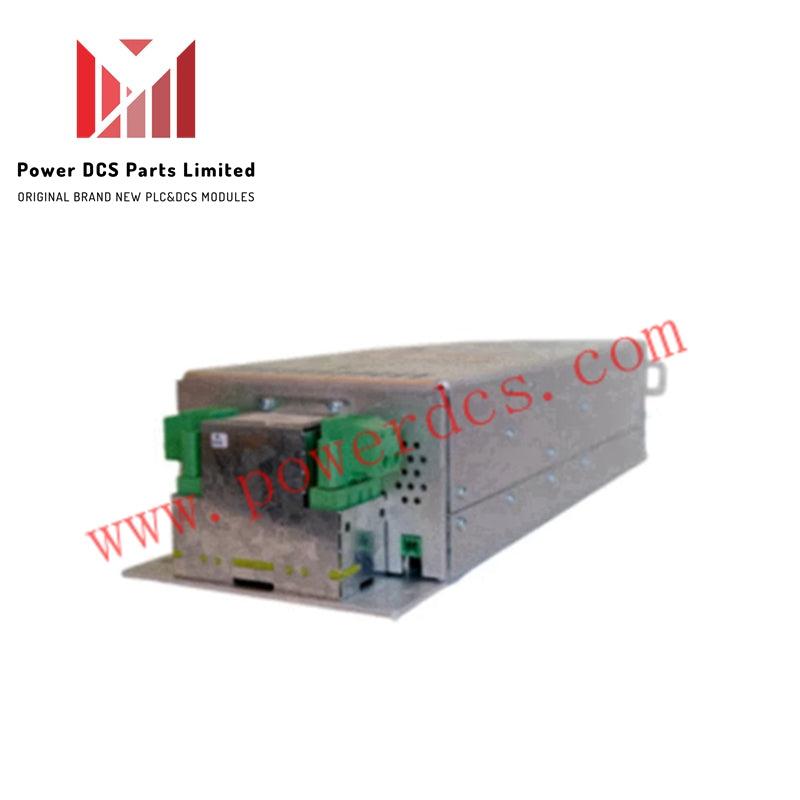

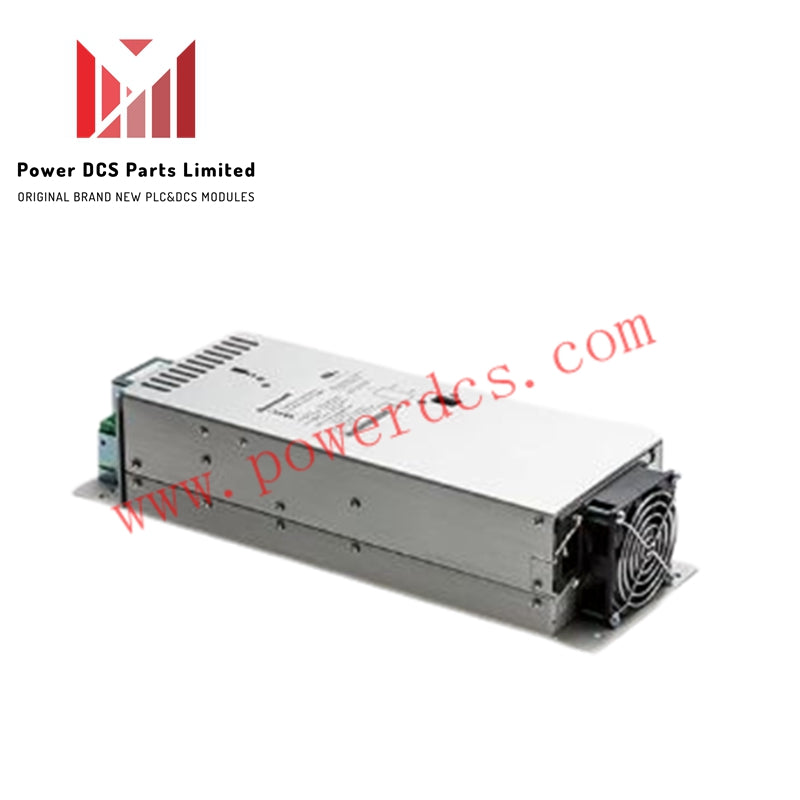

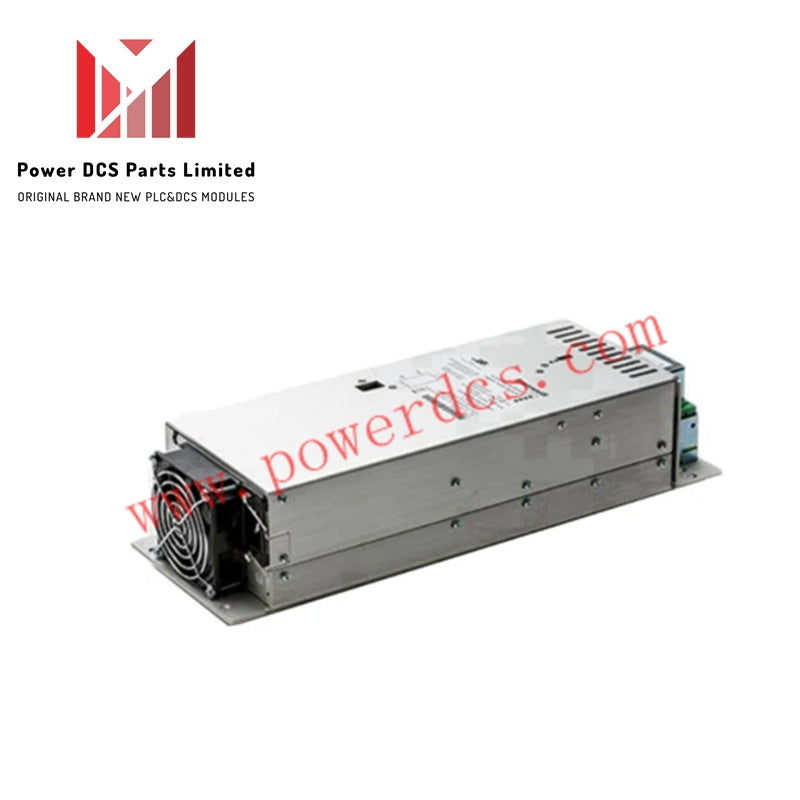

FC-PSU-UNI4825U | Honeywell | Power Supply Unit

The Honeywell FC-PSU-UNI4825U serves as the primary FC-PSU-UNI4825U Power Supply Unit utilized to execute regulated power distribution across Honeywell Safety Manager platforms.

Hardware Specifications

4-20 mA HART Loop Protocol & Channel-to-Channel Isolation

The power infrastructure utilizes galvanic barriers to enforce channel-to-channel isolation metrics, preventing field faults from transferring back to the internal processing backplane. By managing voltage ripple parameters and suppressing electromagnetic cross-coupling, the module ensures that power lines driving external instrumentation do not introduce common-mode noise or ground loops capable of corrupting 4-20 mA HART loop protocol signal packets on adjacent analog paths.

Frequently Asked Questions

Q: What is the significance of the 48 VDC output configuration on this power supply module?

A: The 48 VDC output rating minimizes line-drop voltage losses over long field wiring runs, ensuring adequate operating potential reaches high-load actuators and safety instrumentation deployed far from the control cabinet.

Q: Does the assembly feature onboard diagnostics for monitoring thermal or load degradation?

A: The unit monitors internal temperature trends and output load balancing, outputting designated diagnostic contact signals to the Safety Manager architecture to flag over-temperature conditions or current overloads before critical shutdown thresholds are reached.

Field Installation Guidelines

• Install the module vertically on standard industrial framing or heavy-gauge TS35 DIN rails to keep integrated physical cooling channels vertically aligned for convective thermal airflow.
• Maintain a clearance envelope of at least 100 mm at both the top and bottom boundaries of the chassis casing to prevent localized heat pockets and avoid output current derating under high ambient conditions.
• Wire all high-current output terminals using specified heavy-gauge ring connectors, torquing terminal blocks to exactly 1.5 Nm to prevent mechanical resistance heating under constant vibration.
• Connect the main protective earth ground terminal directly to the cabinet ground bar to ensure effective surge protection and galvanic shield integrity.
