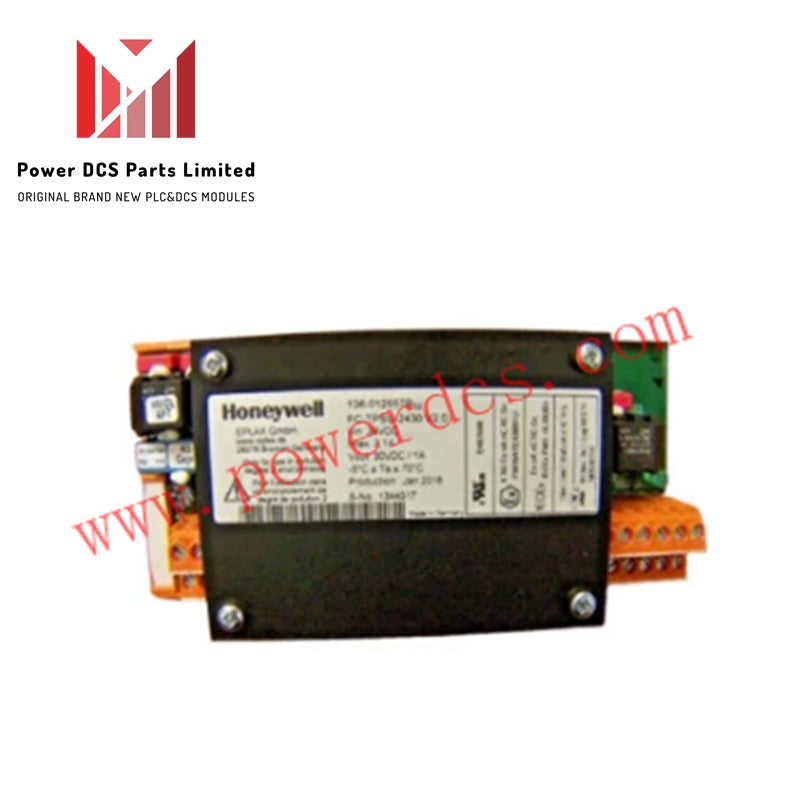

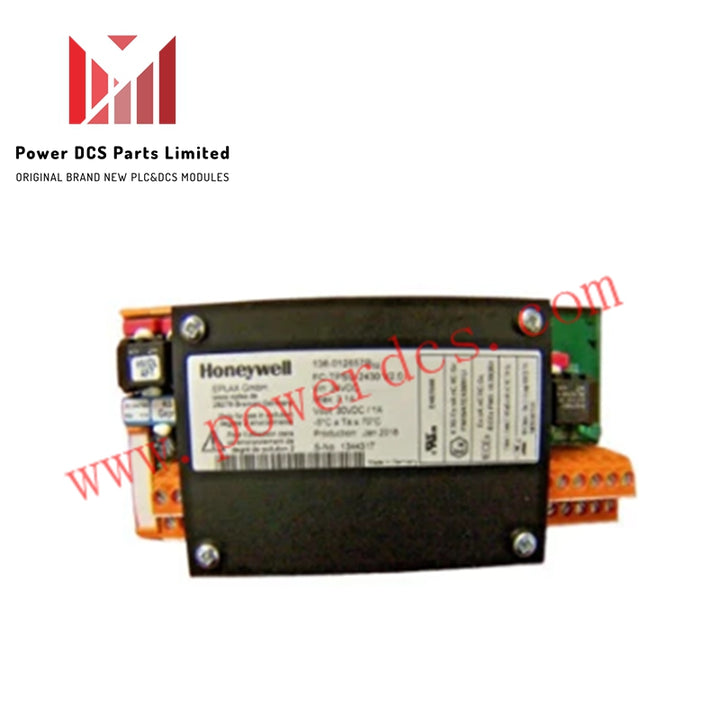

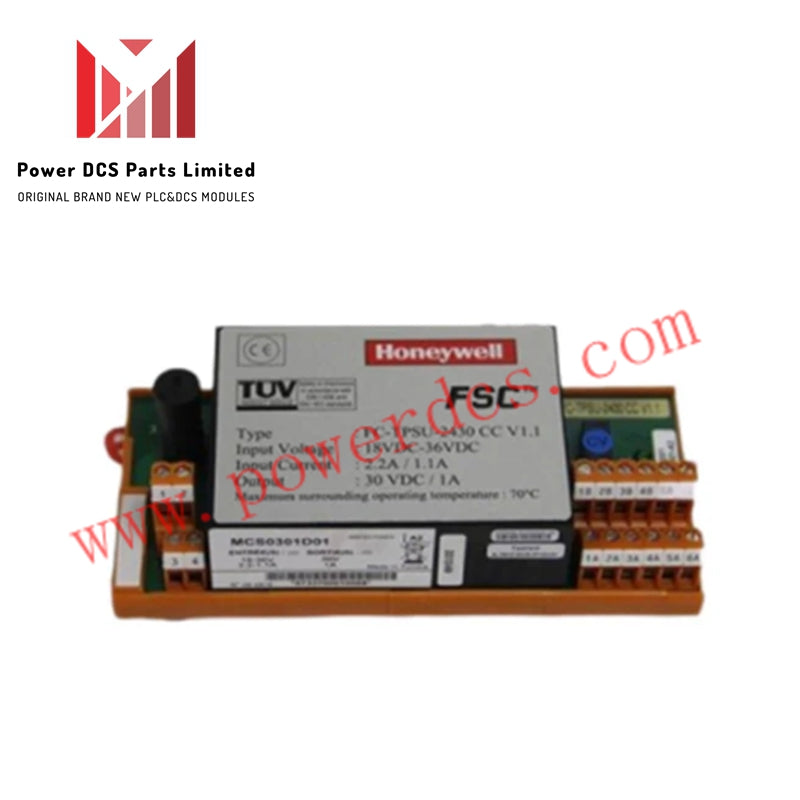

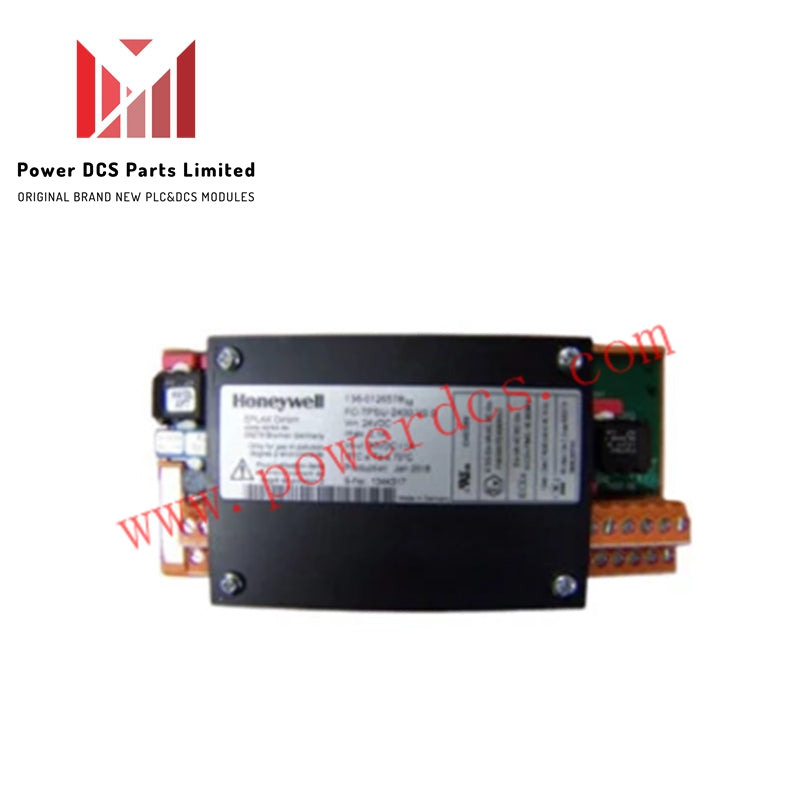

FC-TPSU-2430 V2.0 Power Supply Converter | Honeywell

The Honeywell FC-TPSU-2430 V2.0 (part number FC-TPSU-2430) is a DIN rail mounted DC-to-DC power supply converter designed for industrial automation systems. It regulates wide-range DC input voltages to provide clean, stable power output for field devices and control panel components.

Input and Output Power Specifications

The converter accepts an input voltage range of 18 to 36 VDC with a rated input current of 2.2/1.1 A depending on operating conditions. It delivers an output voltage range of 24 to 30 VDC, providing up to 1 A continuous output current at 30 VDC for connected electronics and control instrumentation.

Physical Design and Mounting

Engineered for quick installation inside industrial control enclosures, the FC-TPSU-2430 V2.0 features a compact DIN rail mounting design. The unit has a total weight of 0.99 lbs, facilitating efficient cabinet layout and space utilization on standard mounting rails.

Frequently Asked Questions

Q: What input voltage range does the FC-TPSU-2430 V2.0 power converter accept?

A: The converter operates across an input range of 18 to 36 VDC.

Q: What is the output current capacity of the FC-TPSU-2430 V2.0 at 30 VDC?

A: The module supplies up to 1 A of continuous output current at 30 VDC.

Q: How is the FC-TPSU-2430 V2.0 module mounted inside control cabinets?

A: It features an integrated DIN rail mounting design for installation on standard cabinet mounting rails.
