FC-TSAI-1620M Honeywell Analog Input Module

Specifications

  • Manufacturer: Honeywell

  • Product No.: FC-TSAL-1620M

  • Condition: 10 Items in Stock

  • Product Type: Analog Input Modules

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 3000g

  • Shipping port: Xiamen

  • Warranty: 12 months

Product details

Description

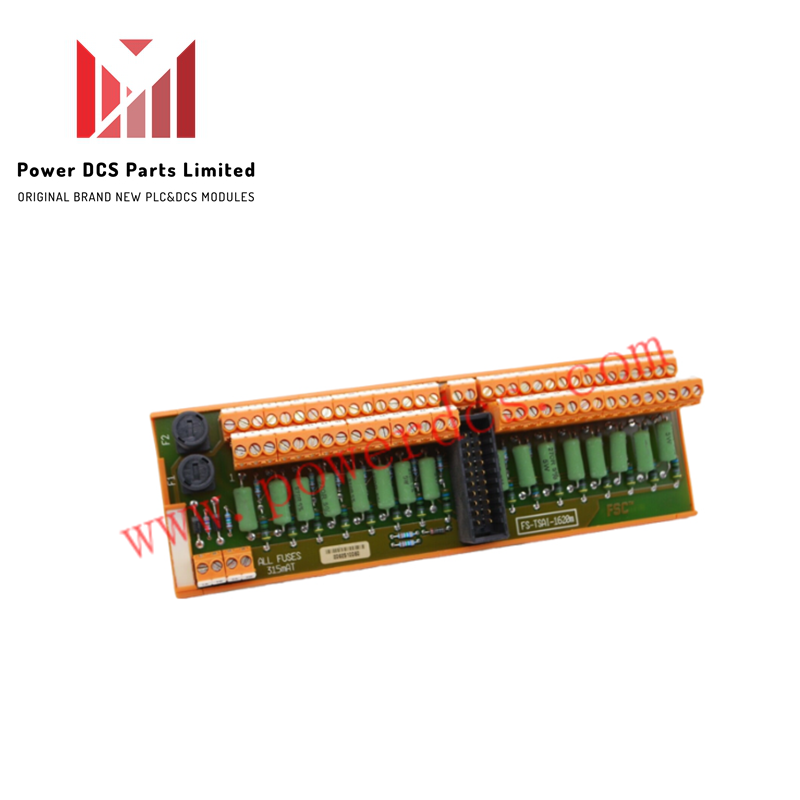

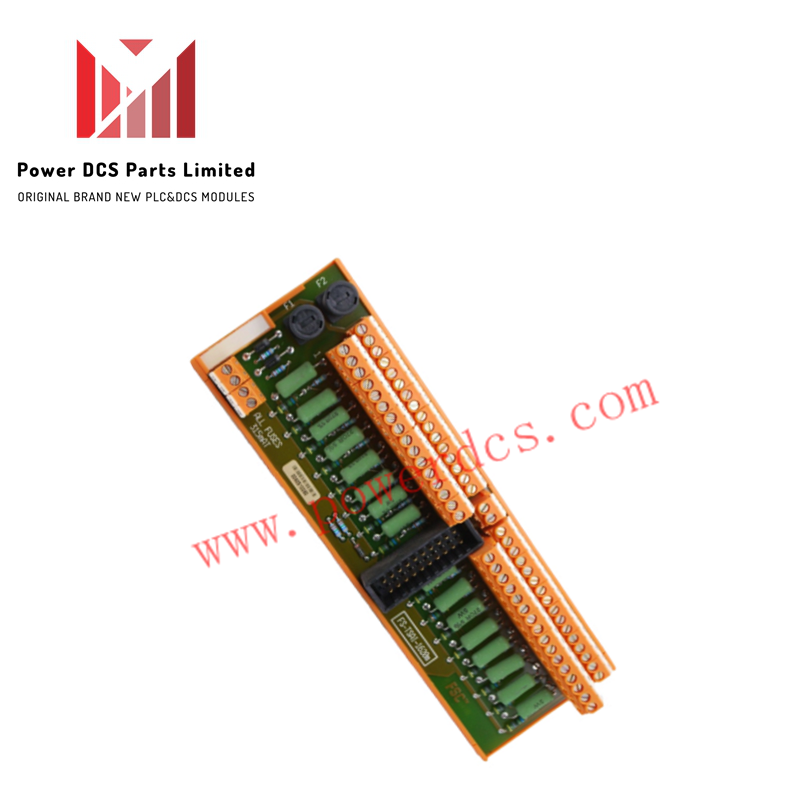

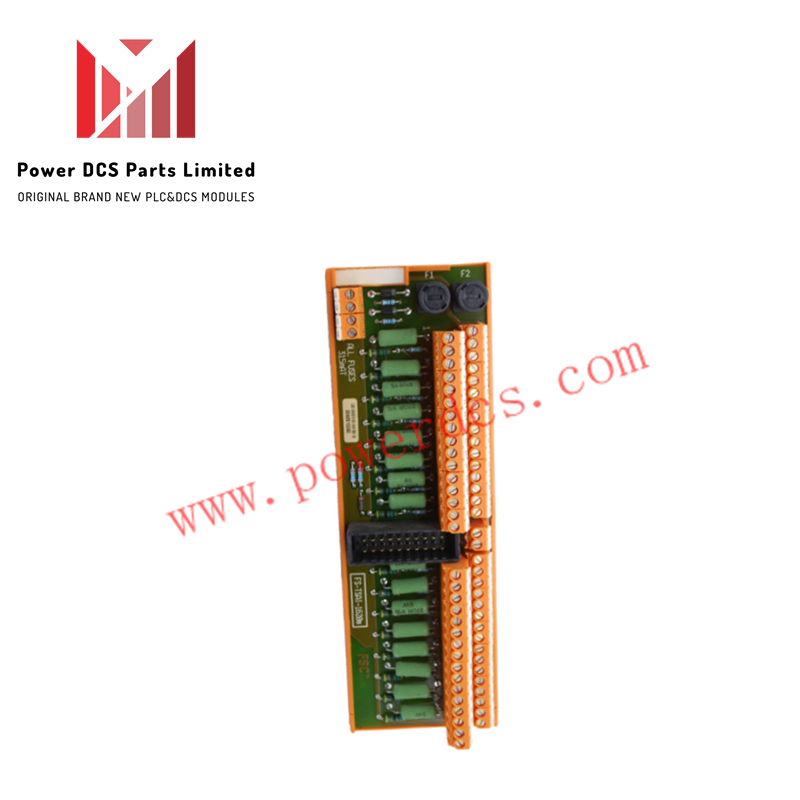

Configured for high-density 16-channel analog signal acquisition in Honeywell Safety Manager platforms, the Honeywell FC-TSAI-1620M (FC-TSAI-1620M Analog Input Module) provides direct physical/electrical execution.

Hardware Specifications

Parameter Specification
Model FC-TSAI-1620M
Brand Honeywell
Weight Shipping Weight: 3 kg
Dimensions Standard chassis module dimensions unlisted
Operating Temp -20 to 70 deg C (standard panel ambient)
Power Consumption Power consumption dependent on backplane bus load
Module Type Analog Input Module
Input Type Analog current/voltage signal processing

4-20 mA HART Loop Protocol & Channel-to-Channel Isolation

Engineered for critical signal processing within safety-instrumented architecture, the module interfaces field transmitters directly with the Safety Manager backplane. Galvanic channel-to-channel isolation decouples individual field loop circuits, mitigating common-mode voltage spikes and ground loop currents. This isolation topology transparently passes standard 4-20 mA HART loop protocol frequency-shift keying (FSK) signals, preserving digital instrument diagnostic data while maintaining high-integrity analog input values for safety shutdown logic execution.

Frequently Asked Questions

Q: What operational considerations apply during hot-swapping or module replacement in active chassis slots?

A: Ensure that the module retention mechanisms are disengaged and that redundant signal paths or system shutdown overrides are established prior to live removal to prevent unintended safety trips.

Q: How does channel-to-channel isolation protect the module during field-side wiring ground faults?

A: Channel-to-channel galvanic isolation isolates overvoltage conditions or short circuits to the specific faulted terminal pair, preventing loop interference or damage from propagating to adjacent channels or backplane logic components.

Field Installation Guidelines

  • Disconnect main power to the target slot or enclosure section prior to inserting or extracting the module assembly.
  • Align the circuit board edges carefully with the card cage guide rails and push firmly until the backplane connectors fully engage.
  • Secure the module retention screws on the front panel to ensure solid earth continuity and prevent detachment due to panel vibration.
  • Route analog signal cables in dedicated low-voltage cable trays separated from AC power distribution lines and high-inductive switching circuits.
  • Connect all field cable shield drain wires to a single-point cabinet earth ground terminal block.
