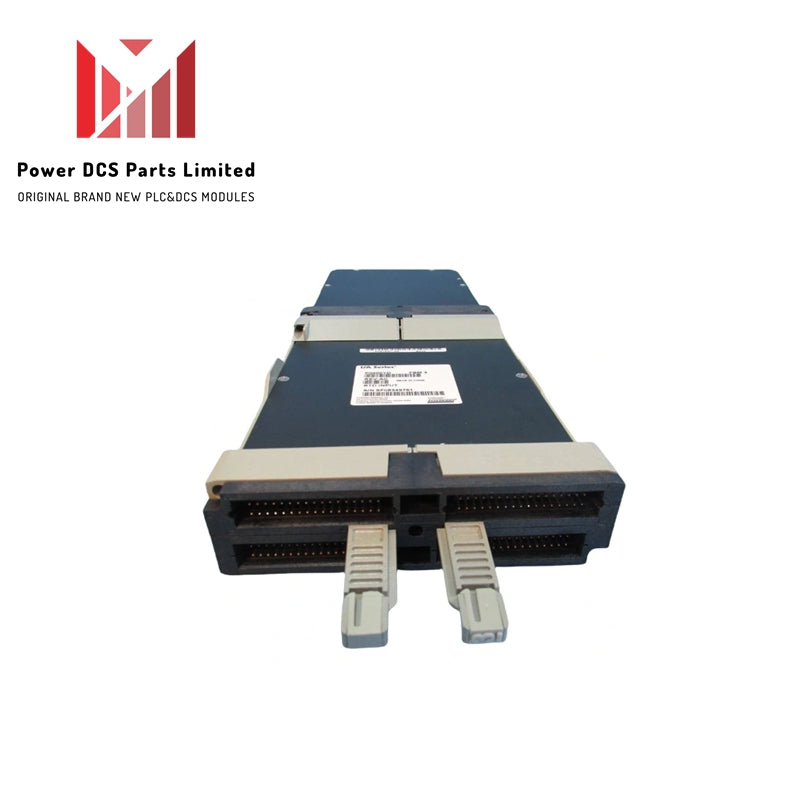

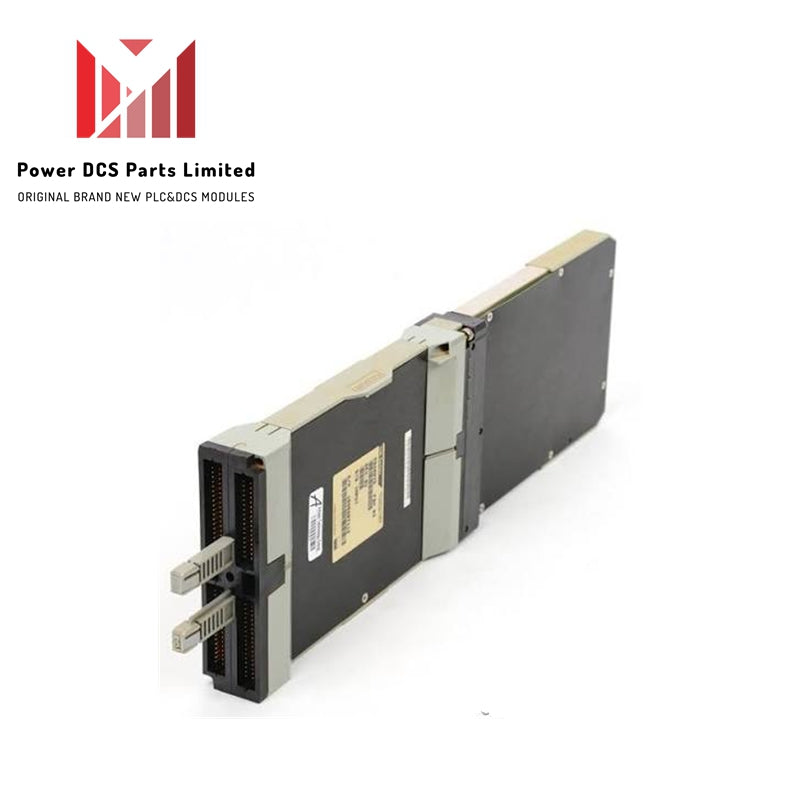

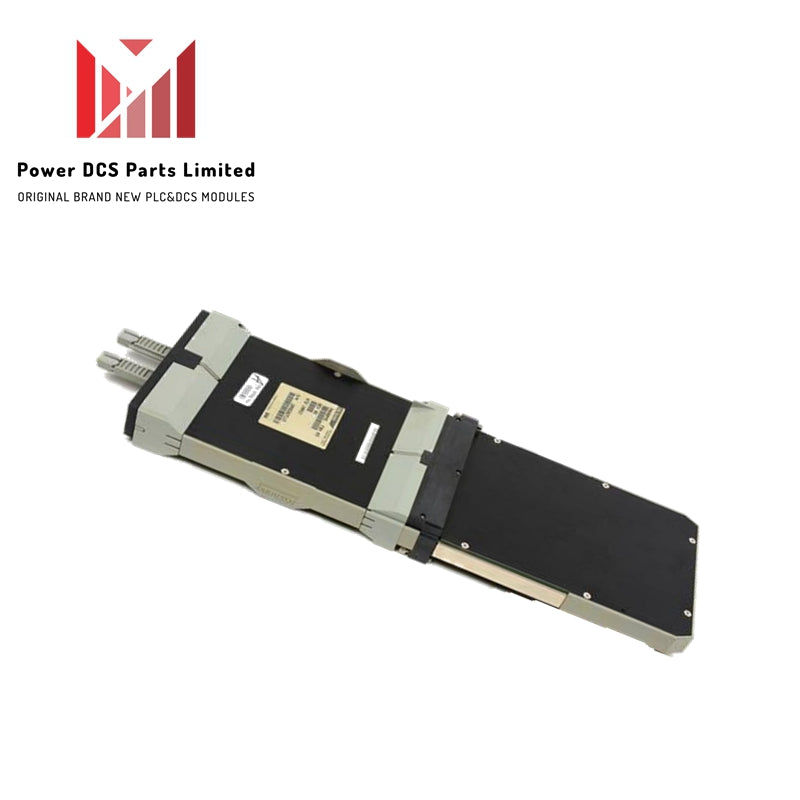

Foxboro FBM03 P0400YD I/A Series RTD Input Module

Foxboro FBM03 P0400YD RTD Input Module

Configured for resistance-based temperature signal acquisition in Foxboro I/A Series DCS environments, the Foxboro FBM03 P0400YD (FBM03 RTD Input Interface Module) provides direct physical/electrical execution across eight independent channels over a 0 to 320 ohm measurement span.

Hardware Specifications

Process Control and Signal Isolation

Group isolation separates external field sensor circuits from internal logic components to eliminate potential earth loops and common-mode transients across industrial plant wiring. Operating within process environments alongside 4-20 mA HART loop protocol instruments, the module delivers a regulated 0.75 mA DC sensor excitation current to limit self-heating errors in Platinum and Nickel RTDs. The integrated 12-bit analog-to-digital converter continuously scans all eight channels, providing automated open-sensor and broken-wire fault detection to ensure deterministic signal delivery across dual 268 kbps fieldbus paths.

Frequently Asked Questions

Q: Does the FBM03 support hot-swapping while the baseplate is powered?

A: No, as a legacy 100 Series Fieldbus Module, the system supply power to the baseplate must be fully de-energized prior to removing or inserting the unit.

Q: How does 3-wire and 4-wire RTD wiring prevent measurement drift?

A: 3-wire and 4-wire configurations allow internal bridge circuitry to measure and cancel lead-wire resistance over long cable runs, keeping accurate resistance readings across the 0 to 320 ohm input range.

Q: What happens to the process variable signal when an RTD wire breaks?

A: The module detects open circuit conditions and outputs a diagnostic fault status over the fieldbus to trigger system alarm states in the control software.

Field Installation Guidelines

Align the module housing with the mounting slots on the 100 Series baseplate and secure the mechanical hold-down screws to establish positive electrical contact with the backplane bus connectors. Ensure cabinet main supply power is completely de-energized before mounting or servicing modules on the baseplate assembly. Connect a 14 AWG copper grounding strap from the baseplate ground lug to the cabinet earth reference bus bar.

Route RTD field wiring through dedicated low-voltage instrument raceways, keeping signal conductors separated from high-voltage AC cables. Terminate individual cable overall shields at the baseplate shield ground point using a single-ended grounding configuration to prevent circulating current loops. Technicians must wear an ESD wrist strap during handling and wiring connection procedures to prevent static discharge damage to circuit elements.
