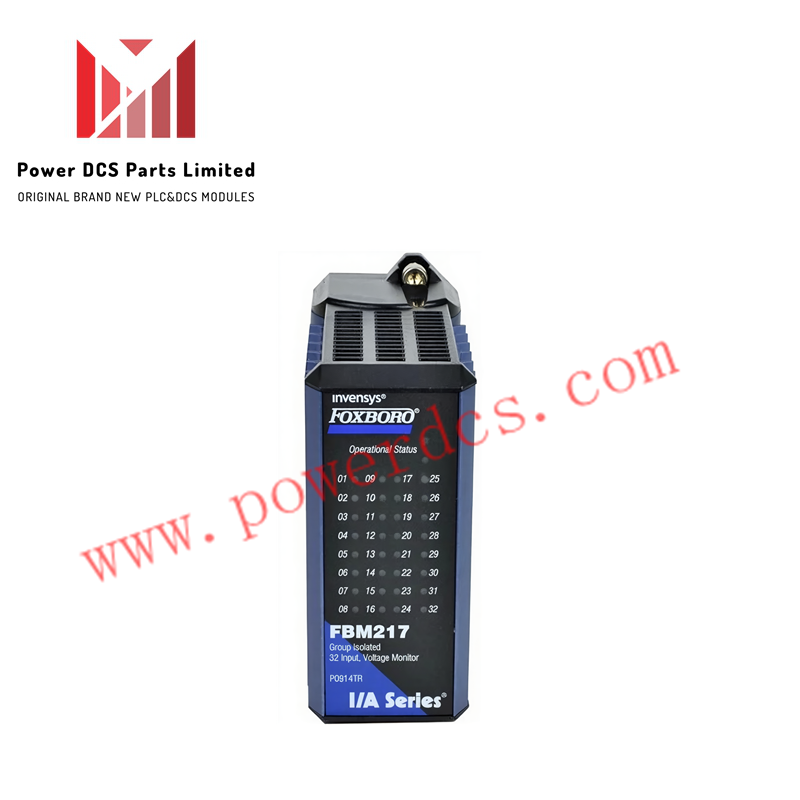

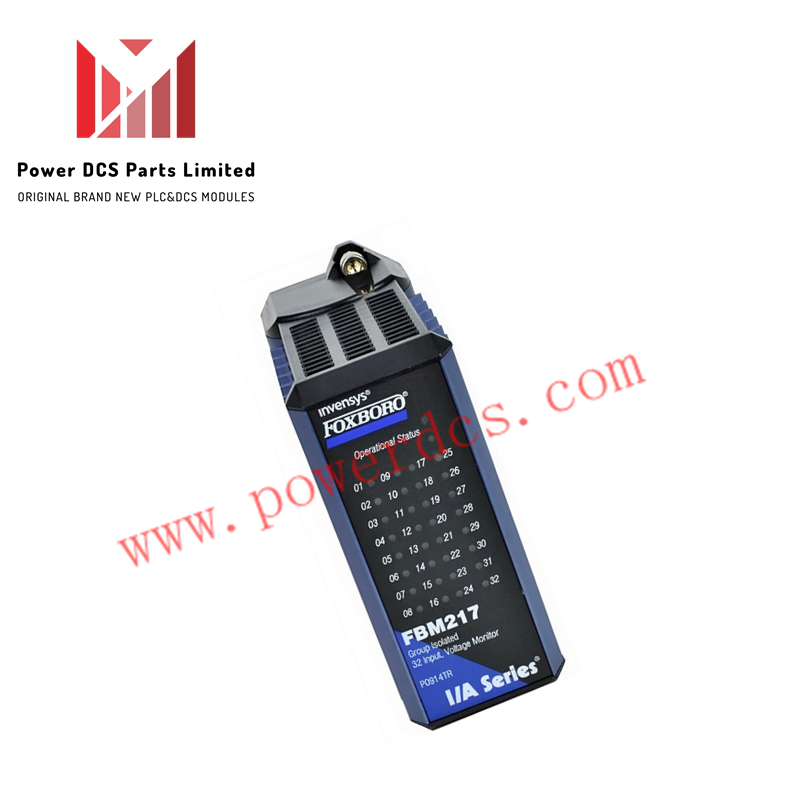

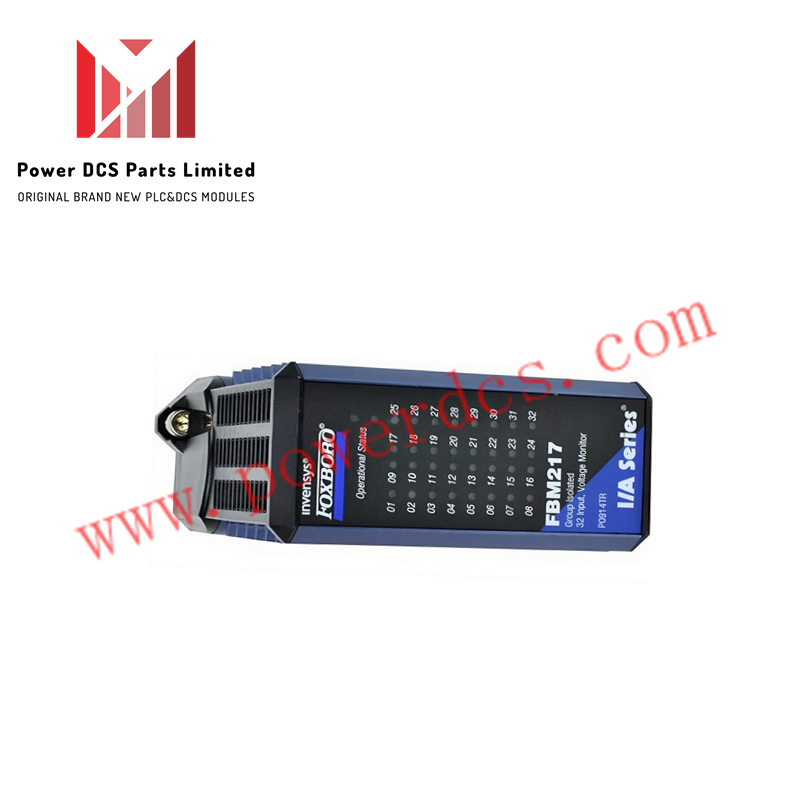

Foxboro FBM217 P0916PW Discrete Input Interface Module

Description

The Foxboro FBM217 P0916PW is a discrete input interface module designed for I/A Series control systems. It offers reliable monitoring of digital signals from field devices with high channel density and redundancy support.

Specifications

• Model Number: FBM217

• Part Number: P0916PW

• Input Channels: 32 group-isolated discrete inputs

• Input Voltage Ranges: 15–60 VDC, 120 VAC / 125 VDC, 240 VAC

• On-State Voltage: 15–30 VDC

• Off-State Voltage: 0–5 VDC

• Input Current: 2.2 mA typical at 30 VDC

• Filter/Debounce Time: Configurable (0, 4, 8, 16, or 32 ms)

• Pulse Count Rate: Up to 250 Hz

• Power Supply: 24 VDC ±5%, –10%

• Power Consumption: Max 3 W

• Communication: Redundant 2 Mbps Fieldbus

• Operating Temperature: –20°C to +70°C

• Humidity: 5–95% RH, non-condensing

• Mounting: DIN rail baseplate

• Dimensions: Approx. 10.2 × 11.4 × 4.5 cm

• Weight: ~0.6 kg

Features

• High Channel Density: Supports 32 discrete inputs in a compact footprint

• Redundancy Ready: Enables fault-tolerant configurations with redundant pairing

• Flexible Voltage Support: Handles multiple AC and DC input levels

• Rugged Design: Rated for Class G3 harsh industrial environments

• Advanced Diagnostics: Includes SOE and fault detection capabilities

• Modular Integration: Compatible with various Termination Assemblies (TAs)

• Hot-Swappable: Allows module replacement without interrupting field wiring or power

• Visual Indicators: LED status lights for module health and input activity
