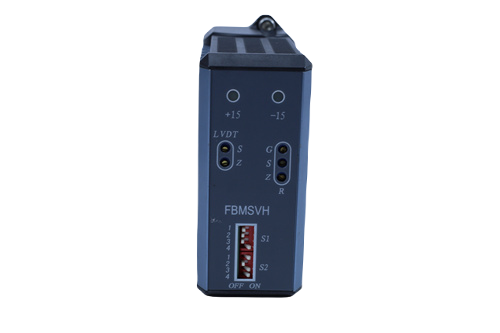

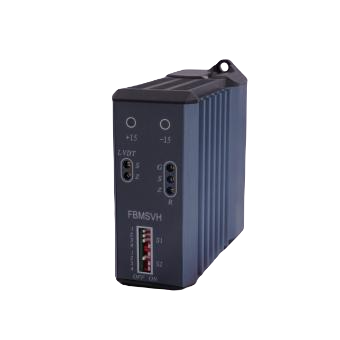

Foxboro FBMSVH Control Card New Arrival In Stock

Overview:

The Foxboro FBMSVH control card is designed for closed-loop control systems to precisely control the position of pneumatic or hydraulic servos. It accepts input commands within the range of 4-20mA or 0-10VDC, and feedback input can be derived from an LVDT with a 0-10V signal. After processing the DEH command and LVDT feedback voltage using P or P+I regulation, it outputs a ±27mA current to drive the servo valve. The module operates with an external ±15V power supply, which can be connected to the respective input terminals.

Key Features:

• Selectable current or voltage input (DEH) with separately adjustable zero point and full-scale range using the S2 switch.
• Equipped with an LVDT modulator and demodulator with adjustable amplitude and a driving current of 50mA.
• Capable of outputting a 0-20mA valve position signal with an impedance of 50Ω.
• Allows for external shutdown contacts and adjustable proportional and integral control loops.

Technical Specifications:

Temperature:

• Storage Temperature Range: -40°C to 70°C
• Operating Temperature Range: 0°C to 50°C

Power Supply:

• Power Supply Voltage: ±15VDC
• Voltage Regulation Accuracy: ±1%
• Ripple/Noise: ±1%
• Power Consumption:
  • +15V Power Supply: 250mA
  • -15V Power Supply: 250mA

Command Input:

• Input Impedance (Current Input): 500Ω
• Input Impedance (Voltage Input): 4.3KΩ
• Maximum Command Current: 21mA
• Maximum Command Voltage: 11.0VDC

Feedback (LVDT Feedback):

• Demodulator Maximum Input: 18Vpp (6.36Vrms)

Oscillator Frequency:

• Standard Value: 1000Hz
• Error: 10%

Feedback Circuit Adjustment Range:

• Bias: Maximum (at G=1) -8VDC to 8VDC (adjustable)
• Gain: Adjustable within the range of 1 to 20

External Current Feedback (4-20mA):

• Load Impedance (Current Input): 500Ω
• Maximum Feedback Current Input: 21mA

PI Control:

• Proportional (Gain): Adjustable within the range of 0 to 20
• Integral:
  • Integral Time Constant: Adjustable within the range of 1 to 20 seconds

External Shutdown:

• Closure of external contacts triggers shutdown with an output current of -10mA.

Power Amplifier:

• Output Current: Maximum ±30mA (80Ω)
