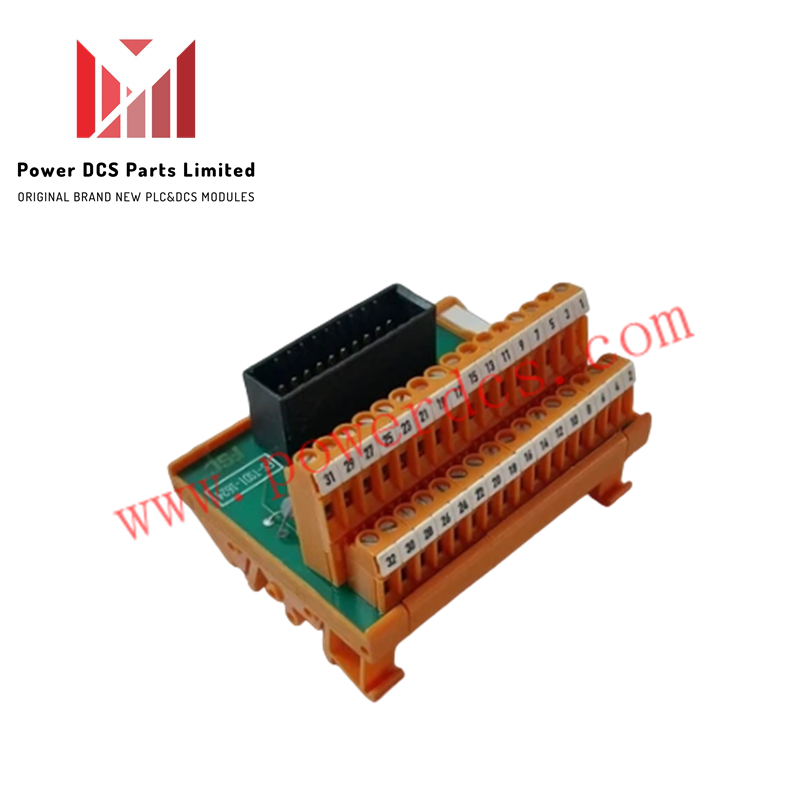

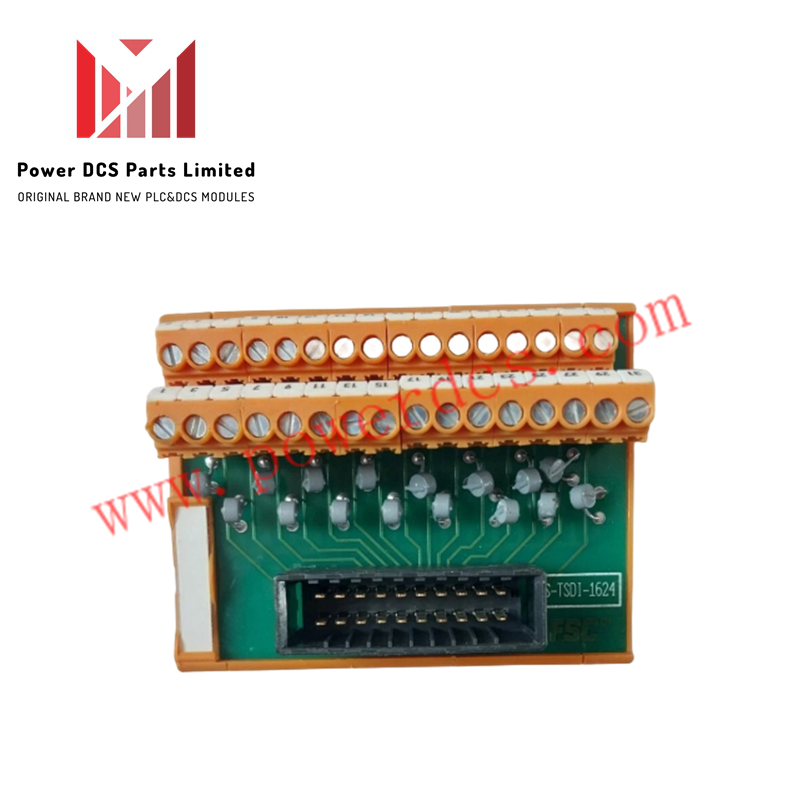

FS-TSDI-1624 | Honeywell | Safe Digital Input Field Termination Assembly

The Honeywell FS-TSDI-1624 is a 16-channel safe digital input field termination assembly (FTA) designed for Honeywell Safety Manager systems. It provides real-time acquisition of discrete signals from field switches and sensors, delivering high-speed signal processing and electrical isolation for safety-critical industrial applications.

Channel Isolation and Input Performance

The assembly features 16 digital input channels operating at a nominal voltage of 24 VDC. Each individual channel incorporates optical isolation to protect sensitive control electronics against ground loops, voltage surges, and electrical noise across field wiring connections.

Physical Design and Mechanical Mounting

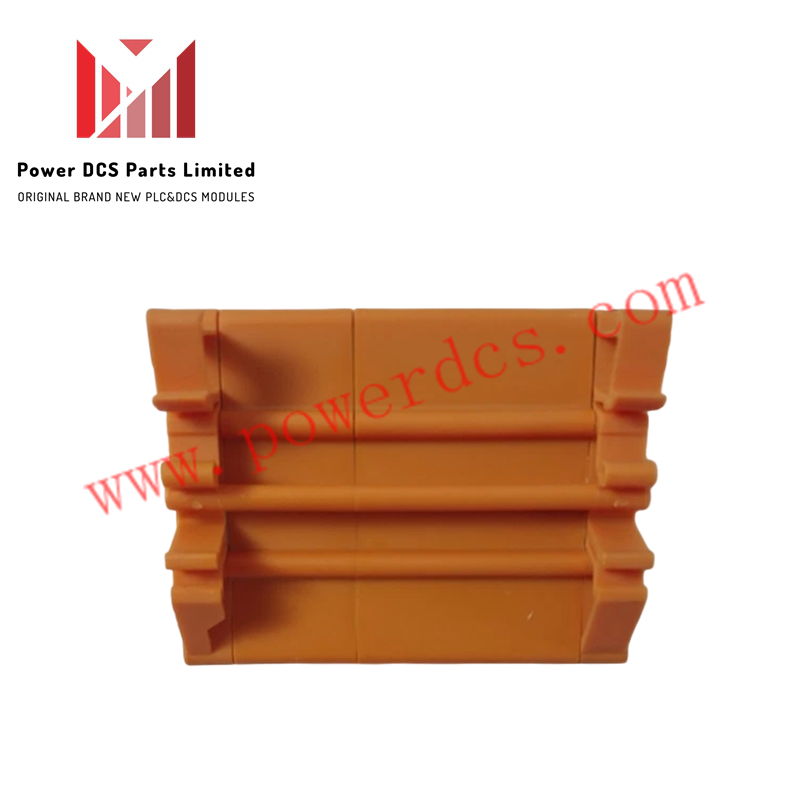

Weighing approximately 0.14 kg, the FS-TSDI-1624 features a compact form factor engineered for high-density cabinet layouts. The assembly supports standard DIN rail installation as well as rack-mounted mounting configurations depending on panel construction requirements.

Frequently Asked Questions

Q: What mounting options are supported by the Honeywell FS-TSDI-1624 assembly?

A: The module supports flexible installation options, allowing for either DIN rail or rack-mounted mounting inside control cabinets.

Q: How does the FS-TSDI-1624 handle channel signal isolation?

A: Each of the 16 digital input channels is individually optically isolated to prevent electrical noise and cross-channel interference.
