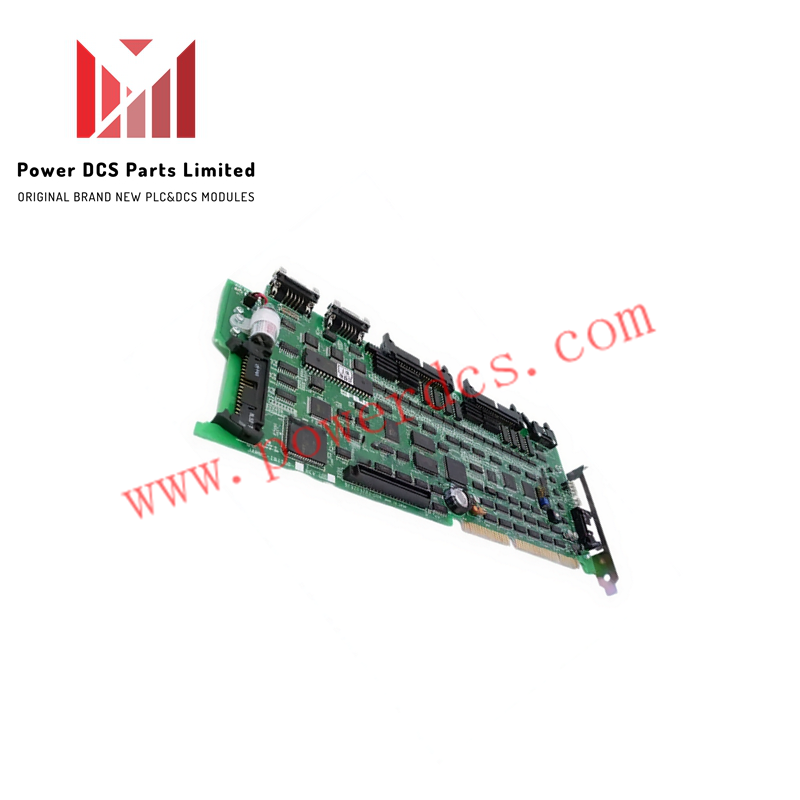

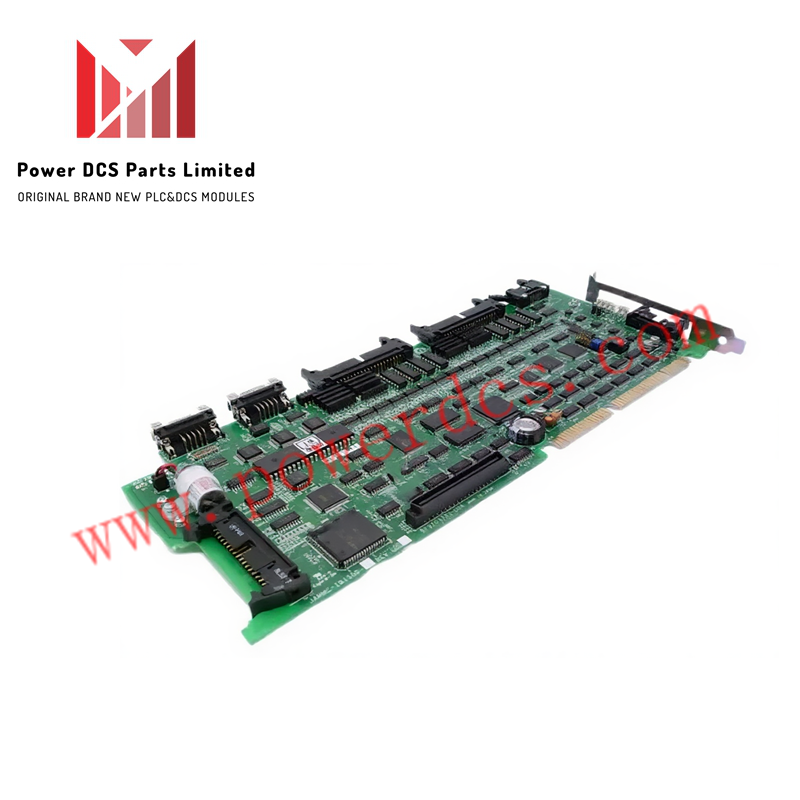

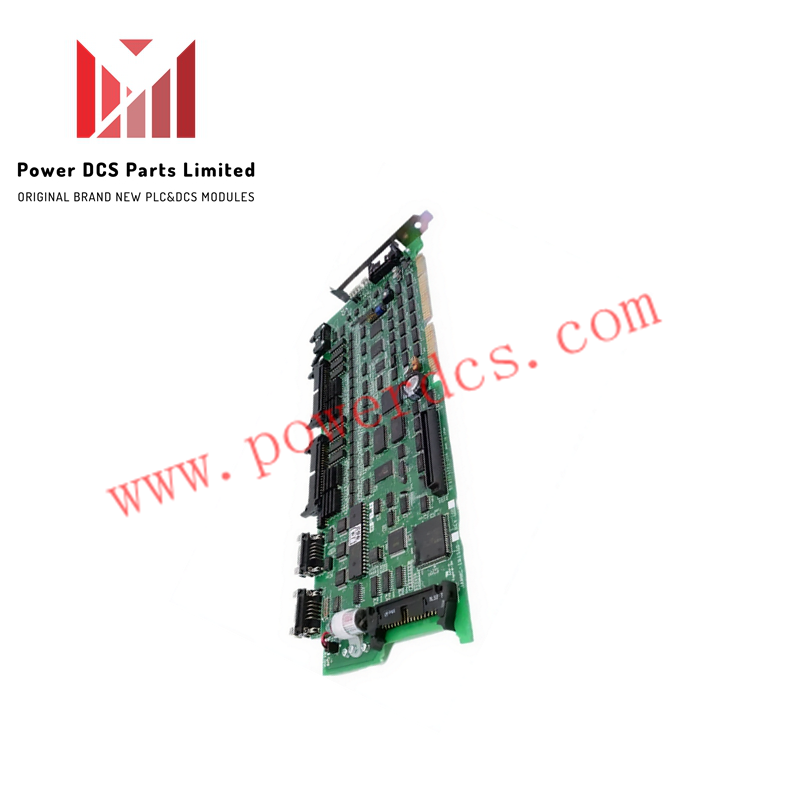

FUJI MC-IO150D Interface Board

Description

FUJI MC-IO150D Interface Board is a high-performance I/O module designed for industrial automation systems. It supports fast signal processing, robust isolation, and flexible mounting options.

Specifications

• Manufacturer: Fuji Electric

• Model: MC-IO150D

• Type: I/O Interface Board

• Input Channels: 16 channels, 24V DC, 5mA typical, sink/source compatible

• Output Channels: 16 channels, 24V DC, 0.5A per channel, open collector transistor type

• Response Time: Less than 1ms for both input and output

• Isolation: Photocoupler isolation between I/O and logic circuits

• Protection: Overcurrent and short-circuit protection on outputs

• Power Supply: 24V DC rated voltage, 150mA typical consumption

• Operating Temperature: -10°C to 55°C

• Storage Temperature: -20°C to 70°C

• Humidity Range: 10% to 90% non-condensing

• Vibration Resistance: 10–55Hz, 0.15mm peak-to-peak amplitude

• Dimensions: 100mm × 50mm × 120mm

• Mounting: DIN rail or panel mount

• Weight: Approx. 300g

Features

• Fast Response: Sub-1ms signal processing ensures real-time control

• Dual Compatibility: Supports both sink and source input types

• Robust Isolation: Photocoupler design enhances safety and signal integrity

• Compact Design: Small footprint fits easily into control panels

• Flexible Mounting: DIN rail or panel installation options

• Reliable Output: Transistor-based open collector outputs with built-in protection

• Industrial Durability: Operates across wide temperature and humidity ranges

• Vibration Resistant: Withstands industrial vibration for stable performance
