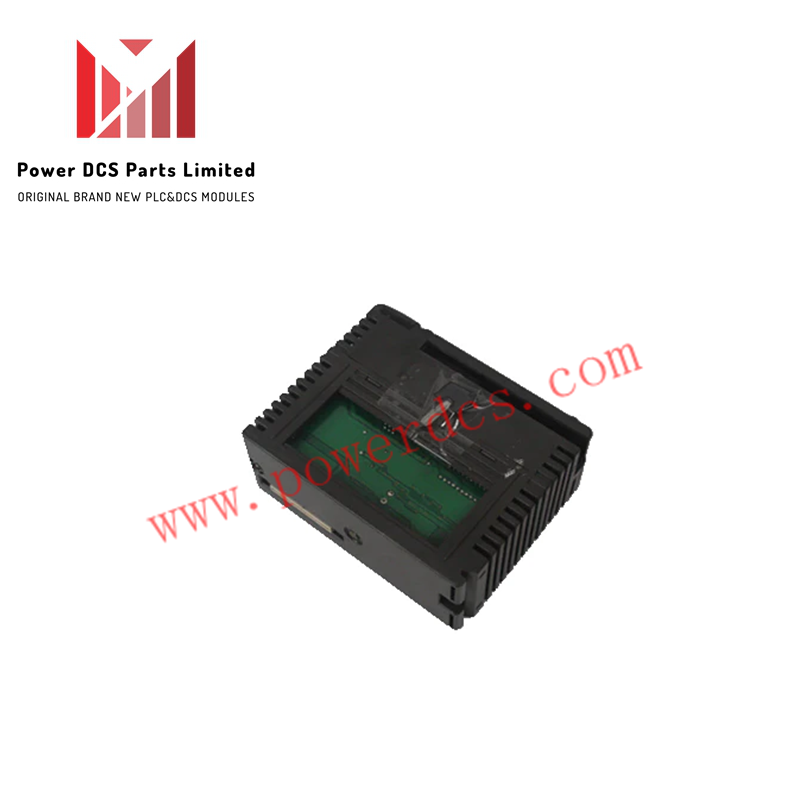

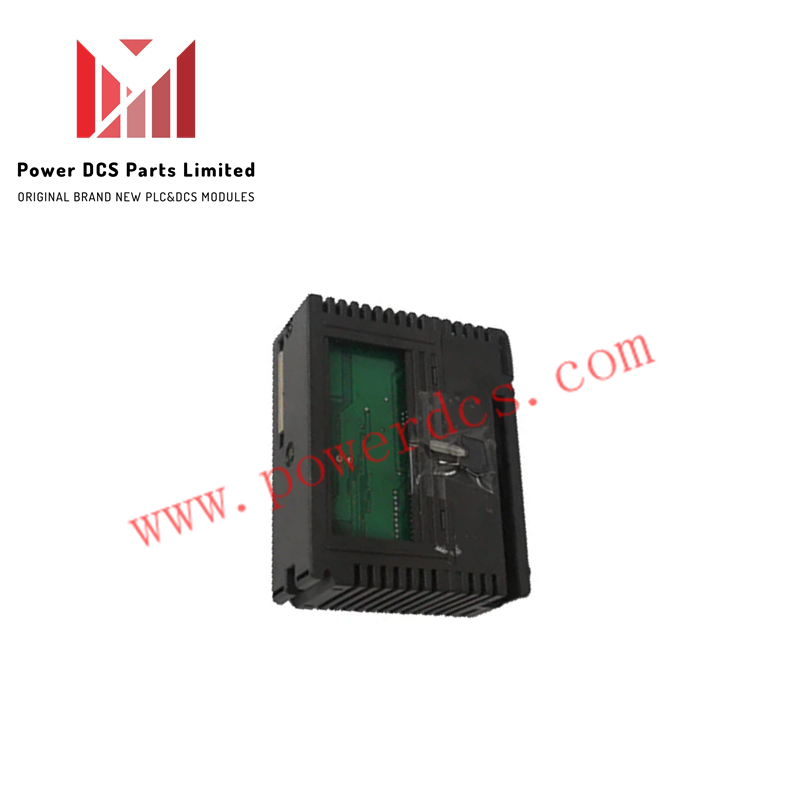

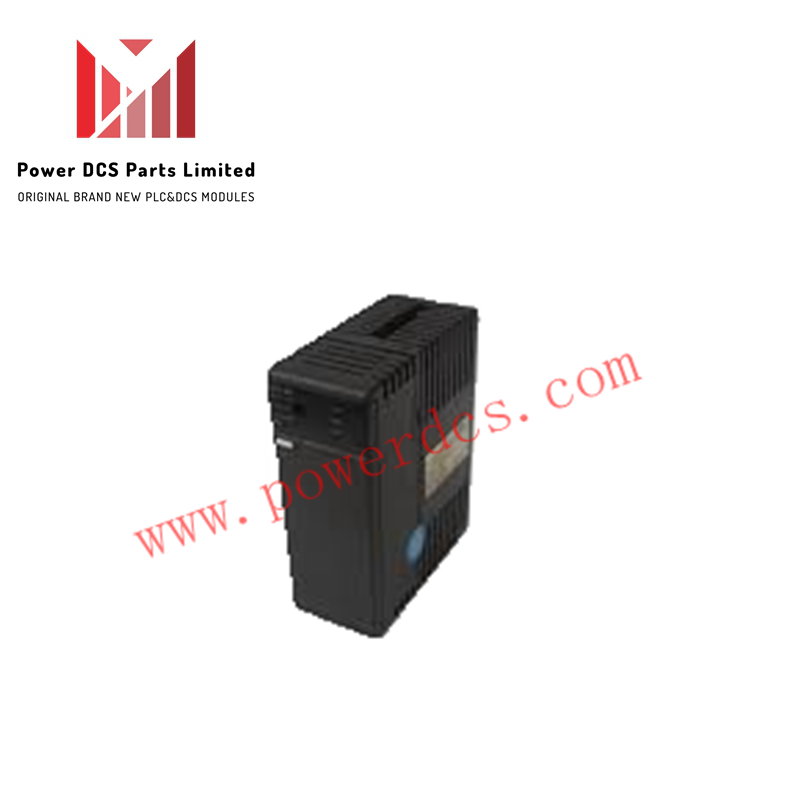

FUJI NP1L-RS1 CPU MODULE

Description

The FUJI NP1L-RS1 CPU Module is a general-purpose RS-232C communication unit designed for Fuji Electric’s MICREX-SX series PLCs. It facilitates serial data exchange between the CPU and external devices in industrial automation systems.

Specifications

• Manufacturer: Fuji Electric

• Model: NP1L-RS1

• Communication Interface: RS-232C serial port

• Supported Connection Modes: 1:1 and 1:N configurations

• Mounting: Installed on MICREX-SX base board

• Power Supply: Provided via base unit

• Dimensions: Approx. 32 mm × 102 mm × 89 mm

• Weight: Approx. 100 g

• Operating Temperature: 0°C to 55°C

• Storage Temperature: -25°C to 70°C

• Humidity Range: 10% to 90% RH (non-condensing)

• Country of Origin: Japan

Features

• Serial Communication: Enables data exchange between CPU and external devices

• OPC Compatibility: Supports integration with supervisory control systems

• Flexible Configuration: Supports both point-to-point and multi-drop setups

• Device Monitoring: Real-time status display and control of connected equipment

• Production Control Interface: Allows adjustment of operational parameters

• Compact Design: Ideal for space-constrained control panels

• Diagnostic Functions: Includes error detection and communication status feedback
