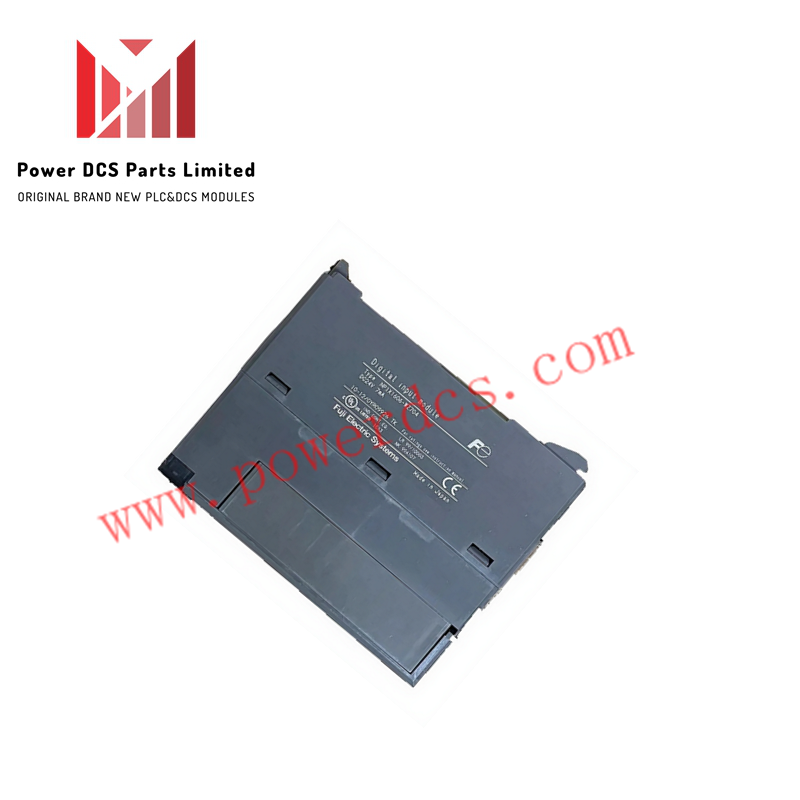

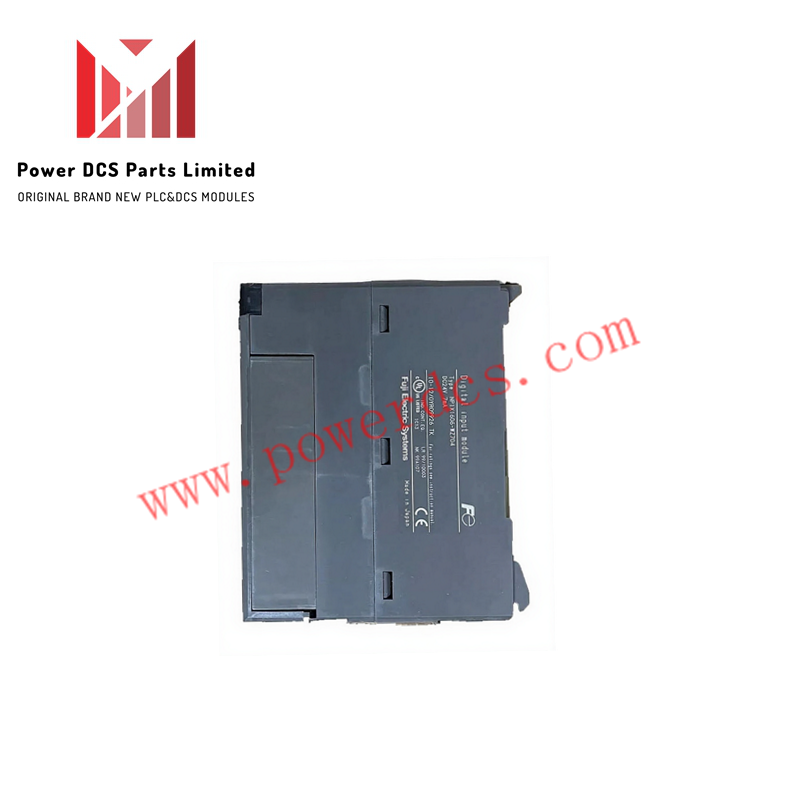

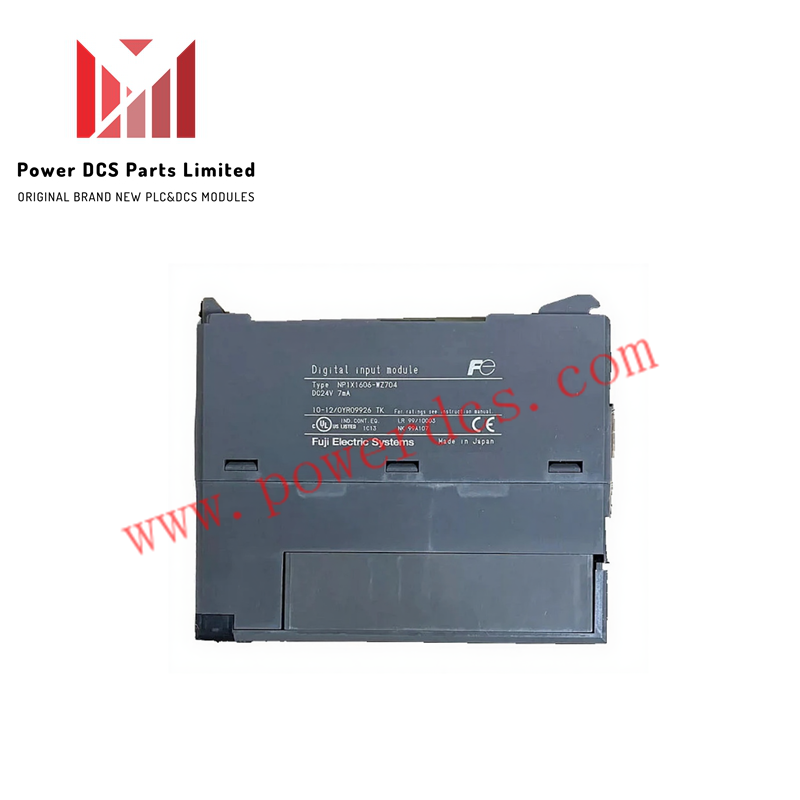

FUJI NP1X1606-WZ704 Digital Input Module

Description

FUJI NP1X1606-WZ704 is a digital input module designed for MICREX-SX PLC systems. It offers 16 input channels with fast processing and compact dimensions for industrial automation.

Specifications

• Manufacturer: Fuji Electric

• Model: NP1X1606-WZ704

• Type: Digital Input Module

• Input Channels: 16 points

• Input Voltage: 24V DC

• Input Current: 7 mA per channel

• Processing Speed: 65 ns per step

• Operating Temperature: -10°C to 55°C

• Storage Temperature: -25°C to 70°C

• Dimensions: 70 mm × 90 mm × 69 mm

• Weight: Approx. 0.4 kg

• Mounting: DIN rail or panel mount

• Country of Origin: Japan

Features

• High-Speed Processing: Executes input logic at 65 ns per step for real-time control

• Compact Design: Small footprint ideal for space-constrained control panels

• LED Indicators: Built-in status LEDs for quick diagnostics and monitoring

• Reliable Signal Handling: Stable input performance across industrial voltage ranges

• System Compatibility: Seamlessly integrates with MICREX-SX series PLCs

• Durable Construction: Designed for long-term use in harsh environments

• Easy Installation: Supports both DIN rail and panel mounting options
