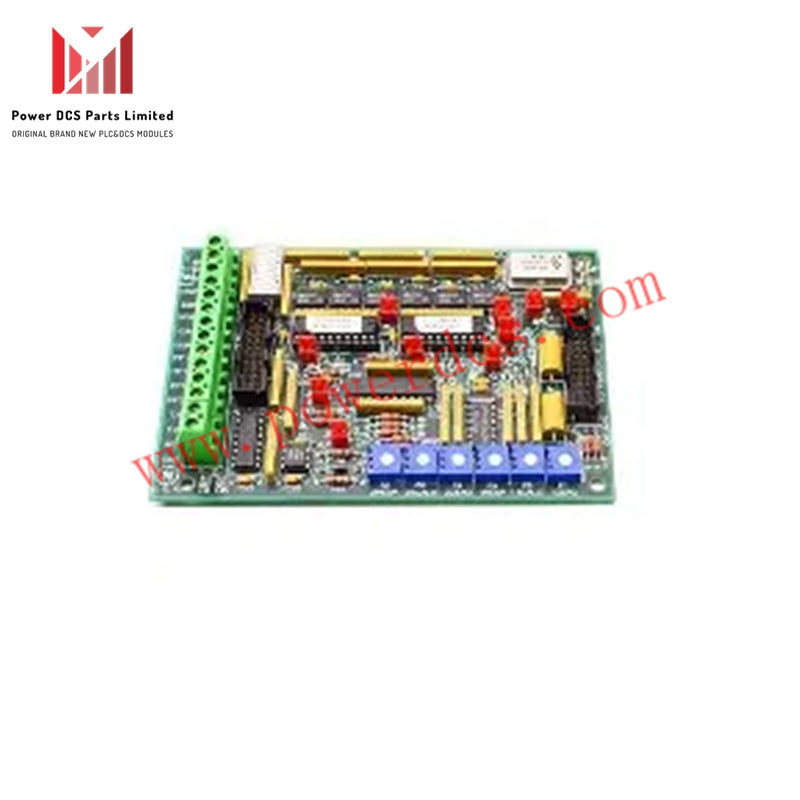

GE 531X309SPCAJG1 | Digital Output Module

Product Overview

Brand / Model: GE 531X309SPCAJG1
Product Type: Digital Output Module
Warranty: 1 Year
Condition: Brand New
Origin: USA
Inventory: Spot/Futures
Delivery Time: 3–4 days (Order fulfillment 1 month after payment)

Physical Dimensions

• Height: 101.6 mm

• Width: 152.4 mm

• Depth: 76.2 mm

• Weight: 0.9 kg

Product Description

The GE 531X309SPCAJG1 is a high-reliability Digital Output Module designed for industrial automation applications, particularly for GE’s Series 90-30/70 PLC platform. This module provides precise control over discrete field devices, acting as a vital interface between the control system and actuators such as valves, contactors, and motors.

Featuring 16 isolated relay outputs, it is ideal for environments demanding electrical isolation and high switching capacity. The robust design supports switching of both AC and DC loads—up to 250 V AC or 30 V DC—with each channel capable of handling 5 A continuous current and 10 A peak current (for 10 seconds).

Built for harsh industrial settings—including oil & gas, power generation, and manufacturing—the module’s rugged construction and conformal coating protect against dust, moisture, and corrosive elements. It is compatible with GE’s Series 90 rack systems, offering plug-and-play ease of integration.

Key Features

• 16 isolated relay output channels for electrical isolation and safe switching

• Supports AC/DC loads up to 250 V AC / 30 V DC

• Each channel rated for 5 A continuous current and 10 A peak for 10 seconds

• Isolation voltage: 2.5 kV RMS between channels and ground

• Rugged construction with conformal coating for protection against environmental hazards

• Diagnostic LEDs provide real-time status per channel to simplify troubleshooting

• Compatible with DIN rail or rack mounting (GE Series 90 compatible)

Technical Specifications
