GE DS200FSAAG1ABA Field Supply Gate Amplifier Board

DS200FSAAG1ABA – Field Supply Amplifier Board

Technical Specifications

About the DS200FSAAG1ABA

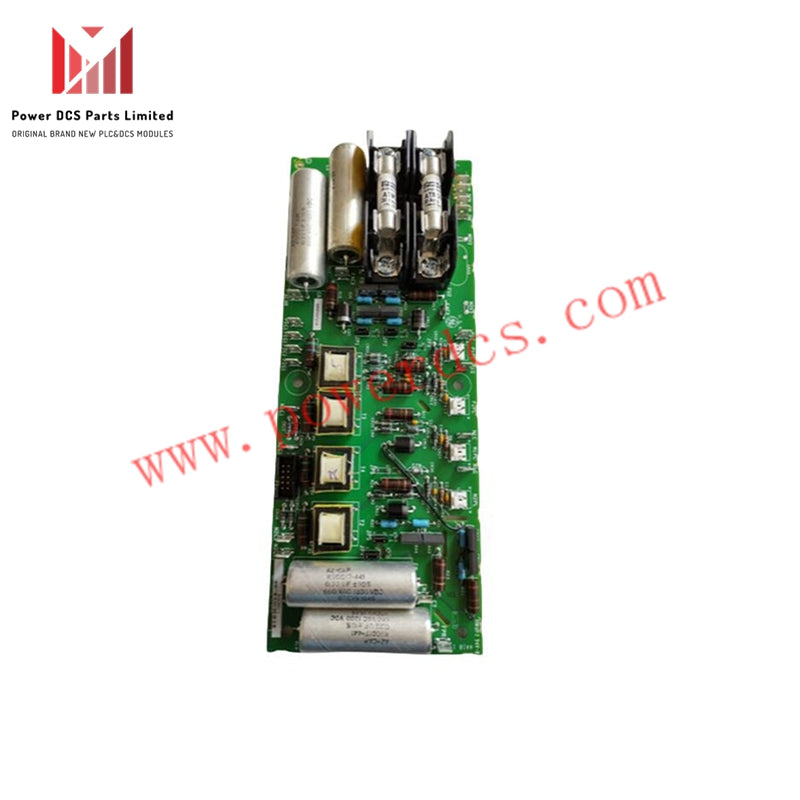

The DS200FSAAG1ABA Field Supply Gate Amplifier Board is a vital component originally manufactured for General Electric’s Mark V Series—a prominent product line using GE’s Speedtronic technology focused on turbine control systems.

This specific model (DS200FSAAG1ABA) is a later revision of the original Field Supply Gate Amplifier Board (DS200FSAAG1), enhanced by three significant product revisions unique to this variant.

Hardware Features and Specifications

• Equipped with 5 jumpers, one 10-pin connector, and two fuses

• Contains multiple test points for diagnostics and troubleshooting

• Sensitive to static electricity damage; follow proper handling procedures

• Packaging: Shipped in an anti-static sealed bag to prevent electrostatic discharge (ESD)

• Installation Tips:

• Keep the board in its sealed bag until ready for installation

• Wear a wrist strap connected to a grounded unpainted metal surface to dissipate static

• Avoid unnecessary movement while handling the board, especially in dry or cool environments, to minimize static buildup

Frequently Asked Questions (FAQ)

Q: How many fuses does the DS200FSAAG1ABA have?
A: It contains two Limitron fast-acting fuses, each rated at 600 volts and 30 amps.

Q: What are the main connectors on the DS200FSAAG1ABA?
A: The main connectors are P1PL, P2PL, N1PL, and N2PL. Each is a 2-pin connector located at the top of the board.
