GE DS200SDCCG1AEC – High-Performance Power Supply Module

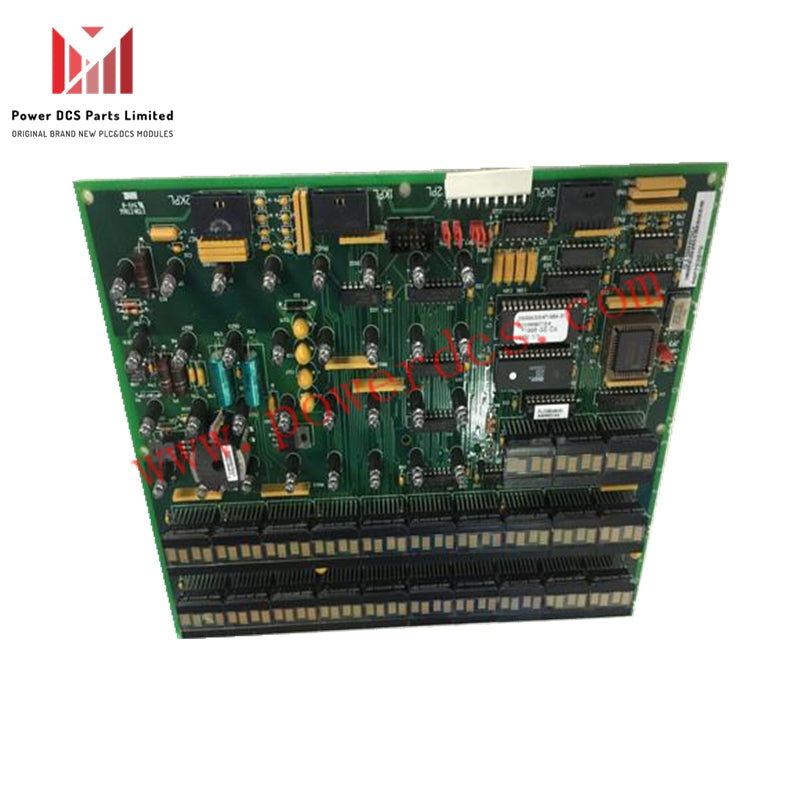

GE DS200SDCCG1AEC – Drive Control Board (Mark V Series)

Part Number: DS200SDCCG1AEC
Functional Description: Drive Control Card
Functional Acronym: SDCC
Manufacturer: GE – General Electric
Series: Mark V Speedtronic
Instruction Manual: GEI-100029
PCB Coating: Normal
Revisions:

• Functional Revision 1: A

• Functional Revision 2: E

• Artwork Revision: C
  Compatible Auxiliary Boards: SLCC, LCC, SPC, PSCB

Product Overview

The DS200SDCCG1AEC is a Drive Control Board designed for use within GE's Mark V Series of turbine control systems. As a key controller, this board manages automated drive operations in systems supporting steam, gas, or wind turbines.

Although part of a now legacy product series, the Mark V was among the final GE systems to incorporate the patented Speedtronic control technology—originally launched in the 1960s with the Mark I series. The DS200SDCCG1AEC is an enhanced version of the original DS200SDCCG1 board, distinguished by three significant internal revisions for improved functionality.

Hardware Features & Specifications

• Microprocessor Architecture:

• Includes 3 microprocessors

• Features shared RAM, accessible by all microprocessors for real-time control coordination

• Diagnostic & Testing Capabilities:

• Normal operation: LEDs flash sequentially

• Slow flashing: error codes 001–399

• Fast flashing: error codes 400–1023

• 10 onboard diagnostic LEDs arranged in a row:

• Test points (metal posts) available for signal path probing

• Diagnostic data can be downloaded via serial connection to a laptop

• Troubleshooting Tools:

• Visual LED error indication

• Serial diagnostic port for data retrieval and analysis

• Use only approved and calibrated test equipment

• Testing should be conducted by qualified personnel only

• Board Identification by Part Number (DS200SDCCG1AEC):

• Functional Revision A

• Functional Revision E

• Artwork Revision C

• DS200 – Domestic GE manufacturing & standard Mark V assembly

• SDCC – Functional acronym: Speedtronic Drive Control Card

• G1 – Group 1 classification in the Mark V system

• AEC – Revision history:

Installation & Handling Notes

• Safety First: Always remove power before installing or servicing the board to prevent electric shock or equipment damage.

• Static Sensitivity: This board is ESD-sensitive. Use proper grounding straps and anti-static packaging when handling.

• Auxiliary Boards: Often works in conjunction with:

• SLCC – Serial Link Communications Card

• LCC – Local Control Card

• SPC/PSCB – Signal Processing or Power Supply Control Boards
