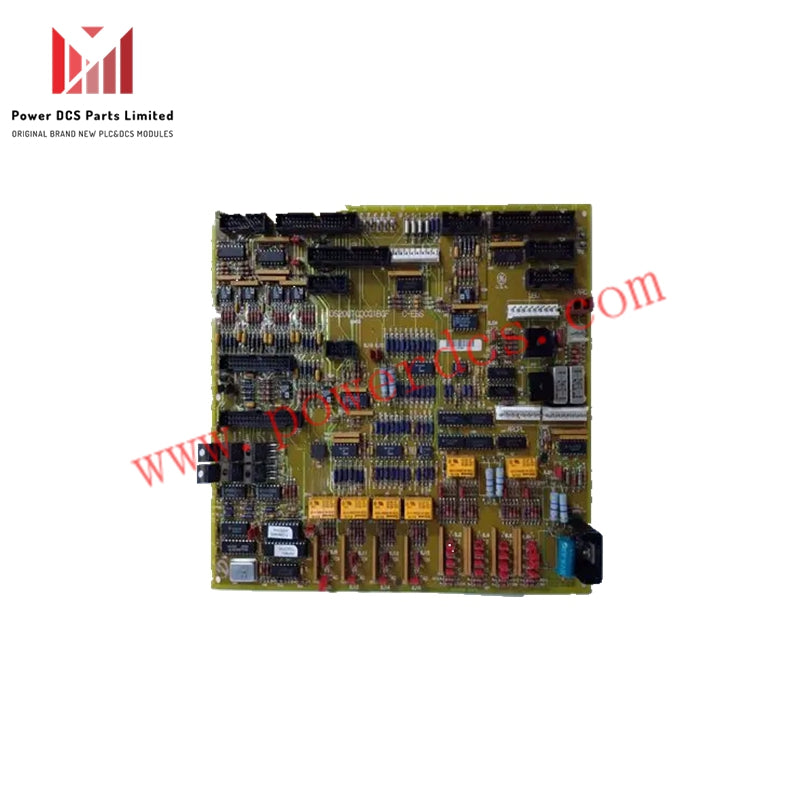

GE DS200SLCCG1ACC - Advanced LAN Communication Card

GE DS200SLCCG1ACC – LAN Communications Card (Mark V Series)

Part Number: DS200SLCCG1ACC
Functional Description: LAN Communications Card
Functional Acronym: SLCC
Manufacturer: GE – General Electric
Series: Mark V (Speedtronic)
Instruction Manual: GEI-100162
PCB Coating: Normal Coating
Revisions:

• Functional Revision 1: A

• Functional Revision 2: C

• Artwork Revision: C

Product Overview

The DS200SLCCG1ACC is a LAN (Local Area Network) communications card designed by GE General Electric as part of the Mark V Turbine Control System Series. This card is intended for use in a variety of drives and exciters across the GE industrial automation family.

The Mark V Series, to which this card belongs, supports control and management of wind, steam, and gas turbine automated drive systems. Although now discontinued and considered an obsolete legacy series, the Mark V Series remains relevant due to its use of the proprietary Speedtronic control system technology, first introduced in the late 1960s with the Mark I Series.

Hardware Features & Specifications

• Communication Capabilities:

• Supports both DLAN and ARCNET network connections

• Provides the host drive with required processors for LAN communication

• Offers both isolated and non-isolated communication circuits

• Key Components:

• Integrated LAN Control Processor (LCP) as the primary processing unit on the card

• Two onboard EPROM memory modules store the program memory for the LCP

• Communication with the drive’s control board through dual-ported RAM

• User Interface:

• Compatible with an attachable 16-position alphanumeric keypad

• Provides access to system control settings and diagnostic information

• Voltage Protection:

• Incorporates standardized voltage suppression hardware including capacitors, resistors, transistors, and integrated circuits to ensure reliability

• Revision Note:

• This DS200SLCCG1ACC card is an updated version of the original DS200SLCCG1 LAN Communications Card

• It includes three significant revisions that enhance functionality and design
