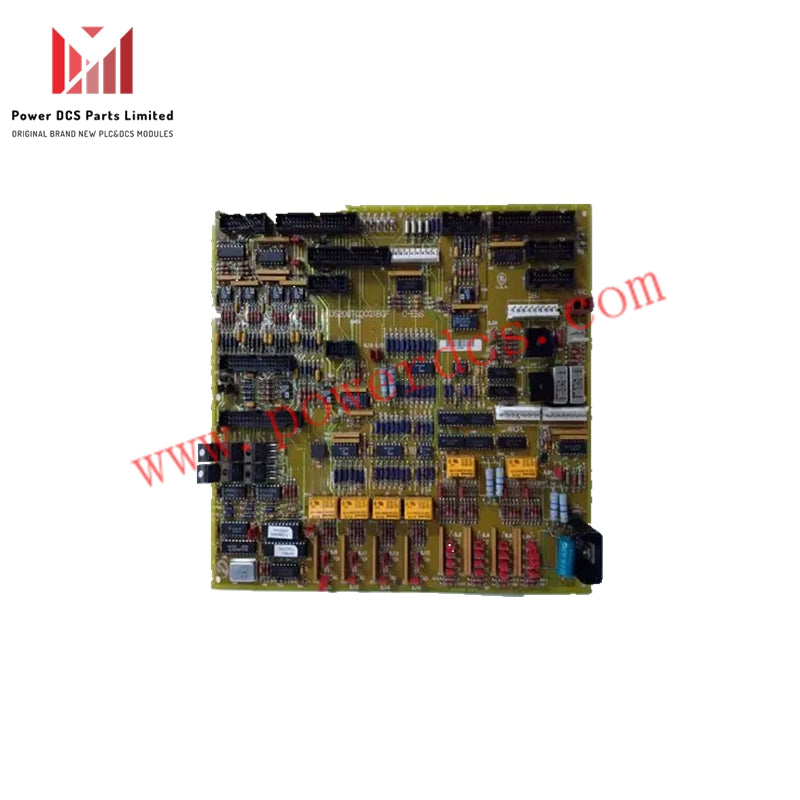

GE DS200SLCCG1AHH Communication Board New arrival

GE DS200SLCCG1AHH – LAN Communication Card (Mark V Speedtronic Series)

Manufacturer: General Electric
Series: Mark V Speedtronic
Part Number: DS200SLCCG1AHH
Functional Acronym: SLCC
Description: LAN Communication Card
Assembly Type: Normal Assembly
Revision Quantity: 3 Revisions

About the DS200SLCCG1AHH

The DS200SLCCG1AHH is a LAN Communications Module designed as a Mark V board component. It features a 16-digit alphanumeric display mounted on its surface, providing a user-friendly interface.

This module is part of a broader family of SLCC modules stocked by AX Control. It is important to verify your existing part number before ordering to ensure compatibility. Typically, DS200 series boards like this one do not come with software EPROMs (U6 and U7) pre-installed. In most cases, you will need to transfer these EPROMs from your old board to the new one upon arrival. If you require a board with EPROMs pre-installed, consider ordering a DS215 series board instead.

Hardware Features & Specifications

• Designed for the Mark V Turbine Control System Series automated drives.

• The DS200SLCCG1AHH mounts directly on the SDCC module and connects via a ribbon cable to the KPPL connector on the SLCC board.

• The SDCC cover snaps over the SLCC board, leaving the 16-digit alphanumeric display visible.

• Four protective pins at the end of the display prevent damage to the glass cover but are not jumpers.

• Jumper settings (both berg-type and wire jumpers) are detailed in the related user guides.

• Standard voltage-limiting components on board include resistors, diodes, resistor network arrays, and capacitors.

Additional Details

• The DS200SLCCG1AHH part number itself encodes useful information:

• DS200: Indicates standard Mark V Series assembly and domestic manufacture.

• SLCC: Functional acronym for LAN Communications Card.

• G1: Series grouping indicating a Mark V Group 1 product with normal PCB coating.

• The final three alphanumeric characters represent three key product revisions.
