GE Electric | IS200AEADH4ADA | High-Density Analog Input/Output Module

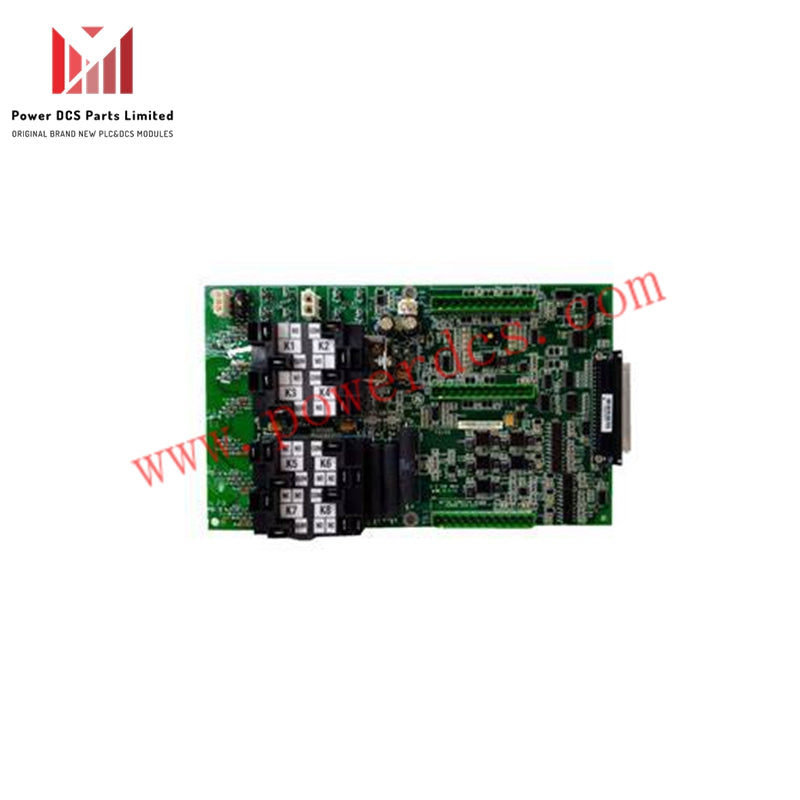

IS200AEADH4ADA Simplex Analog Input Terminal Board

Manufacturer: General Electric (GE)
Series: Mark VIe
Product Type: Simplex Analog Input Terminal Board
Model Number: IS200AEADH4ADA
Functional Acronym: STAI

Overview

The IS200AEADH4ADA is a Simplex Analog Input (STAI) Terminal Board developed by General Electric for the Mark VIe Series used in distributed control systems. This compact board is designed to connect and interface analog signals between field devices and control systems.

Key Features

• Analog Inputs:
  Supports 10 analog input channels that accept signals from:

• Two-wire transmitters

• Three-wire transmitters

• Four-wire transmitters

• Externally powered transmitters

• Analog Outputs:
  Provides 2 jumper-configurable analog output channels:

• One channel supports 0–20 mA

• One channel supports 0–200 mA

• Form Factor:
  Only available in simplex configuration

• Terminal Type:
  Equipped with high-density Euro-block terminal connectors (48 terminals total)

• System Integration:
  Includes an onboard ID chip for automated system diagnostics and board identification

Installation & Mounting

• Mounted on a sheet metal carrier with an insulating plastic base

• Installs directly on a DIN rail or can be fastened to a cabinet via a metal assembly

• Shielded twisted-pair wiring (#18 AWG) is recommended for connections

Terminal Block Options

Two variations of terminal block configurations are available:

1. STAI 1:
   Features a permanently mounted terminal block with 48 fixed terminals.

2. STAI 2:
   Includes a right-angle header that supports pluggable terminal blocks, offering flexibility in maintenance and replacement.

• A designated I/O cable shield terminal is located near the terminal blocks for grounding shielded cables.

Supported Signal Types

Analog Inputs:

• Two-wire transmitter signals

• Three-wire transmitter signals

• Four-wire transmitter signals

• Externally powered transmitter signals

• Voltage inputs: 5 VDC and 10 VDC

Analog Outputs:

• Current output: 0–20 mA

• High-current output: 0–200 mA
