GE

GE F31X139APMALG2FR01 PCB MICRO APPLICATION BOARD

GE F31X139APMALG2FR01 PCB MICRO APPLICATION BOARD

  • Manufacturer: GE

  • Product No.: F31X139APMALG2FR01

  • Condition:in Stock

  • Product Type: MICRO APPLICATION BOARD

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 1000g

  • Shipping port: Xiamen

  • Warranty: 12 months

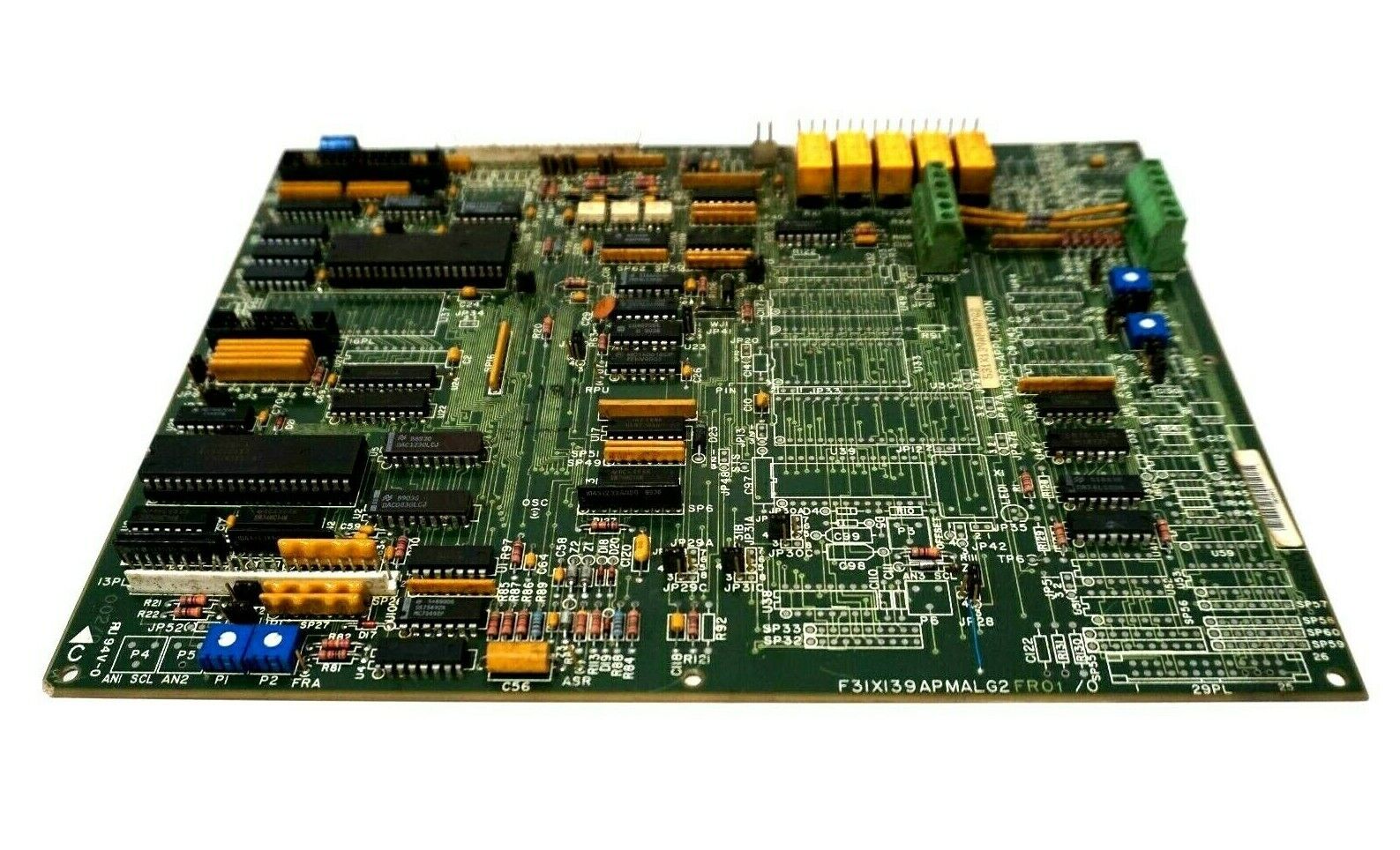

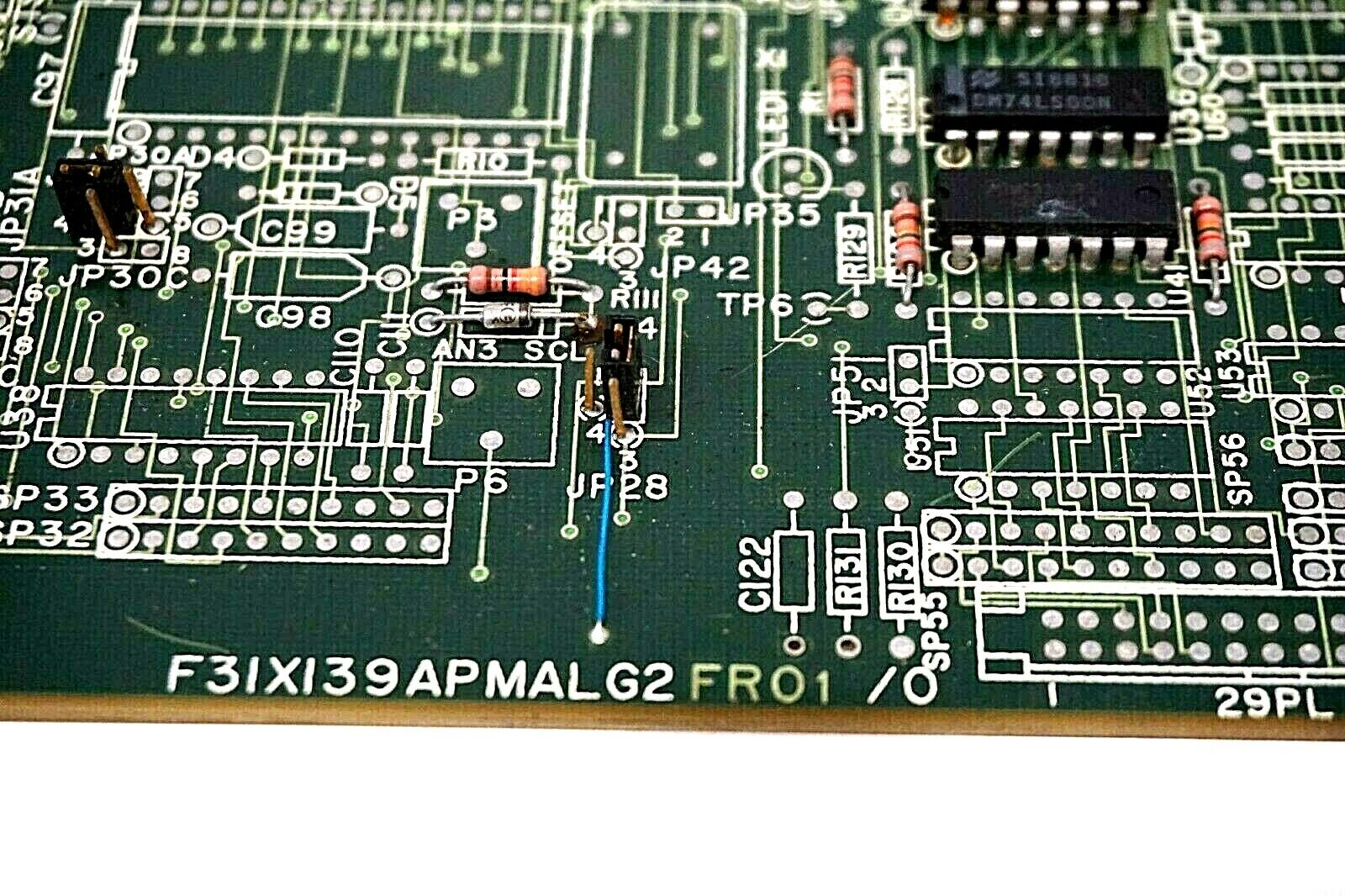

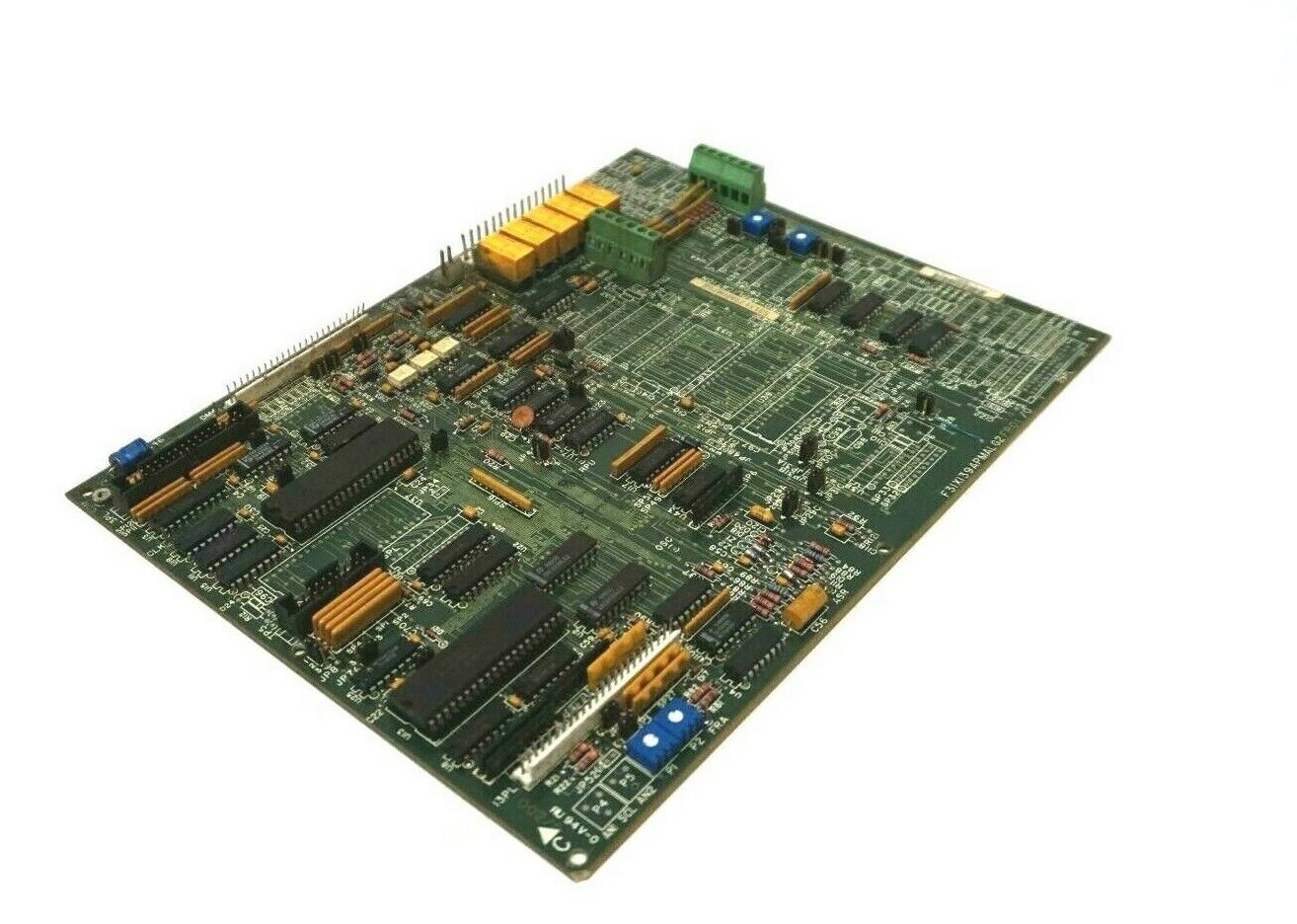

The F31X139APMABG2, or Micro Application Board, manufactured by GENERAL ELECTRIC, is a specialized circuit board intended for use in GE general-purpose drive systems, such as the DC-300 drive, commonly employed in industrial settings for diverse applications. This board, known alternately as 531X139APMACG2, contains several Plated Through Holes (PTHs) arranged in multiple lines, ranging from a couple to several dozen. The board is etched with specific codes like VA-4, 3986, FR00/1, 002/0, 005/0, and 004/0. It is drilled in various locations, including each corner, and also features surface wiring in at least one area.

Functionality and Components:

The F31X139APMABG2 serves as a Micro-Application Card, comprising two terminal strips facing each other, with six screw connections on their surface. The board incorporates two vertical (male) pin cable connectors, four header connectors varying from two pins to 24 pins, and individual terminal pin connectors.

Components on the Board:

The board includes five relays, four potentiometers, over twenty jumper switches and resistor network arrays, as well as diodes, resistors, and capacitors. Metal film is commonly used for resistors, while capacitors are crafted from ceramic or polyester vinyl materials. Additionally, the board houses more than two dozen integrated circuits, each serving specific functions within the broader system.
