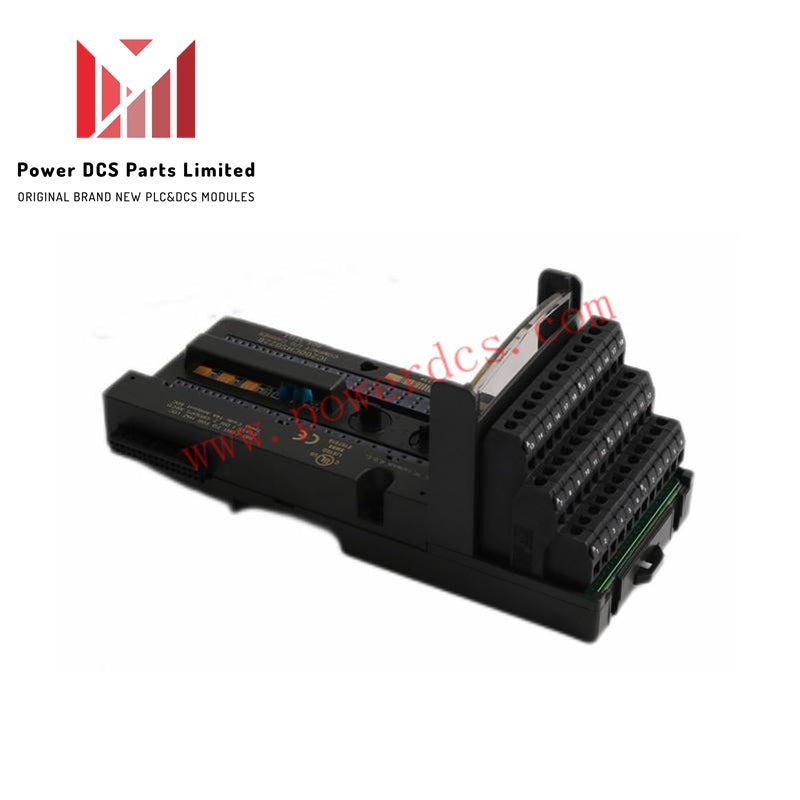

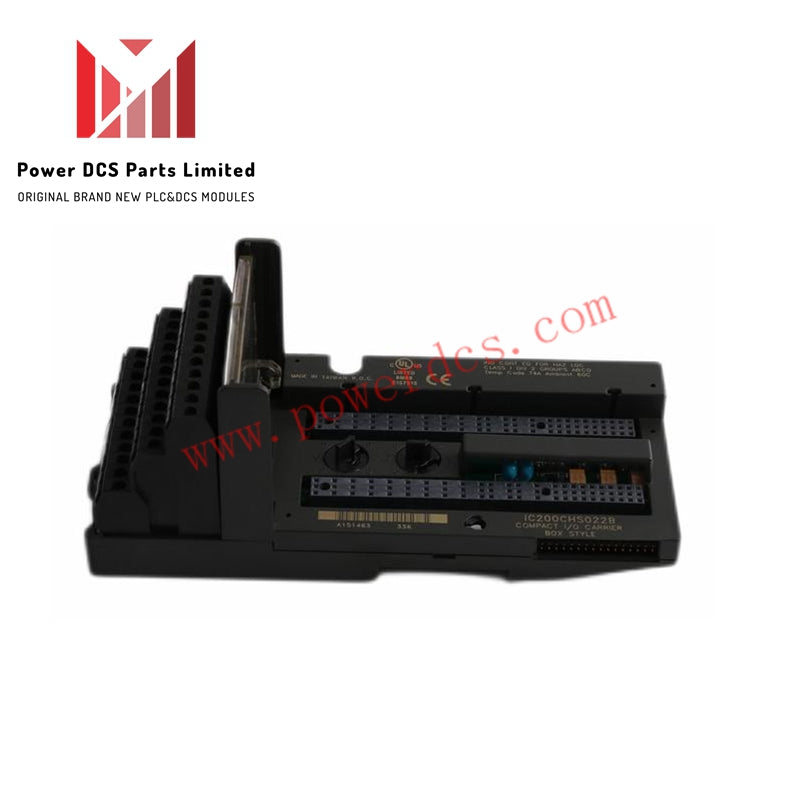

GE Fanuc IC200CHS022L Compact Box-Style I/O Carrier

Specifications

  • Manufacturer: GE

  • Product No.: IC200CHS022L

  • Condition： 10 Items in Stock

  • Product Type: Compact Box-Style I/O Carrier

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 420g

  • Shipping port: Xiamen

  • Warranty: 12 months

Product details

Description

Description

The IC200CHS022L is a compact box-style I/O carrier module from GE Fanuc's VersaMax series, designed for efficient field wiring with 36 terminals and versatile mounting options.

Electrical Features

  • Voltage Rating: 0-264 VAC

  • Current Rating per Point: 2 Amps

  • Current Rating per Power Terminal: 8 Amps

  • Maximum Voltage per Point: 264 Volts AC

  • Transient Voltage Rating: Up to 300 VAC

Dimensions

  • Height: 167.89 mm (6.61 in)

  • Length: 66.80 mm (2.63 in)

Connections & Setup

  • Single-Wire Cross Section: 0.36 mm² to 2.1 mm²

  • Two-Wire Cross Section: Up to 0.86 mm²

  • Compatible Wire Size: AWG #14 to AWG #22 for single-wire connections; AWG #18 for two-wire connections

Mounting & Installation

  • Mounting Options: DIN Rail or Panel Mounting
