GE FANUC IC200UDR140 Power Supply: Industrial Control Module

Product Overview

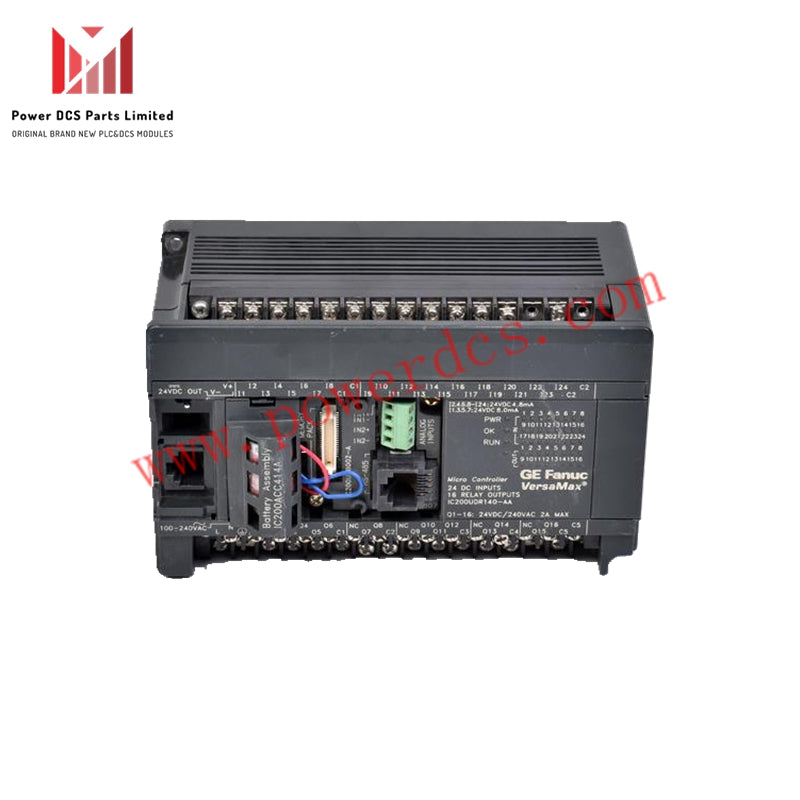

The IC200UDR140 is a VersaMax Micro 40-point Programmable Logic Controller (PLC) developed by GE Fanuc/Emerson. This compact, microprocessor-based PLC is designed for industrial automation systems requiring flexibility, scalability, and fast adaptability. With built-in I/O and expansion capability, it's ideal for industries where production lines, equipment, and control processes must evolve quickly.

Technical Specifications

I/O Configuration

• Total Built-in I/O Points: 40

• Discrete Inputs: 24 (24V DC)

• Relay Outputs: 16

• Expandable I/O:

• Supports up to 4 I/O expansion modules

• Max I/O capacity: 176 points

Construction & Protection

• Form Factor: Open style

• Ingress Protection Rating: IP20

• Installation Notes:

• Requires protective enclosure in harsh environments

• Installation, maintenance, and servicing should be performed by qualified technicians only

Communication Interfaces

• Serial Ports:

• Port 1: RS-232

• Port 2: RS-485

• Network Support:

• Compatible with VersaMax SE modules

• Supports Ethernet connectivity

Performance Features

• Real-Time Clock: Built-in

• High-Speed Counters:

• Operates with PWM pulse trains

• Supports frequencies up to 5 kHz

Modular Expansion Support

• Compatible with a wide range of VersaMax expansion modules, including:

• Discrete input/output modules

• Analog input/output modules

• RTD modules

• Thermocouple modules

• Motion control modules

Key Features

• Compact micro PLC with built-in 40-point I/O

• Modular, scalable design allows up to 176 I/O points

• Integrated RS-232 and RS-485 serial ports

• Real-time clock and high-speed counting capabilities

• Suitable for fast-changing industrial environments

• Requires protective enclosure in hazardous areas
