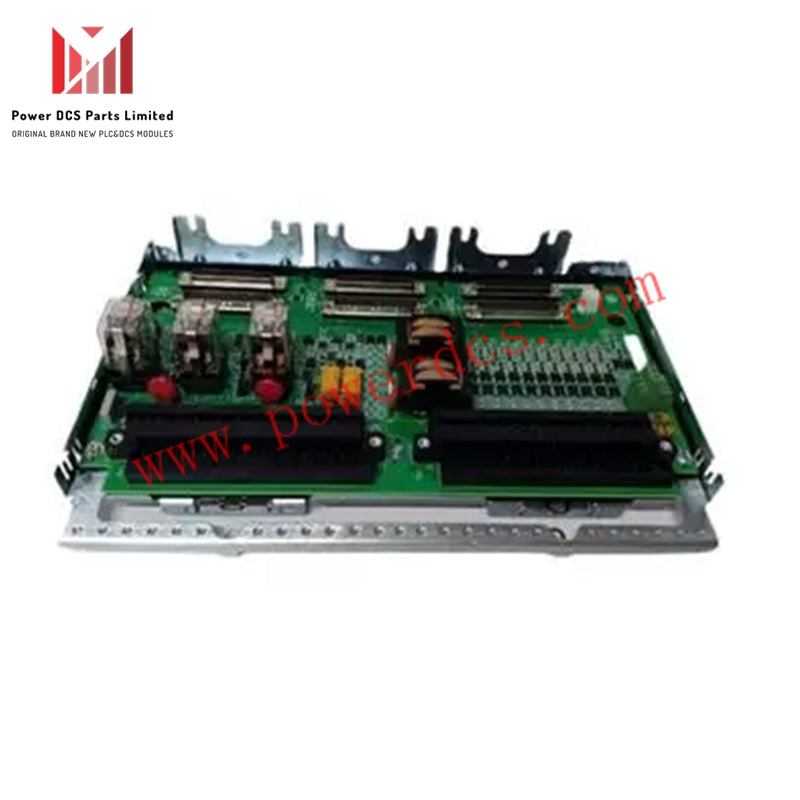

GE Fanuc IS200AEPAH1BDB Printed Circuit Board In Stock

GE IS200AEPAH1A

Alternative Energy Pitch Axis PCB
Mark VIe Wind Series

Manufacturer Details

• Manufacturer: GE Energy

• Series: Mark VIe Wind

• Part Number: IS200AEPAH1A

• Functional Acronym: AEPA

• PCB Coating: Conformal Coating

• Functional Revision: A

Overview

The IS200AEPAH1A is a printed circuit board (PCB) designed by GE specifically for the Mark VIe series, a part of the Speedtronic turbine control line. While the Speedtronic technology originated in the 1960s for steam and gas turbines, this particular IS200AEPAH1A model is tailored for wind turbine applications. It serves as an Alternative Energy Pitch Axis controller and is an upgraded revision of the original IS200AEPAH1 board, featuring a single “A” grade functional revision.

Hardware Features and Specifications

• Auxiliary Board:
  The IS200AEPAH1A optionally supports an auxiliary board, attached via screws and standoffs.

• Connections:
  Communicates with the main processor board through two male pin connectors located at the upper left corner.

• Key Components:

• Multiple integrated circuits

• Two female phone plugs

• One three-pin female connector

• Two LED indicators positioned along the left edge

• Input/Output Types Supported:

• 8 analog inputs

• 1 incremental encoder input

• 1 absolute encoder input

• 1 analog output

• 20 discrete inputs

• 1 discrete output

• 8 relay outputs

• 2 RS-485 interfaces

• 1 brake control output

• Additional Details:

• The I/O types are similar to those on the Mark VIe Series BPPB board, also available from AX Control.

• Contains 12 relays and 6 metal oxide varistors (MOVs) arranged in a single line for surge protection.

• Features 17 female-pin vertical connectors along board edges, ranging from 2 to 20 pins.

• Large plated holes for voltage storage and protection.

• Construction:
  Includes hundreds of standard integrated circuits, resistors, transistors, and capacitors.
  A unique c-shaped metal housing labeled HW1 is mounted on the board.

Installation and Handling Recommendations

• Refer to original factory manuals and datasheets for detailed installation and safety instructions.

• The board is shipped protected with anti-static materials by AX Control.

• Use a grounding strap during unboxing and installation to ensure protection against lethal voltages.
