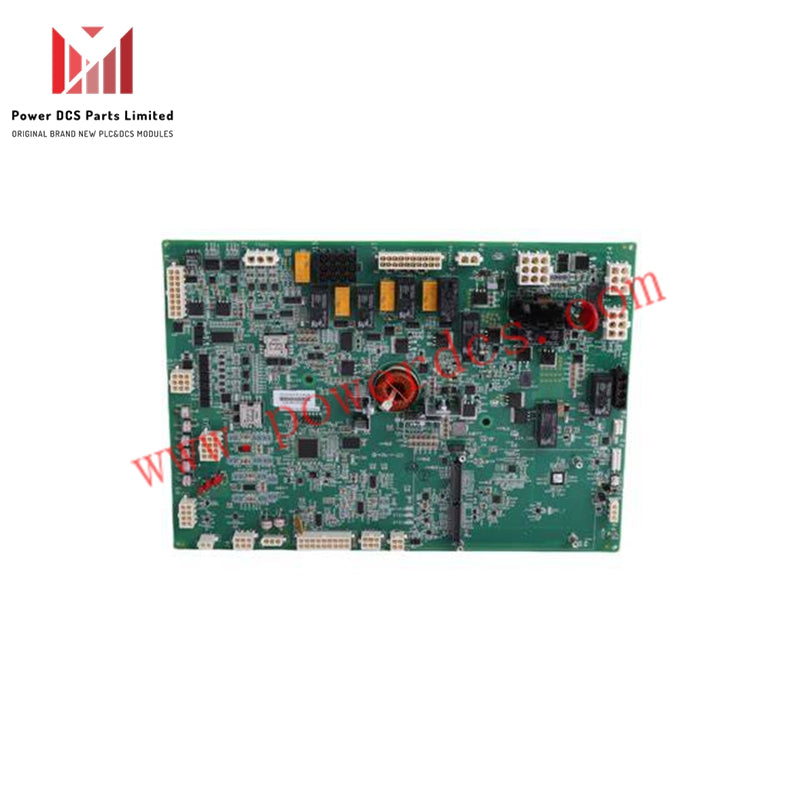

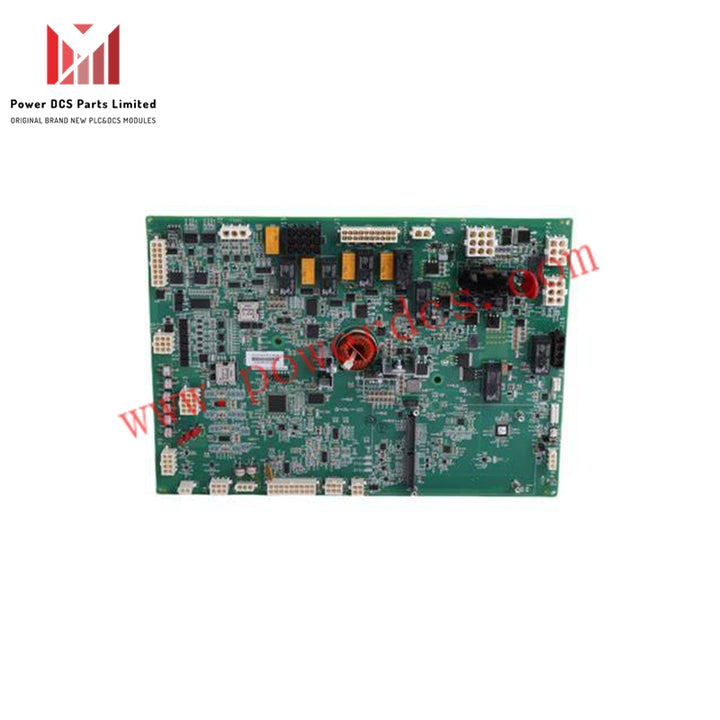

GE Fanuc IS200AEPAH1BHC/IS215WEPAH2AB Printed Circuit Board

Specifications

  • Manufacturer: GE

  • Product No.: IS200AEPAH1BHC(IS215WEPAH2BA)

  • Condition： 10 Items in Stock

  • Product Type: Printed Circuit Board

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 350g

  • Shipping port: Xiamen

  • Warranty: 12 months

Product details

Description

Product Overview

Manufacturer: GE General Electric
Part Numbers: IS200AEPAH1BHC / IS215WEPAH2AB
Product Type: Printed Circuit Board (PCB)
Series: Mark VI / Mark VIe
Stock Status: IN STOCK
Repair Time: 3–7 Days
Warranty: 1 Year
Dimensions: 110 mm × 66.8 mm × 50 mm
Weight: 0.3 kg

The GE Fanuc IS200AEPAH1BHC / IS215WEPAH2AB is a high-performance printed circuit board designed specifically for turbine control applications in GE's Mark VI and Mark VIe control systems. It is engineered for high reliability in demanding industrial environments, ensuring secure communication, efficient signal processing, and robust system integration. This board plays a key role in turbine safety and performance optimization.

Technical Specifications

Specification Details
Type Printed Circuit Board (PCB)
Functional Description Alternative Energy Pitch Axis (AEPA)
Processor Intel 82576 chip for high-speed signal processing
Network Interface 10/100/1000BASE-T Ethernet
PCB Coating Conformal coating for environmental protection
Functional Revisions 1, 2, 3, 4 (A, H, C)



Connectors & Indicators

  • Multiple integrated circuits

  • Two female phone plug connectors

  • One 3-pin female connector

  • Two status LEDs (light-emitting diodes)

Input/Output (I/O) Configuration

Type Quantity
Analog Inputs 8
Incremental Encoder Input 1
Absolute Encoder Input 1
Analog Output 1
Discrete Inputs 20
Discrete Output 1
Relay Outputs 8
RS-485 Interfaces 2
Brake Control Output 1



Additional Features

  • 12 relays for advanced control operations

  • 6 metal oxide varistors (MOVs) for surge protection

  • Built for harsh environments and continuous-duty operations

Certifications and Compliance

  • SWC (Surge Withstand Capability)

  • C37.90.1 EMI (Electromagnetic Interference compliance)

  • RFI Immunity (Radio Frequency Interference resistance)
