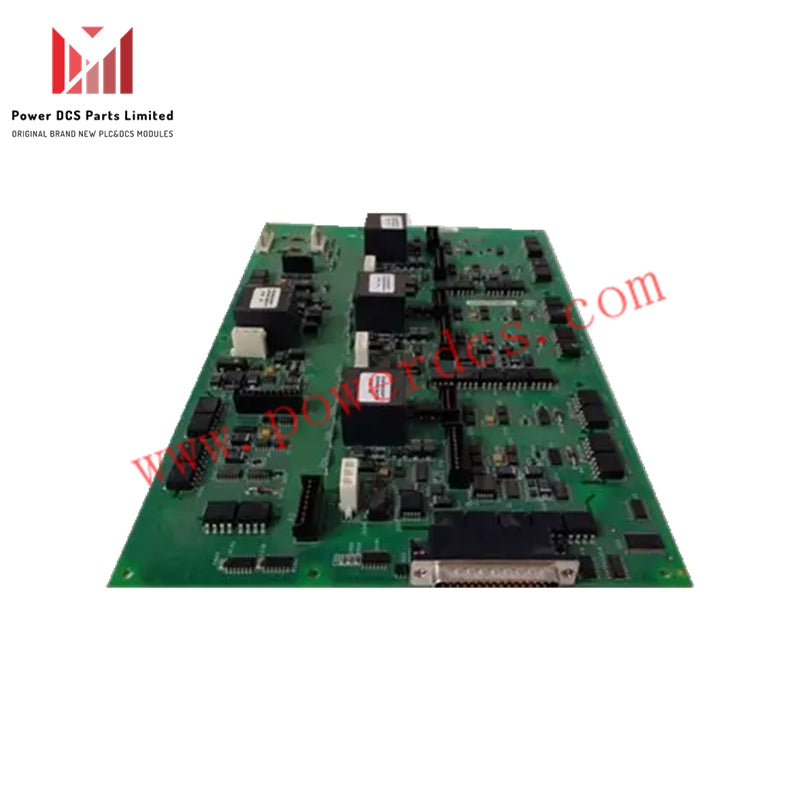

GE Fanuc IS210AEPSG1A AE Power Supply Board Brand New

IS210AEPSG1A Technical Specifications

• Manufacturer: GE Energy

• Series: Mark VIe Wind

• Part Number: IS210AEPSG1A

• Functional Acronym: AEPS

• Functional Description: AE Power Supply Board

• PCB Coating: Normal Coating

• Functional Revision: A

About the IS210AEPSG1A

The IS210AEPSG1A is a printed circuit board designed specifically for the Mark VIe turbine control system by General Electric’s shell company, GE Industrial Systems. The Mark VIe system is intended for gas and steam turbine management and represents one of the last releases in GE’s Speedtronic line, featuring Ethernet communications capabilities.

This IS210AEPSG1A Power Supply Board continuously monitors the turbine assembly for various conditions, including vibration, shaft voltage buildup, flame detection, and temperature anomalies. It uses both general-purpose and application-specific input/output signals to perform these tasks.

The IS210AEPSG1A is a modified version of the preexisting IS210AEPSG1 product, incorporating one functional revision rated “A.”

Hardware Tips and Specifications

• The IS210AEPSG1A is a compact, component-dense power supply board.

• It features factory-drilled mounting holes in all four corners, plus additional drill marks throughout the board. These holes are insulated to prevent damage from surface voltages during operation.

• For voltage and surge protection, the board includes transformers, an inductor coil, and a dedicated power supply.

• It is equipped with four pairs of fuses of various sizes, including a separate line of four fuses near the left edge.

• Resistors are metal film types; metal-oxide varistors, ceramic capacitors, and polyester vinyl capacitors are also used.

• High-voltage electrolytic capacitors appear on the surface, sometimes grouped singly or in pairs.

• The board includes eleven heat sinks, multiple stab-on connectors, plug connectors, and header connectors (ranging from 3-pin to 8-pin).

• Numerous LEDs are present for fault detection and diagnostics.

• Integrated circuits, test points (TP), and transistors are incorporated.

• All components are protected beneath a normal-style PCB coating, which offers thicker, durable protection compared to conformal coating, though it is not chemically exhaustive.

Additional Information

The normal PCB coating type and detailed functional revisions are identifiable through the IS210AEPSG1A’s part number. For an in-depth breakdown of this part number and more detailed technical data, please refer to the IS210AEPSG1A part number breakdown available in the “manuals” tab.
