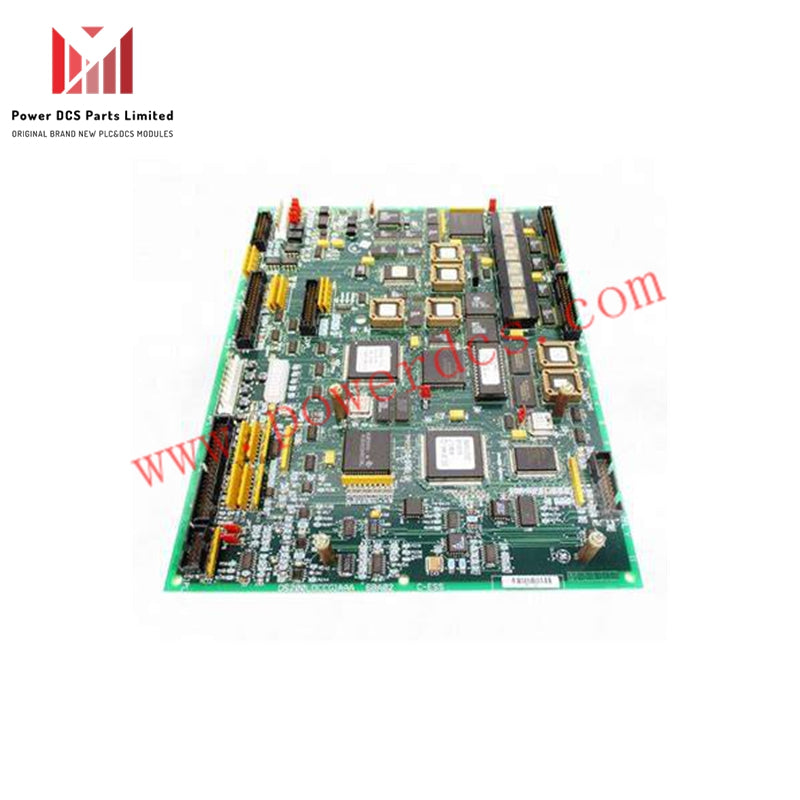

GE General Electric DS200LDCCH1AJA Control Unit Quotation

Part Number: DS200LDCCHJA
Manufacturer: GE General Electric
Series: Mark V / EX2000
Product Type: Drive Control / LAN Communications CD/CC Drive Board
Instruction Manual: GEI-100216
Weight: Approx. 1 lb
Shipping Dimensions: 16 in x 12 in x 12 in
Country of Manufacture: United States

Product Overview

The DS200LDCCHJA is a Drive Control and Local Area Network (LAN) Communications Board designed by GE General Electric for use in the Mark V and EX2000 series drive and exciter systems, including compatibility with DIRECTO-MATIC 2000 drives. This board offers key drive control features including operator interface, LAN communication, motor control, and drive reset capabilities.

As a revised version of the original DS200LDCCH1 parent board, the DS200LDCCH1A includes an A-rated functional revision, enhancing functionality and potentially altering some performance or dimensional characteristics.

Key Features

• Provides LAN communication and integrated motor/drive control

• Designed for GE Mark V and EX2000 systems

• Compatible with DIRECTO-MATIC 2000 drives

• Features onboard diagnostic and operator interface

• Supports reset functions for software and hardware faults

Onboard Microprocessors

The board is equipped with four specialized microprocessors, each handling specific operational tasks:

An alphanumeric keypad is included for direct access to system settings, diagnostic routines, and software adjustments.

Design and Construction

• Functional Acronym: LDCC

• PCB Coating: Conformal coating (standard for Mark V series)

• Group: Group 1 Mark V Series assembly

• Build Origin: Manufactured in the USA

• Revision: Functional Revision A (A-rated for improved performance)

Applications & Capabilities

• Microprocessor-based control of drive, motor, and I/O functions

• LAN drive I/O communications management

• Execution of customer-specific software configurations

• Onboard software-based diagnostic testing

• Operator interface support for configuration and system monitoring

• Soft and hard reset capabilities for fault recovery

Shipping, Installation, and Documentation

• Ships in anti-static, protective packaging

• Installation instructions, wiring diagrams, and support documentation are available in the GEI-100216 instruction manual and board-specific datasheets

• Designed for ease of integration into legacy GE Mark V systems
