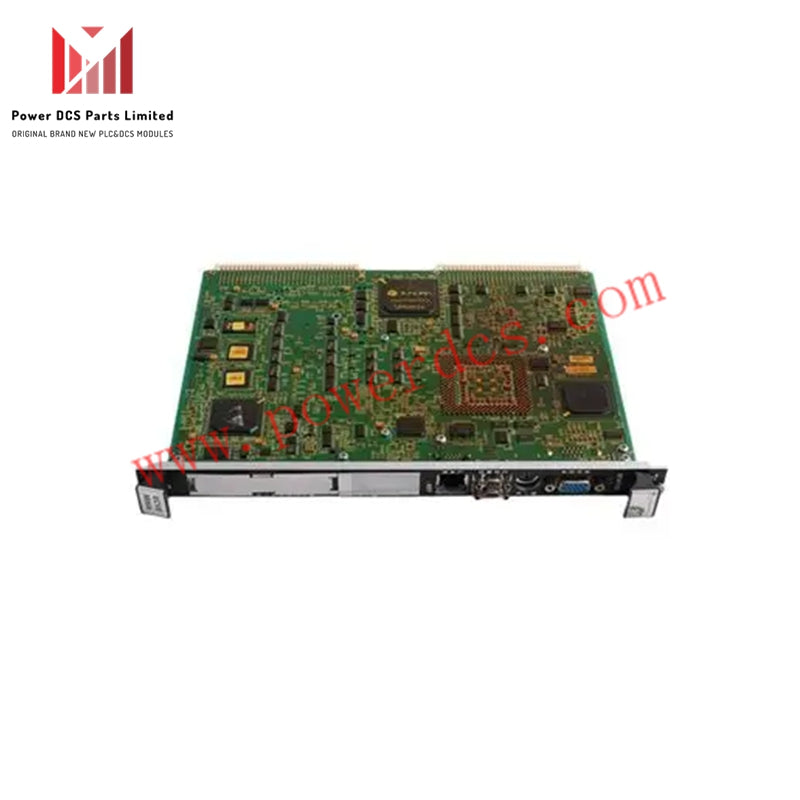

GE IS200AEPAH1BCA (IS215WEPAH2BA) Printed Circuit Board

IS215WEPAH2B Technical Specifications
Manufacturer: GE Energy
Series: Mark VIe Speedtronic
Part Number: IS215WEPAH2B
Functional Acronym: WEPA
Functional Description: Wind Energy Pitch Axis
PCB Coating: Conformal Coating
Functional Revision: B

About the IS215WEPAH2B

The IS215WEPAH2B is a printed circuit board serving as a Wind Energy Pitch Axis within the GE Energy Mark VIe Speedtronic Series, a wind turbine control system line. Its functional role as a Wind Energy Pitch Axis is indicated by its unique functional acronym embedded in the part number.

This model is a modified version of the original IS215WEPAH2B, featuring a single functional revision rated "B." This revision enhances the overall functionality and efficiency of the pitch axis without altering its physical dimensions or appearance.

Hardware Tips and Specifications

Like other GE Energy Mark VIe series PCBs, the IS215WEPAH2B is equipped with numerous specialized hardware components that enable its operation as a Wind Energy Pitch Axis. Key to its performance are its input/output (I/O) types, which include:

• 8 analog inputs

• 1 incremental encoder input

• 1 separate analog input

• 20 discrete inputs

• 2 discrete outputs

• 9 relay outputs

• 2 RS-485 communication interfaces

• 2 pulse-width modulated (PWM) control outputs

Besides the I/O configurations, the "IS215" prefix in the part number indicates this PCB is a special modular assembly. Specifically, the IS215WEPAH2B consists of the AEPAH1B board combined with a BPPB attached daughterboard.
