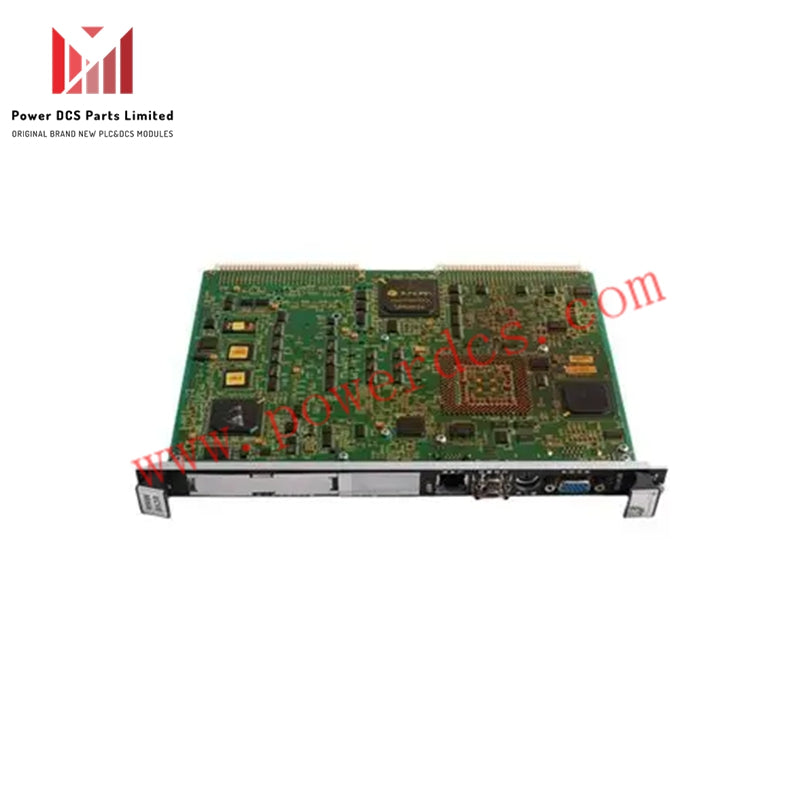

GE IS200AEPAH1BFC (IS215WEPAH2BA) Printed Circuit Board

IS215WEPAH2B Technical Specifications
Manufacturer: GE Energy
Series: Mark VIe Speedtronic
Part Number: IS215WEPAH2B
Functional Acronym: WEPA
Functional Description: Wind Energy Pitch Axis
PCB Coating: Conformal Coating
Functional Revision: B

About the IS215WEPAH2B

The IS215WEPAH2B is a printed circuit board (PCB) serving as a Wind Energy Pitch Axis within GE Energy’s Mark VIe Speedtronic Series, a line of automated drives and control components for wind turbine systems. The designation as a Wind Energy Pitch Axis is indicated by its unique functional acronym embedded within the product part number.

This model is a modified version of the original IS215WEPAH2B, featuring a single functional revision rated "B." This revision enhances the overall functionality and efficiency of the Pitch Axis without changing its appearance or dimensions.

Hardware Features and Specifications

Like other GE Energy Mark VIe series PCBs, the IS215WEPAH2B contains numerous specialized hardware components that support its function as a Wind Energy Pitch Axis. Key among these are its input/output (I/O) capabilities, which include:

• 8 analog inputs

• 1 incremental encoder input

• 1 separate analog input

• 20 discrete inputs

• 2 discrete outputs

• 9 relay outputs

• 2 RS-485 communication interfaces

• 2 pulse-width modulated (PWM) control outputs

In addition to its I/O configurations, the “IS215” prefix at the start of the part number denotes that this PCB is a special modular assembly. Specifically, the IS215WEPAH2B consists of the AEPAH1B board combined with a BPPB attached daughterboard.
