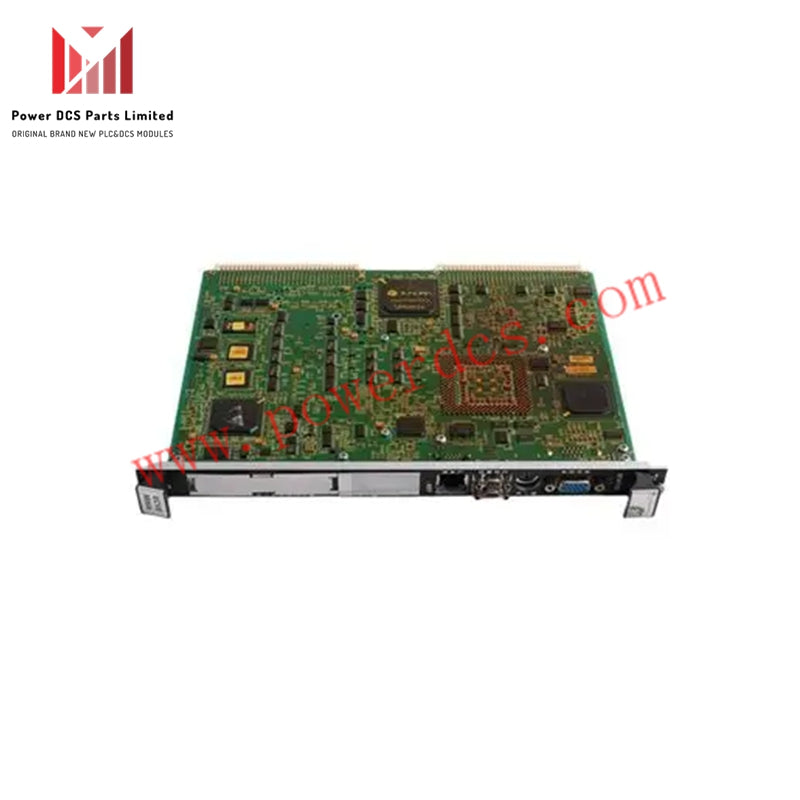

GE IS200AEPAH1BPR5 Printed Circuit Board High Quality

IS200AEPAH1A Technical Specifications
Manufacturer: GE Energy
Series: Mark VIe Wind
Part Number: IS200AEPAH1A
Functional Acronym: AEPA
Functional Description: Alternative Energy Pitch Axis
PCB Coating: Conformal Coating
Functional Revision: A

About the IS200AEPAH1A

The IS200AEPAH1A is a printed circuit board (PCB) manufactured by GE for the Mark VIe series. The Mark VIe series is part of General Electric’s Speedtronic line, originally designed for steam and gas turbine control since the 1960s, and has been released in various versions since. This particular model is specified primarily for wind turbine applications. It serves as an Alternative Energy Pitch Axis and is a revised version of the original IS200AEPAH1 board, featuring a single functional revision rated “A.”

Hardware Overview and Specifications

• The IS200AEPAH1A is designed with an optional auxiliary board, which attaches via screws inserted into standoffs.

• Communication with its main processor board occurs through two male pin connectors located at the upper left corner of the board.

• The board includes multiple integrated circuits, two female phone plugs, a three-pin female connector, and two LEDs. Additional LED indicators are positioned along the left edge of the base board.

Input and Output (I/O) Types Supported:

• 8 Analog Inputs

• 1 Incremental Encoder Input

• 1 Absolute Encoder Input

• 1 Analog Output

• 20 Discrete Inputs

• 1 Discrete Output

• 8 Relay Outputs

• 2 RS-485 Interfaces

• 1 Brake Control Output

These I/O configurations mirror those found on the Mark VIe Series’ BPPB daughterboard, which is also available separately.

Additional Hardware Features

• The IS200AEPAH1A PCB includes twelve relays for various control functions.

• It features six metal oxide varistors aligned in a row for surge protection. (Varistors are variable resistors whose resistance depends on the applied voltage.)

• Along the edges of the board, there are seventeen female-pin vertical connectors, ranging in size from 2 to 20 pins.

• The board surface contains several large factory-made holes, mostly plated to aid in voltage storage and protection.
