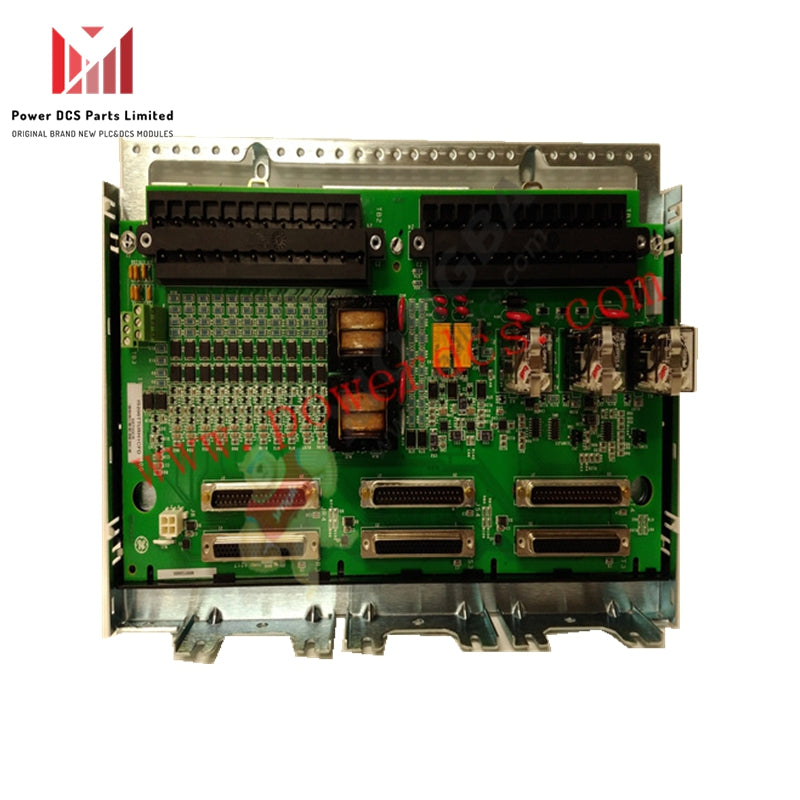

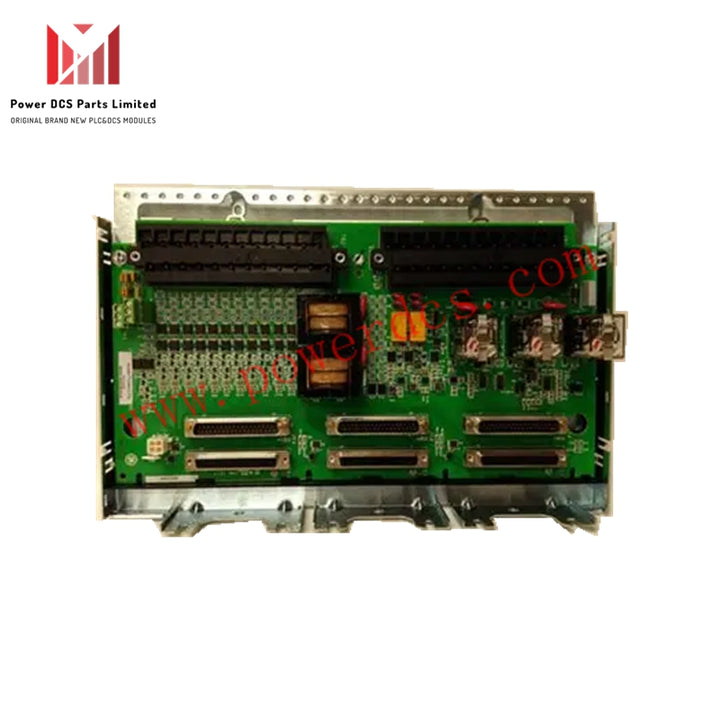

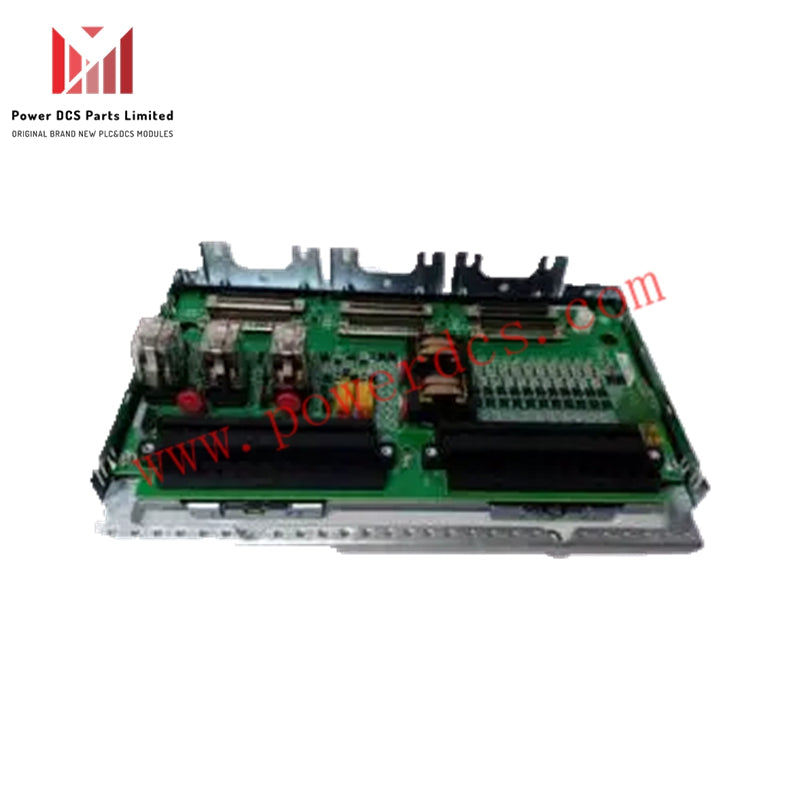

GE IS200TTURH1CFD (IS230TNTRH1C) Turbine Terminal Board

Category: GE
Tags: A main board, AI terminal board, Amplification board, Analog input module, Analog module, Analog output board, Board from embedded system, Board type instrument STU, Bus module, Central controller, Central processing unit module, CI Family Controller, Circuit board, Combustion status detection module, Communication module, Control board, Control board card, Control box, Control circuit board, Control module, Control motherboard, Control panel, Control system module, Control unit system, Controller module, CPU data processing board, CPU module, CPU processor module, Data acquisition module, Digital quantity module, Distributed control card, Electric vibration monitoring module, Functional motherboard, I/O module, Interface board, Measurement board, PCB board, Power module, Processing module, Ship motherboard

Product Overview: IS200TTURH1CFD / IS230TNTRH1C

The IS200TTURH1CFD / IS230TNTRH1C is a Printed Circuit Board (PCB) developed by General Electric (GE), specifically for use within the Mark VIe Series of turbine control systems. This board is more accurately classified as a Terminal Turbine Board, based on the functional specifications outlined in GE’s official instruction manual.

This particular model is a modified and enhanced version of the base IS200TTURH1 board, featuring:

• C-level major functional revision

• F-level minor functional revision

• D-level single artwork revision

The board is produced by GE Industrial Systems, a specialized division of GE responsible for manufacturing Mark VIe system components.

Functional Role

The IS200TTURH1CFD / IS230TNTRH1C serves as a primary turbine trip terminal board within the Mark VI control system. It plays a critical role in turbine protection and directly interfaces with the VTUR module.

Key compatibility notes:

• Compatible with PTURH1A, TTURH1C, and STUR boards

• Not compatible with DIN rail-mounted DTUR modules or other TTUR variants

Hardware Features & Specifications

This terminal turbine board incorporates several specialized hardware components, each supporting key control and protection functions within the larger turbine control architecture.

Primary functions include:

• Acting as the terminal for 48 input/output connections essential for operation of the VTUR Turbine Control Board Assembly

• Controlling the 52G main breaker relay coil associated with the VTUR system

As with most general-purpose electrical PCBs, full functionality and integration are best understood in relation to the broader control system in which the board operates.
