GE IS210AEBIH1BOA Analog Expansion Bridge Interface Card

GE IS210AEBIH1B – AE Bridge Interface Card (Mark VIe Wind Series)

• Part Number: IS210AEBIH1B

• Manufacturer: GE Energy

• Series: Mark VIe Wind

• Product Type: AE Bridge Interface Card

• Functional Acronym: AEBI

• PCB Coating: Conformal Coating

• Functional Revision: B

• Country of Origin: United States (USA)

• Shipping Dimensions: 18 x 12 x 12 inches

• Shipping Weight: 6 lbs

• Board Weight (Unpackaged): Approx. 0.75 lbs

• Availability: Request Quotation (New Factory Package and Refurbished options may be available)

Product Overview

The GE IS210AEBIH1B is an AE Bridge Interface Card used within the Mark VIe Wind turbine control system. This PCB (Printed Circuit Board) plays a critical role in interfacing AE Bridge components and other control elements, ensuring signal integrity and system communication across the platform. Although part of GE’s now legacy product line, it remains in active use for replacement and maintenance of existing turbine control infrastructure.

Hardware Overview

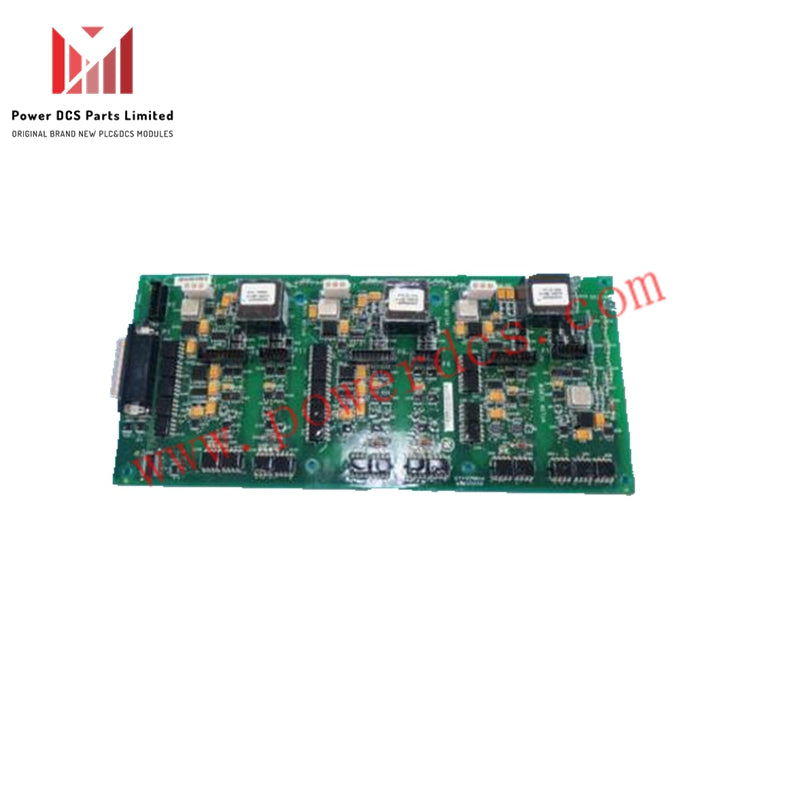

The IS210AEBIH1B features a long, narrow rectangular design with multiple mounting holes at its corners and body for flexible installation. The board is equipped with:

• One right-angle connector located along a short edge.

• Seven vertical pin connectors and several three-position plugs.

• Three integrated transformers for signal isolation or conversion.

• Stab-on connectors used for DC-link connections.

Additional standard board components include:

• Integrated Circuits (ICs)

• Diodes, Transistors

• Capacitors and Resistors

Each component is clearly marked with reference designators and, in some cases, unique part numbers for easy identification and servicing.

The board’s surface is protected by a conformal coating, applied uniformly to enhance durability in harsh environments by resisting moisture, contaminants, and corrosion.

The GE logo and etched part number on the board verify its authenticity and traceability.

Key Features

• Conformal Coated PCB: Enhanced protection against dust, moisture, and chemical exposure.

• Multiple Communication Interfaces: Ensures seamless data transfer within turbine systems.

• Component Markings: Easy maintenance through labeled parts and designators.

• Legacy Support: Designed as a replacement or upgrade option for existing Mark VIe Wind systems.

• Genuine GE Hardware: Manufactured and quality-tested in the United States.
