GE IS210AEDBH4AGD Mark VI GE Printed Circuit Board

About the IS210AEDBH4AGD

The IS210AEDBH4AGD is a bridge interface board manufactured by GE as part of the Mark VI control system, which is used for managing gas and steam turbines. This system includes an integrated HMI (Human-Machine Interface) that provides users with access to system data via dedicated software platforms, such as GE’s CIMPLICITY graphics.

Functional Overview

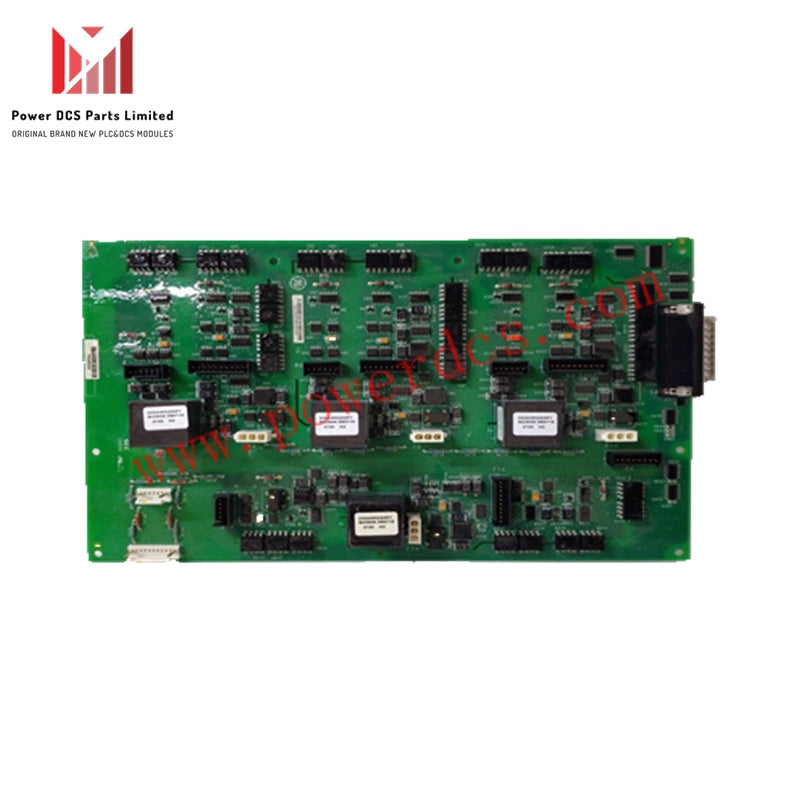

The IS210AEDBH4AGD serves as a DB Bridge Interface Card, featuring a robust set of components and connectors distributed across both the front and back surfaces of the board.

Front Surface Components:

• Connectors:

• One right-angled cable connector, labeled 574 9771-1 1301

• Two header connectors (6-position and 4-position), each with two vertical pins

• Nine vertical male pin connectors (ranging from 6 to 10 pins)

• Four 3-position plug connectors

• Electronic Components:

• Read-only chips

• Oscillating chips

• Additional specialized ICs

• Designed to meet high-reliability BIL (Basic Insulation Level) ratings

• Hipot rating: 5 kVAC

• Switching frequency: 10 kHz to 500 kHz

• Capacitors and resistors

• 20 metal film resistors

• Diodes and transistors

• Four encapsulated switch mode/pulse transformers from Bicron, marked B9178

• Over 175 integrated circuits, including:

Back Surface Components:

• Primarily consists of:

• Capacitors

• Resistors

• Diodes

• Transistors

Mechanical Features

• Drilled in nine locations for secure installation

• Multiple slots cut into the board, often housing transformers or ICs

• The board surface is labeled with several identification codes

Documentation & Support

For additional details on specifications, handling, and integration, refer to official GE documentation, such as manuals, datasheets, and user guides.
