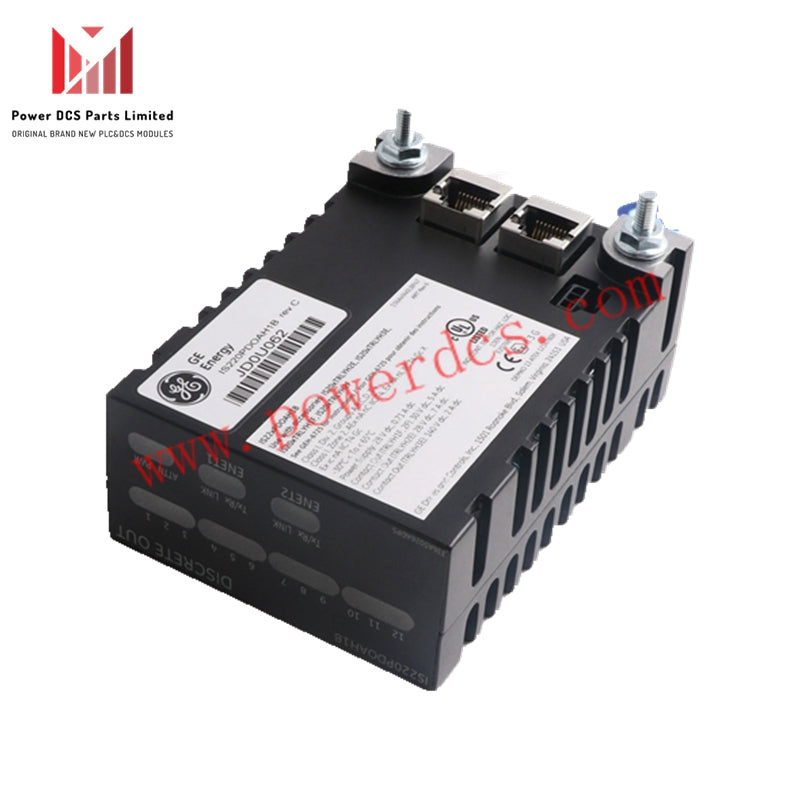

GE IS220PDOAH1B (IS230SNRLH2A) Discrete Output Pack

GE IS220PDOAH1B – Discrete Output Pack

Part Number: IS220PDOAH1B
Manufacturer: General Electric (GE)
Series: Mark VIe
Product Type: Discrete Output Pack
Condition: UNUSED / REBUILT
Availability: In Stock (Ships Same Day)
Repair Lead Time: 3–5 Days
Origin: United States (USA)
Dimensions: 8.26 cm (H) × 4.19 cm (W) × 12.1 cm (D)
Technology: Surface-mount

Product Overview

The IS220PDOAH1B is a Discrete Output Pack developed by General Electric as part of the Mark VIe Control System. It acts as a critical interface between one or two I/O Ethernet networks and a discrete output terminal board. The module is composed of two primary components:

• A processor board shared across all Mark VIe distributed I/O packs

• An acquisition board designed specifically for discrete output functionality

The IS220PDOAH1B controls up to 12 relays and integrates feedback from the terminal board, making it a robust solution for managing electrical outputs in high-performance industrial environments.

Key Features

• Relay Control: Supports control of up to 12 relays

• Relay Compatibility:

• Electromagnetic relays: Compatible with TRLYH1B, C, D, and F terminal boards

• Solid-state relays: Compatible with TRLYH1E boards

• Ethernet Connectivity: Dual RJ45 Ethernet ports for redundant, high-speed communication

• Power Input: 3-pin power connector with soft-start functionality and current limiting

• Output Connector: DC-37 pin connector for seamless connection to terminal board

• Diagnostics:

• Status-indication LEDs for system monitoring

• Infrared port for local diagnostics and configuration

• Relay and Coil Monitoring: 15 dedicated inputs for monitoring

Installation Instructions

1. Mount the Terminal Board: Install the appropriate terminal board (simplex or TMR configuration).

2. Connect PDOA Pack:

• Simplex: Use one PDOA pack

• TMR: Use three PDOA packs

3. Secure the Unit: Use threaded studs near the Ethernet ports with a bracket to avoid right-angle force on the DC-37 connector.

4. Ethernet Cabling:

• Use one or two Ethernet cables

• Recommended: Connect ENET1 to the R controller’s network

5. Apply Power: Connect the power cable (hot-pluggable due to soft-start)

6. Configure: Set up the I/O pack according to system requirements

Processor Specifications

• High-Speed Processor: Includes ample RAM and flash memory for data processing

• Dual 10/100 Mbps Ethernet Ports: Independent and redundant connections

• Watchdog Timer & Reset Circuit: Ensures system reliability

• Ambient Temperature Sensor: Monitors environmental conditions

• Infrared Serial Port: Enables local configuration and diagnostics

• LED Indicators: Real-time status and health monitoring

• Electronic ID Support: For both the processor board and connected boards

• Programmable Logic: Extensive logic support for acquisition customization

• Power Management:

• Soft-start input power connector with current limiting

• Local power supplies with sequencing and monitoring features
