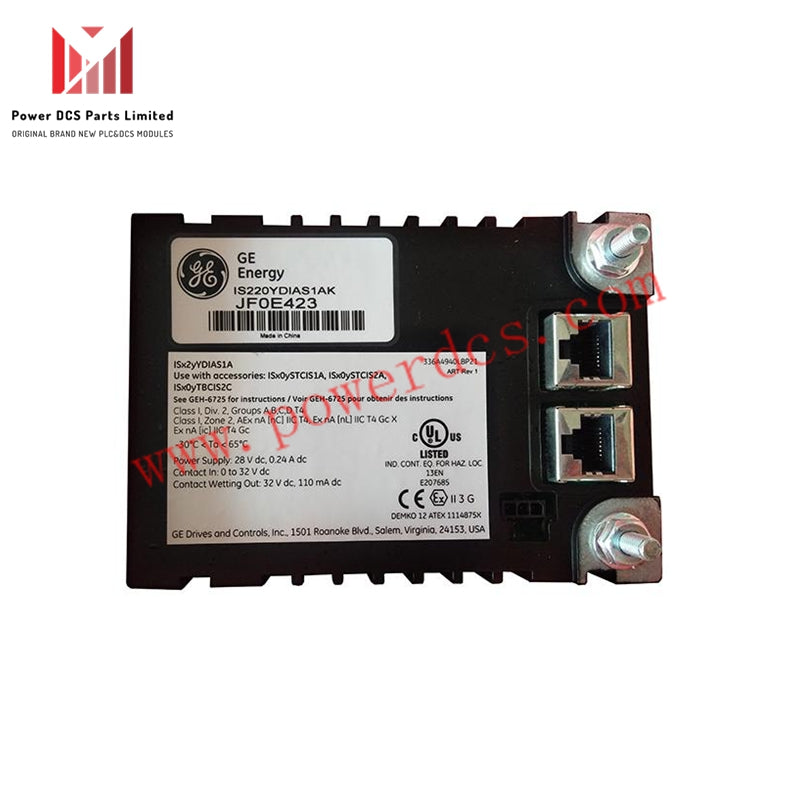

GE IS220YDIAS1AK: High-Performance I/O Module

IS220YDIAS1A Technical Specifications

Instruction Manual: GEH-6725
Part/Model Number: IS220YDIAS1A
Functional Description: Discrete Input Module
Original Manufacturer: GE Energy
Power Supply: 28 VDC
Functional Revision: A
Mark VI Series Grouping: Group 1

Frequently Asked Questions (FAQs)

• Are all the LED-type diagnostic indicators on the IS220YDIAS1A accompanied by factory-labeled nomenclature?
  Yes. Each individual LED diagnostic indicator on the IS220YDIAS1A front panel is accompanied by a factory-printed nomenclature label.

• Where was the IS220YDIAS1A circuit board module originally manufactured?
  This module was manufactured at General Electric’s Salem, Virginia facility.

About the IS220YDIAS1A

The IS220YDIAS1A is a Discrete Contact Input I/O module developed by General Electric for use in the Mark VIe Speedtronic control system, designed for gas and steam industrial turbine control. The Mark VIe Series, which includes this module, represents one of the latest and most advanced iterations of GE’s Speedtronic turbine control systems.

The Mark VIe series notably extends the application range beyond gas and steam turbines to include wind turbine automated drive assemblies, marking a significant advancement from the earlier Mark V series.

Hardware Tips and Specifications

• The IS220YDIAS1A is part of the Mark VIe control system and the Mark VIeS functional safety system.

• It is designed as an I/O pack to plug into compatible terminal boards such as IS200STCIS1A/2A, IS400STCIS1A/2A, or IS400TBCIS2C.

• The module features an onboard power supply with a nominal voltage of 28.0 VDC.

• Contact inputs and contact wetting outputs are rated for a maximum voltage of 32 VDC.

• The IS220YDIAS1A is both UL listed and CE marked, certified for use in hazardous and non-hazardous locations. Hazardous location ratings are detailed in GE documentation such as GEH-6725.

• Operating ambient temperature range is from -35°C to +65°C.

• It is important to note that the IS220YDIAS1A module represents a revised version of its original Mark VIe counterpart, with performance and dimensions adjusted according to the “A”-rated functional revision defined by GE.
