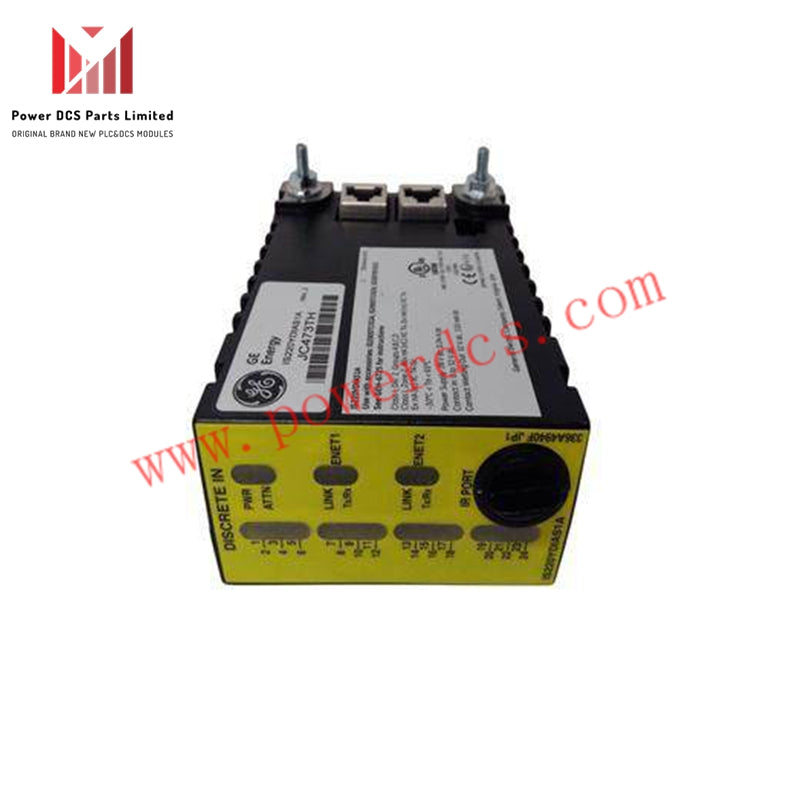

GE IS220YDOAS1AJ Discrete Contact Input I/O Module

GE IS220YDOAS1AJ Discrete Contact Input I/O Module

Manufacturer: GE General Electric
Part Number: IS220YDOAS1AJ
Product Type: Discrete Contact Input I/O Module
Series: Mark VIe
Stock: IN STOCK
Repair Time: 3-7 Days
Warranty: 1 Year
Dimensions: 138 mm x 86 mm x 56 mm
Weight: 2.00 lbs

Overview

The GE IS220YDOAS1AJ is a Discrete Contact Input I/O Module designed for seamless integration with GE’s Mark VIeS control system. It interfaces directly with discrete output terminal boards over an I/O Ethernet network, delivering high-speed signal processing and reliable control performance. Supporting relay actuation and smooth interfacing with TRLYS terminal boards, this module is well suited for demanding industrial automation environments.

Technical Specifications

Model Number: IS220YDOAS1AJ
Manufacturer: General Electric (GE)
Series: Mark VIe
Product Type: Discrete Contact Input I/O Module

Performance & Control

• Buffered Outputs: 14 channels

• Relay Control Capability: Up to 12 relays

• Ripple: 280 mV peak

• Maximum Output Current: 400 mA per channel

Power & Interfaces

• Power Requirements: +18 V DC to +32 V DC

• Interfaces:

• Dual RJ-45 Ethernet connectors

• DC-37 pin connector

Compatibility

• Terminal Boards: TRLYS1B, TRLYS1D, TRLYS1F

• Software: ControlST V04.03.18C

• Operating System: QNX Neutrino

Memory & Environmental Specifications

• Memory: 256 MB DDR SDRAM

• Operating Temperature: 0°C to 60°C

• Relative Humidity: 5% to 95%, non-condensing

Physical Specifications

• Dimensions: 138 mm x 86 mm x 56 mm

• Weight: 2 lbs
