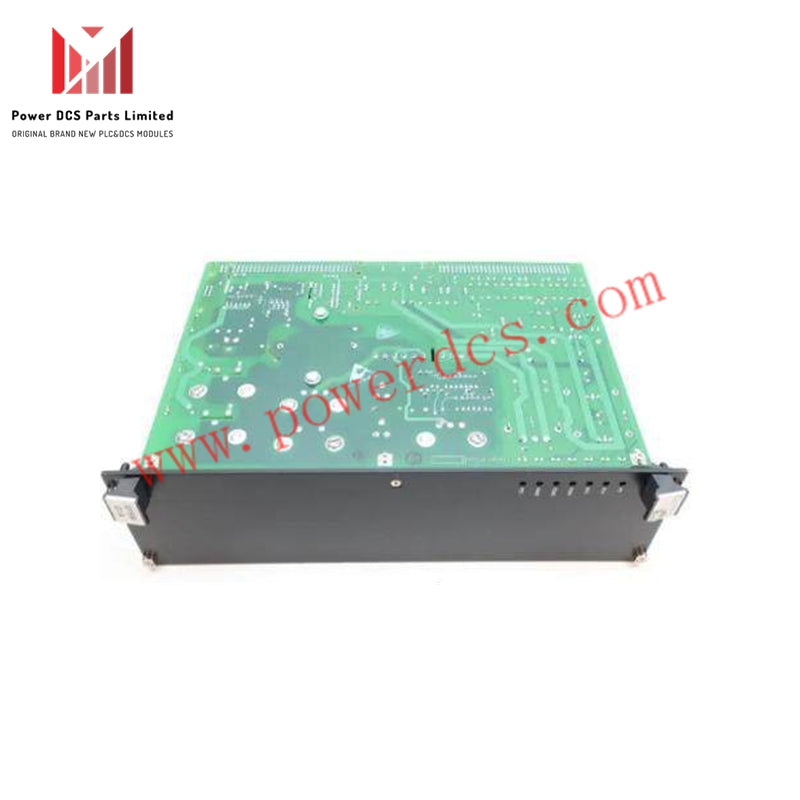

GE DS200SLCCG3AFG – LAN Communications Card (Mark V Series)

Manufacturer: GE General Electric
Series: Mark V
Part Number: DS200SLCCG3AFG
Functional Description: LAN Communications Card
Instruction Manual: GEI-100162
Functional Acronym: SLCC
PCB Coating: Normal Coating
Revision Quantity: 3 Revisions
Backwards Compatibility: Compatible with 1st two revisions
Assembly Type: Normal Assembly

About the DS200SLCCG3AFG

The DS200SLCCG3AFG is a LAN (Local Area Network) communication board manufactured by General Electric for their Mark V series of drive boards. These boards are used in the management and control systems of compatible wind, steam, and gas turbine control systems.

Designed to be installed in a variety of GE drives and exciters, the DS200SLCCG3AFG card provides the necessary interface for LAN network connections within the drive cabinet.

While this board is defined as a LAN Communication Card in its own right, it is not the original LAN communication board for the Mark V Series—that distinction belongs to the DS200SLCCG3 parent board, which lacks the three product revisions found on the DS200SLCCG3AFG.

Hardware Features & Specifications

• Equipped with an integrated LAN Control Processor (LCP) that filters all signals sent to the host drive.

• Program memory is stored in two attachable EPROM memory cartridges mounted on the board.

• The LCP interfaces with the drive’s control board through dual-ported RAM, which facilitates data exchange.

• Supports both isolated and non-isolated circuits for communication signals.

• Includes an attachable alphanumeric keypad for easy access to system diagnostics and control settings.

• Contains various Mark V Series-standardized hardware components for voltage limitation and suppression, including rectifiers, diodes, and capacitors.

• Protected by a normal style PCB coating, offering insulation and wear protection; this is indicated in the board’s functional product number.
