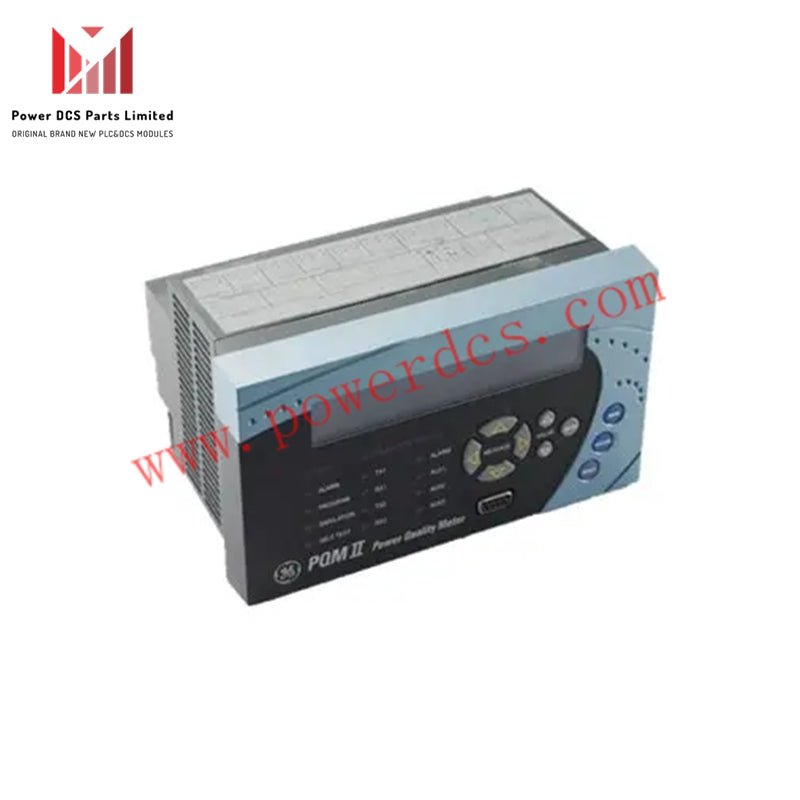

GE General Electric PQMII-C-A

Power Quality Meter
Series: GE Speedtronic Mark V

Product Details

• Manufacturer: GE General Electric

• Part Number: PQMII-C-A

• Product Type: Power Quality Meter

• Series: GE Speedtronic Mark V

• Stock Status: In Stock

• Repair Time: 3–7 Days

• Rush Repair: 24–48 Hours

• Warranty: 3 Years

• Dimensions: 8.5″ × 6″ × 6″ (216 mm × 152 mm × 152 mm)

• Weight: 5 lbs (2.3 kg)

Overview

The GE PQMII-C-A is a panel-mount power quality meter designed for comprehensive monitoring of electrical power systems. It measures and records a wide range of power quality parameters essential for ensuring system reliability and performance.

Measured Parameters

• Voltage:

• RMS voltage

• Phase-to-neutral voltage

• Phase-to-phase voltage

• Voltage Total Harmonic Distortion (THD)

• Voltage sags and swells

• Current:

• RMS current

• Phase current

• Crest factor

• Power Factor and Harmonics

• Power:

• Real power

• Reactive power

• Apparent power

• Power factor

• Energy:

• Energy consumption

• Demand

• Frequency:

• Frequency

• Rate of change of frequency (ROCOF)

• Waveform:

• Waveform capture and analysis

Advanced Features

• Data Logging:

• Logs data to internal memory or external SD card

• Configurable logging intervals from seconds to hours

• Alarming:

• Configurable alarms for voltage sags, swells, harmonics, and more

• Outputs alarms to relays or SCADA systems

• Communication:

• Supports Modbus RTU, DNP3, and Ethernet protocols

• Seamless integration with SCADA and other control systems

Applications

• Industrial:
  Manufacturing plants, oil and gas facilities, mining operations

• Commercial:
  Data centers, office buildings, hospitals

• Utility:
  Substations, power distribution networks

• Renewable Energy:
  Solar power plants, wind farms

Technical Specifications

Benefits

• Improved Power Quality:
  Detect and troubleshoot issues to prevent equipment damage and downtime.

• Reduced Energy Costs:
  Identify and correct power factor problems to increase energy efficiency.

• Enhanced Regulatory Compliance:
  Provide detailed data to demonstrate compliance with power quality standards.

• Minimized Downtime:
  Early identification and troubleshooting of power system problems to avoid outages.
