GE General Electric PQMII

Power Quality Meter

Product Details

• Manufacturer: GE General Electric

• Part Number: PQMII

• Product Type: Power Quality Meter

• Stock Status: In Stock

• Repair Time: 3–7 Days

• Warranty: 1 Year

• Dimensions: 166 mm × 85 mm × 35 mm

• Weight: 5.00 lbs

Overview

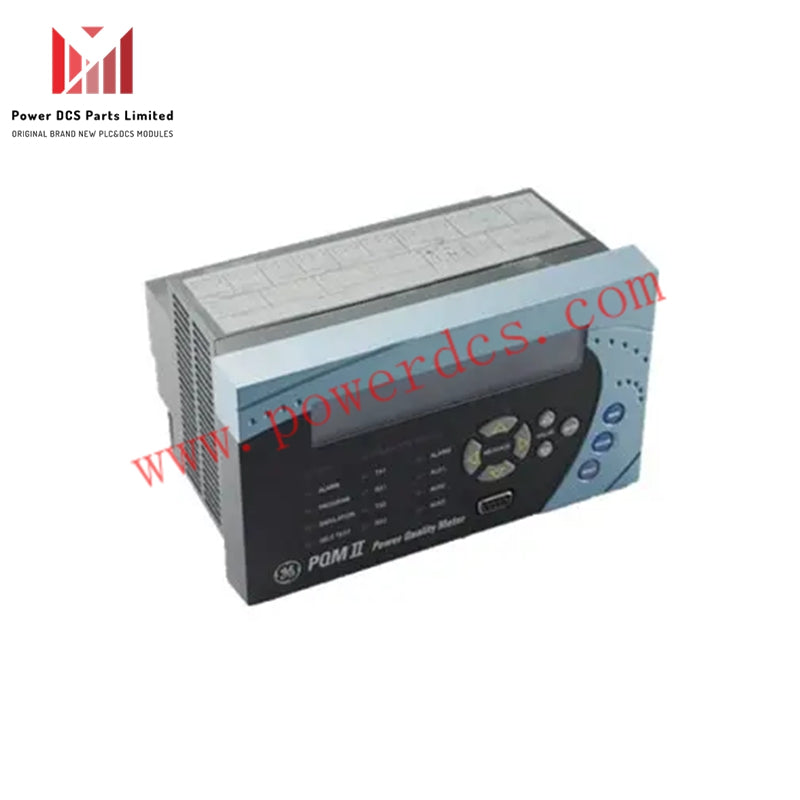

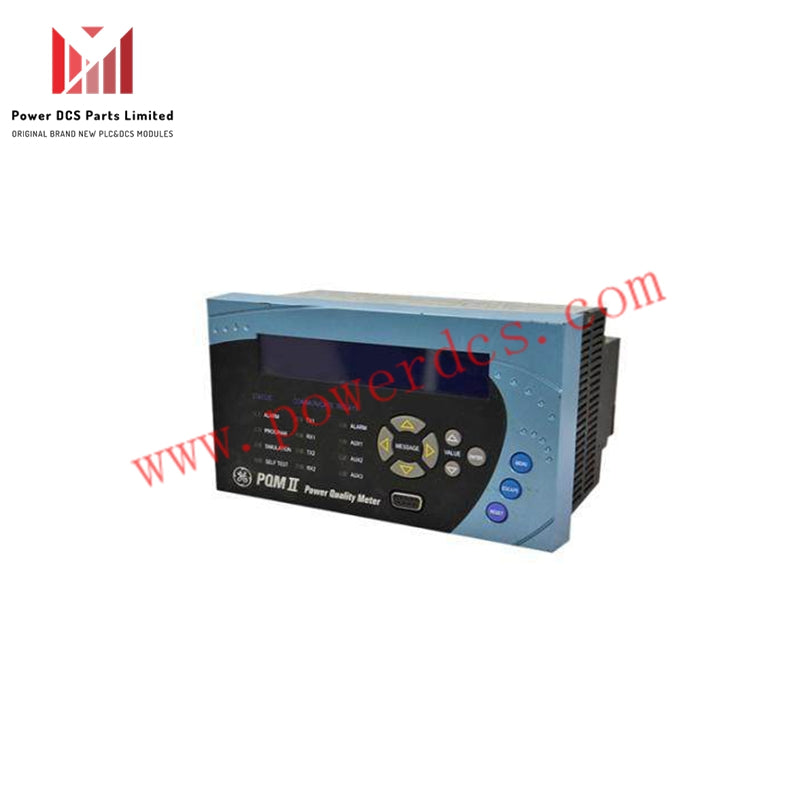

The GE PQMII-A is a high-performance Power Quality Meter designed for continuous real-time monitoring of three-phase electrical systems. It tracks vital electrical parameters including current, voltage, frequency, energy, and power factor. Ideal for industrial and commercial environments requiring precise power quality analysis, this rugged device ensures reliable operation even in harsh conditions. Operators can quickly detect, analyze, and respond to power quality issues to maintain system efficiency and safety.

Technical Specifications

Voltage Measurement

• Supports low and medium voltage systems

• Measures 0 to 600 V AC (single or three-phase)

Current Measurement

• Monitors feeders, transformers, motors, and generators

• Accepts 1A or 5A current transformer (CT) inputs

• Measures up to 5000 A with external CTs

Power Analysis

• Calculates real, reactive, and apparent power

• Measures power factor and total energy consumption

Harmonic Analysis

• Detects harmonics up to the 63rd order

• Enables comprehensive power quality diagnostics

Event and Data Logging

• Stores up to 150 recorded events

• Logs up to 98,000 data points

Waveform Capture

• Captures waveform snapshots for fault analysis

• Supports detailed disturbance recording

Communication Interfaces

• 1 front RS232 serial port

• 2 rear RS485 ports

• Supports Modbus and DNP 3.0 protocols

• Ethernet available via MultiNet adapter

Display and User Interface

• 40-character large illuminated display

• Keypad for intuitive on-site configuration

Power Supply

• Accepts 90–300 V DC or 70–265 V AC

• Operates at 50/60 Hz

• Typical power consumption: 20 VA

Measurement Accuracy

• Voltage and current accuracy: ±0.2% to ±0.25%

• Frequency range: 45 Hz to 65 Hz

Output Relays

• Includes 4 programmable output relays for control, alarms, or automation

Physical Properties

• Weight: 5.00 lbs

• Operating Temperature: -10°C to +60°C
