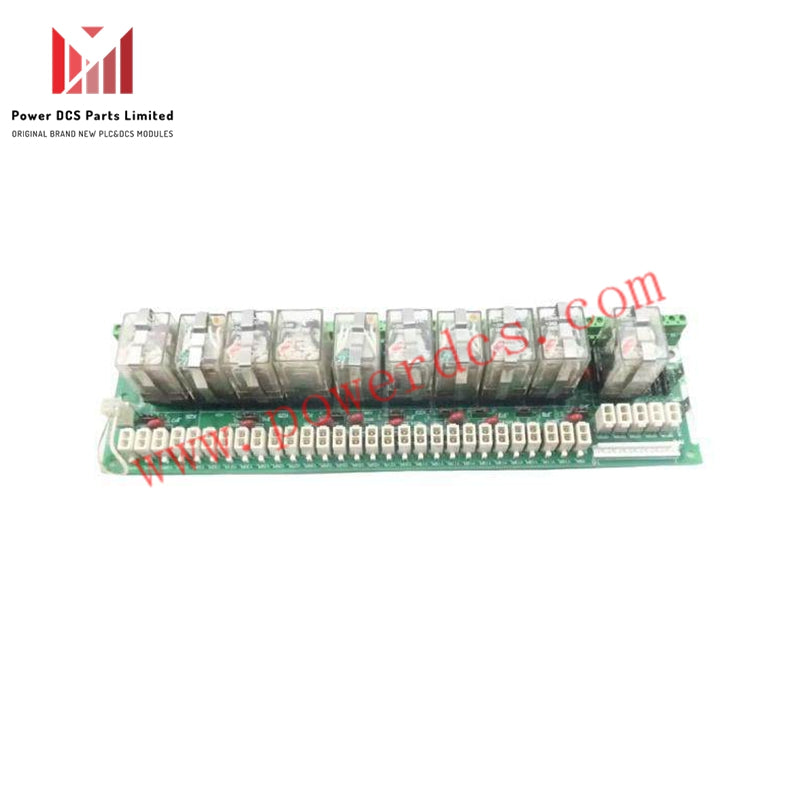

General Electric DS200RTBAG2AHC Relay Terminal Board

GE DS200RTBAG2AHC – Relay Terminal Board (Mark V Series)

OEM: General Electric
Series: Mark V Speedtronic
Part Number: DS200RTBAG2AHC
Functional Acronym: RTBA
Revisions: 3 total (backward-compatible with the first two)
Group Classification: Group 2 – Mark V Series

Product Overview

The GE DS200RTBAG2AHC is a Relay Terminal Board designed for use in GE's Mark V Speedtronic Turbine Control System, which supports gas, steam, and wind turbine automation. Though the Mark V is considered a legacy system, it was one of the final GE turbine control systems to utilize the patented Speedtronic technology.

This relay board is specifically designed to provide 10 additional relay positions within the control cabinet. It supports both LAN and remote I/O terminal control, making it highly versatile for various GE excitation systems or drive applications.

Note: DS200RTBAG2AHC is an enhanced version of the original DS200RTBAG2, incorporating three significant revisions to improve performance and compatibility.

Key Features and Components

• Relay Types & Count:

• 7 x DPDT (Double Pole Double Throw) relays – each with 2 Form-C contacts

• 3 x 4PDT (Four Pole Double Throw) relays

• Relay Protection:

• Each relay is protected by a 130V AC metal oxide varistor (MOV) – removable and replaceable

• Coil Voltage:

• 24 VDC (for other voltages, consider RTBAG1 = 110 VDC or RTBAG3 = 115 VAC)

• Status Indicators:

• Each relay includes an individual diagnostic state lamp that illuminates when the relay is energized

• Connectors:

• 2 stab connectors

• 1 x 16-pin connector

• 1 x 2-pin connector for inter-board connections

• Jumpers:

• Multiple berg-type jumper pins for board configuration and customization

Technical Specifications Summary

Installation & Safety Notes

• Power Off Before Handling:
  Always remove power before performing installation or maintenance. Live connections pose risks of electric shock or damage.

• Static-Sensitive Component:
  Handle with ESD protection. AX Control ships all boards in anti-static packaging.

• Refer to OEM Manual:
  Review the original GE documentation for proper handling, installation, and configuration instructions.

Additional Notes

• Legacy Product: Though production has been discontinued, the Mark V remains widely supported in the aftermarket and refurbishment space.

• Fast Shipping: AX Control maintains a large in-stock inventory of GE components in North Carolina, with most orders shipped same day if placed before 3 PM.
