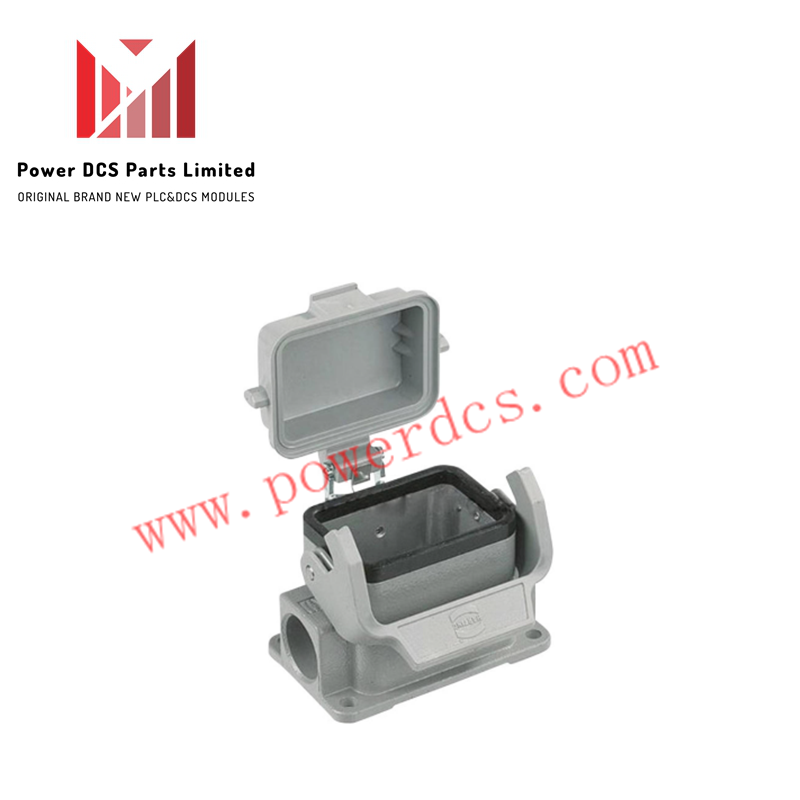

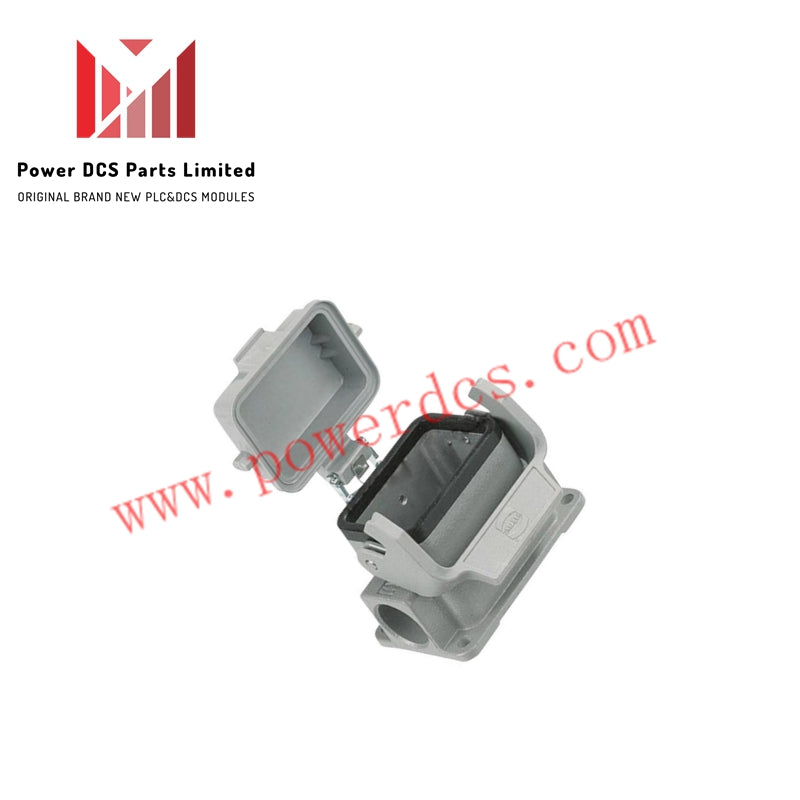

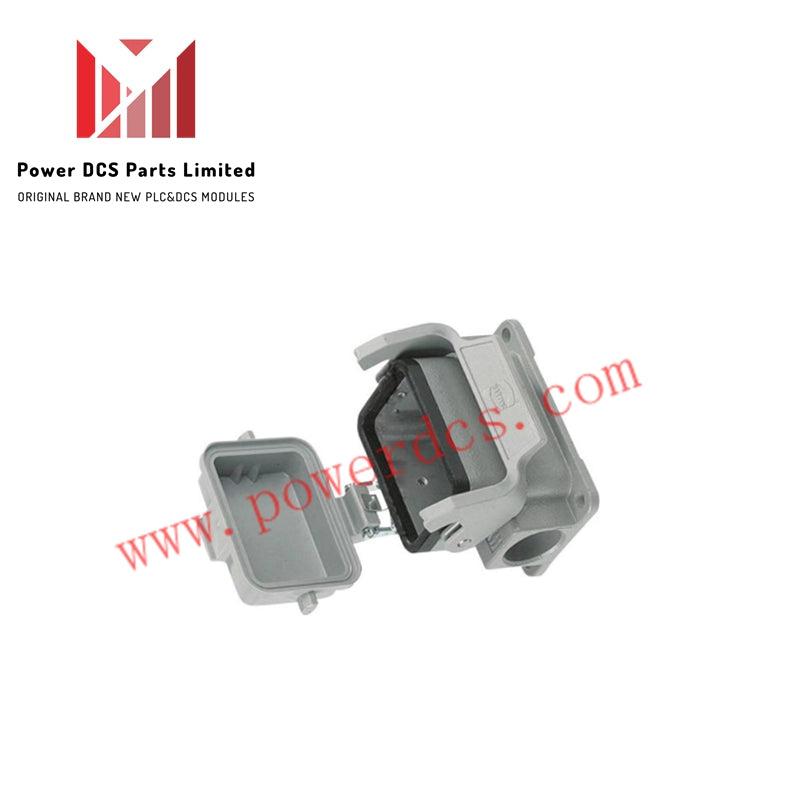

HARTING HAN 6 B-ASG1-LB-K-16 Socket Enclosure

Description

The HARTING HAN 6 B-ASG1-LB-K-16 is a surface-mounted connector housing designed for industrial electrical interfaces. Built in Germany, it offers secure cable entry and robust protection in harsh environments.

Specifications

• Model: HAN 6 B-ASG1-LB-K-16

• Manufacturer: HARTING

• Type: Surface-mounted connector housing

• Country of Origin: Germany

• Size: 6B low-profile format

• Cable Entry: Side entry with 1× M20 thread

• Locking Mechanism: Single stainless steel locking lever

• Housing Material: Die-cast aluminum, uncoated

• Seal Material: FPM (fluoroelastomer), red

• Protection Rating: IP65 (IEC 60529)

• Operating Temperature: −40°C to +200°C

• Dimensions: Approx. 239.56 g

Features

• Defined Type: Surface-mounted housing for industrial connector systems

• Durable Build: Die-cast aluminum body resists corrosion and mechanical stress

• Secure Locking: Stainless steel lever ensures tight and stable closure

• Flexible Entry: Side-mounted M20 thread simplifies cable routing

• High Protection: IP65 rating guards against dust and water ingress

• Wide Temperature Range: Operates reliably from −40°C to +200°C

• German Precision: Engineered by HARTING for long-term industrial performance
