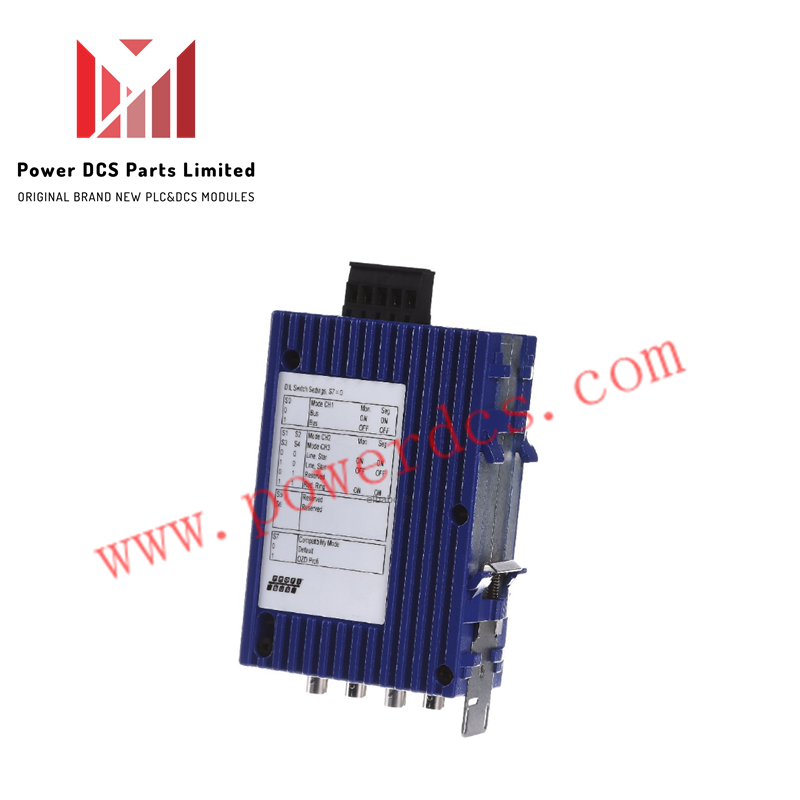

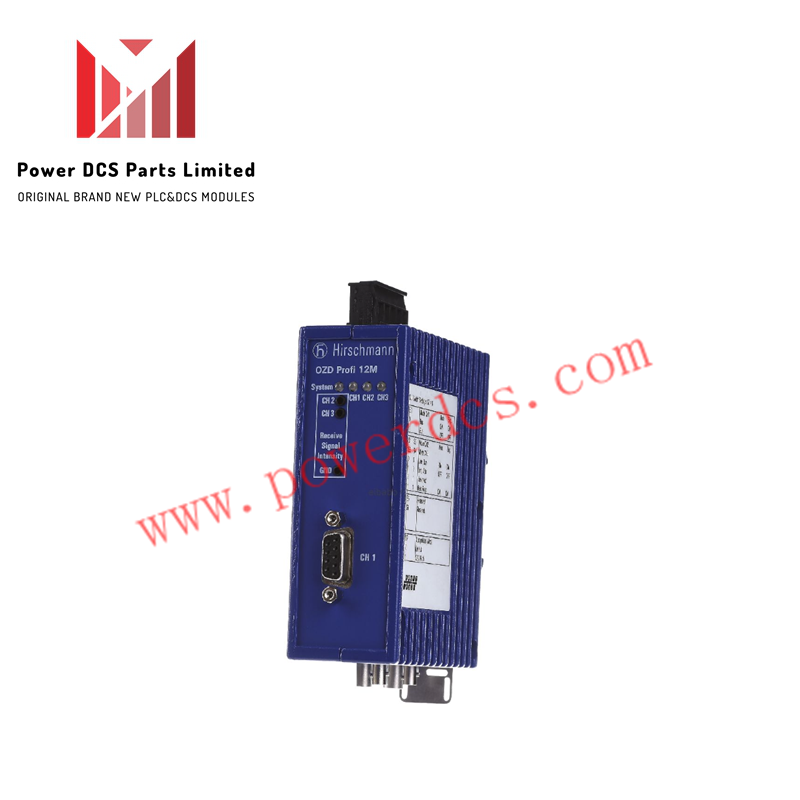

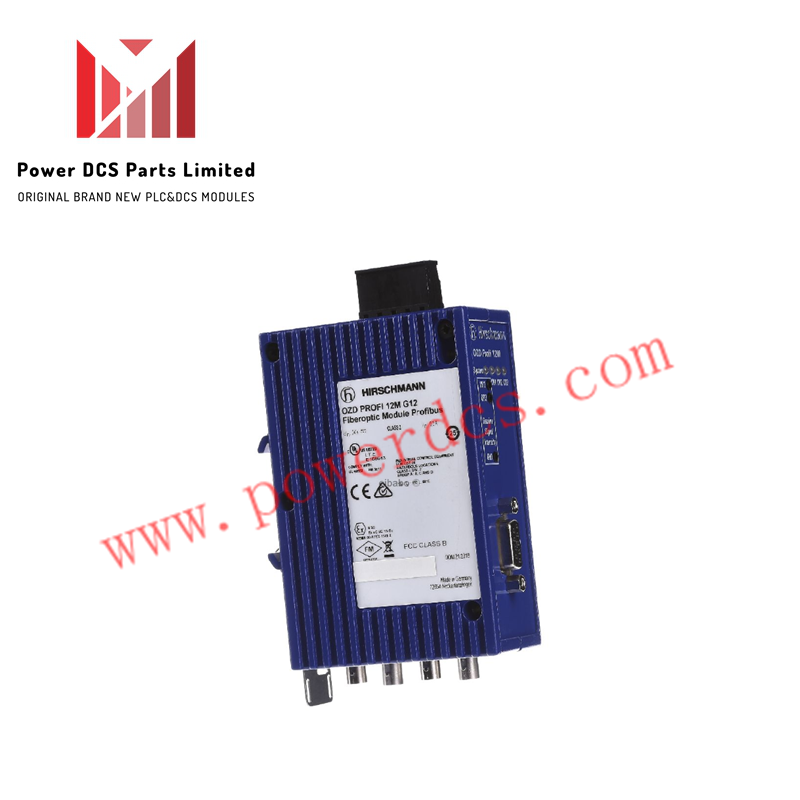

HIRSCHMANN OZD PROFI 12M G12 Interface Converter Electrical/Optica

Description

The HIRSCHMANN OZD PROFI 12M G12 is a fiber optic repeater designed for PROFIBUS networks. It converts electrical signals to optical and extends communication distances in industrial automation systems.

Specifications

• Model: OZD PROFI 12M G12

• Manufacturer: HIRSCHMANN (Belden Group)

• Type: Fiber optic repeater for PROFIBUS

• Country of Origin: Germany

• Power Supply: 24V DC nominal (range: 18–32V DC)

• Power Consumption: Max. 4.5 W

• Current Draw: Max. 190 mA

• Electrical Interface: 1 × Sub-D 9-pin (female), PROFIBUS compliant

• Optical Interfaces: 2 × BFOC 2.5 (STR) connectors

• Supported Fiber Types:

  • Single-mode 9/125 µm

  • Multimode 50/125 µm, 62.5/125 µm

  • HCS 200/230 µm

• Max Transmission Distance: Up to 3000 m (depending on fiber type)

• Operating Temperature: 0°C to +60°C

• Storage Temperature: −40°C to +70°C

• Humidity: 10–95% (non-condensing)

• Mounting: DIN rail

• Protection Class: IP40

• Dimensions: Approx. 135 mm × 50 mm × 120 mm

Features

• Signal Conversion: Converts PROFIBUS electrical signals to optical for long-distance transmission

• Wide Fiber Compatibility: Supports multiple fiber types including single-mode and multimode

• Redundancy Support: HIPER-Ring topology and dual 24V DC feed for fault tolerance

• Compact Design: DIN rail mountable for easy integration into control cabinets

• Industrial Reliability: Operates in demanding environments with IP40 protection

• Flexible Interface: Includes Sub-D and BFOC connectors for seamless PROFIBUS integration

• German Engineering: Built by HIRSCHMANN for high-performance industrial communication
